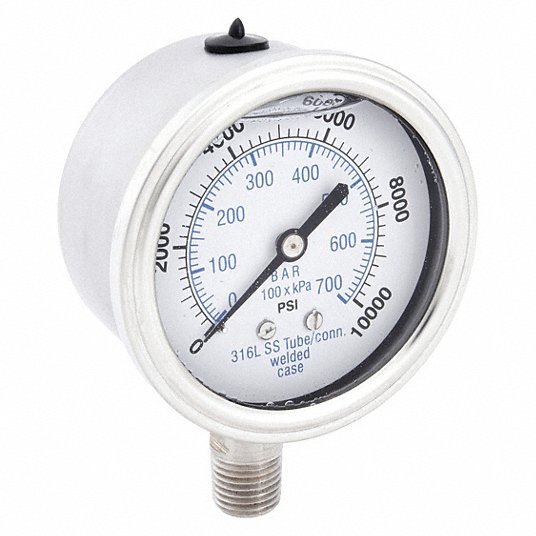

PIC PRO-301L-254U-01 Industrial Pressure Gauge 0 psi to 10,000 psi, 2 1/2 in Dial, 1/4 in NPT Male, Bottom
Original price
$73.50
-
Original price
$73.50
Original price
$73.50
$73.50
-
$73.50
Current price
$73.50
Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 10,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
| Accuracy | +/-2-1-2% |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Application | General Purpose |
| Gauge Case Material | Stainless Steel |
| Series | 300 |
| Lens Material | Polycarbonate |
| Primary Pressure Range | 0 to 10,000 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Liquid-Filled Case | Yes |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Gauge Filled With | Glycerin |
| Graduations | 2000 psi |
| Gauge Primary Range Numbered Graduations | 2000 |
| Case Color | Metallic |
| Includes | Vent Plug |
| Gauge Application | In Applications Where Vibration or Pulsation is Present |
| Gauge Primary Range Smallest Graduation | 200 |
| Calibration Certificate Included | No |
| For Use With | Media Compatible with 316L Stainless Steel, Medium to High Pressures |
| Smallest Graduation | 200 psi |
| Case Material | Stainless Steel |
| Socket Material | 316 Stainless Steel |
| Connection Type | MNPT |
| Standards | ASME |
| Wetted Materials | Stainless Steel |
| Cleaned for Oxygen Service | No |
| Accuracy Grade | ASME B40.100 Grade A |
| Field Fillable | No |
| Dial Color | White |
| Freeze Resistant Movement | No |
| Includes Calibration Certificate | No |
| Non-Sparking | No |
| Dial Face Material | Stainless Steel |
| Primary Scale Numeric Increments | 2,000 |
| Process Connection Gender | Male |
| Includes Mounting Hardware | No |
| Scale Type | Dual |
| Dry Dampening Feature | None |
| Secondary Pressure Range | 0 to 689 |
| Includes Vent Plug | Yes |
| Sensor Material | 316 Stainless Steel |
| Gauge Case Liquid | Glycerin |
| Removable Bezel | No |
| Vibration Resistance | Liquid-Filled |
| Pointer Color | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Bezel Material | Stainless Steel |
| Pressure Range Type | Pressure |
| Bezel Mounting Type | Fixed |
| Accuracy Scale | Mid-Scale |
| Secondary Scale Units | bar |
| Pointer Material | Aluminum |
| Ambient Operating Temperature Range | 30 to 160 °F |
| Primary Scale Minor Graduations | 200 |
| Maximum Pressure | 10,000 |
| Operating Temperature Range | 30 to 160 °F |
| Secondary Scale Pressure Measurement - Maximum | 689 bar |
| Secondary Scale Vacuum Measurement - Minimum | 0 bar |
| Primary Scale Vacuum Measurement - Minimum | 0 psi |
| Compatible with Series | PRO-300 |
| Process Media Temperature - Minimum | 32 °F |
| Operating Temperature - Maximum | 160 °F |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Compatible with Brand | Universal |
| Operating Temperature - Minimum | 30 °F |
| Case Liquid | Glycerin |
| Primary Scale Vacuum Measurement - Maximum | 10,000 psi |
| Secondary Scale Pressure Measurement - Minimum | 0 bar |
| NEMA Enclosure Rating | No Enclosure |
| Secondary Scale Vacuum Measurement - Maximum | 700 bar |
| Process Media Temperature - Maximum | 160 °F |
| Primary Scale Pressure Measurement - Maximum | 10,000 psi |
