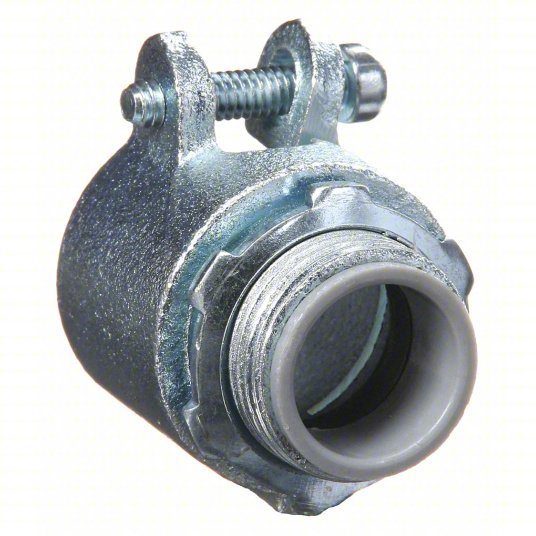

Raco 3302 Straight Connector Squeeze Clamp Style Iron, 1/2 in Trade Size, 1/2 in MNPT, Insulated

Straight Connector - Squeeze Clamp Style, Box Connection 1/2 in MNPT, Trade Size 1/2 in, Iron, Insulated Yes, Gray, Yellow, For Use With AC, Flexible Conduit, MC, cULus Listed, Connector Style Straight, Connection Orientation Straight, Squeeze Clamp, Compatible Knockout Trade Size 1/2 in, Connection Type Squeeze, For Maximum Cable OD 0.91 in, For Minimum Cable OD 0.86 in, Overall Height 1 5/8 in, Overall Length 1 3/8 in, Overall Width 1 1/4 in, Reduction Size 1 1/4 in to 1/2 in

Conduit Fitting Type	Connector
Connector Type	Straight
Material	Iron
Color	Gray, Yellow
Description/Special Features	Squeeze Clamp
Material - Cable Connector	Malleable Iron
Box Connection	Threaded Electrical Box Connection
Cable Clamping Method	Squeeze Clamp
Use With - Metallic Building Cable	AC, Flexible Conduit, MC
Fitting Sub-Category	Straight Connectors
Item - Building Cable Connector	Metallic Sheath Cable Connector
Insulated	Yes
Standards	cULus Listed
Cable Opening Min.	0.856 in
Style - Connector	Straight
Cable Opening Max.	0.91 in
Application	Commercial Fittings
For Use With	AC, Flexible Conduit, MC
Connection	Squeeze
Insulation Type	Insulated
For Conduit Type	Flexible Metal Conduit
Features	All malleable construction ensures mechanical protection for the raceway; Electro zinc plated for added corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; Additional sizes available
For Minimum Cable OD	0.86 in
Weight	1.21 lb
Connection Type	Snap-In Box Connection
For Maximum Cable OD	0.91 in
Connector Style	Straight
Resistance Properties	Corrosion Resistant
Connection Orientation	Straight
Fitting Type	Connectors
Conduit Type	Flexible Metal Conduit
Certified Listed	cULus Listed
