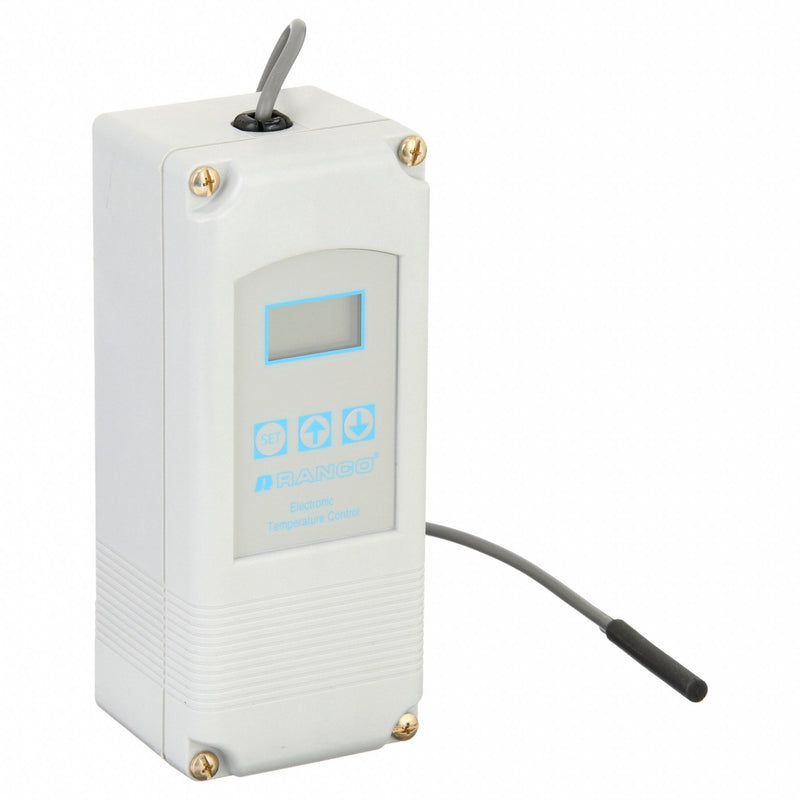

Ranco ETC-111000-000 Temperature Control, Single Stages, Heat or Cool, -30°F to 220°F, Digital, 1, SPDT, Universal
UPC: 662013924393 | Harmonization / Schedule B : 9032.10.0030
Country of Origin: Mexico | Shipping Weight: 1.2 lbs
Original price
$168.93
-
Original price
$168.93
Original price
$168.93
$168.93
-
$168.93
Current price
$168.93
Temperature Control, Temperature Control Function Heat or Cool, Product Type Temperature Control, Number of Stages Single, Contact Form SPDT, NEMA Rating 1, IP Rating IP67, Maximum Control Temperature 220 Degrees F, Minimum Control Temperature -30 Degrees F, Maximum Temperature Differential Setting 30 Degrees F, Minimum Temperature Differential Setting 1 Degrees F, Display Type Digital, Input Voltage 120V AC, 208V AC, 240V AC, Variable Output Voltage No, Overall Height 6 1/2 in
| Height | 6 1/2 in |
|---|---|
| Depth | 2 1/2 in |
| Width | 2 3/4 in |
| Sensing Bulb Length | 2 in |
| Capillary Length | 96" |
| Overall Height | 6 1/2 in |
| Sensing Bulb Diameter | 1/4 in |
| Overall Width | 2 3/4 in |
| Overall Depth | 2 1/2 in |
| Type | Electronic Temperature Control |
| Sensor Type | Thermistor |
| Voltage | 120/208/240VAC |
| For Use With | Cooling, Heating, Refrigeration |
| Includes | 8 ft Foot Cable |
| Input Voltage | 120V AC, 208V AC, 240V AC |
| Standards | Class 4813 02, CSA Certified LR68340, UL File E94419, UL Guide No. XAPX |
| Number of Relay Inputs | 1 |
| Number of Relay Outputs | 1 |
| Switch Action | Close on Rise, Open on Rise |
| Display Type | Digital |
| Application | Cooling Control, Heating Control |
| Number of Stages | Single |
| Mounting | Vertical or Horizontal |
| Display | LCD |
| Number of SPDT Outputs | 1 |
| Product Type | Temperature Control |
| Ambient Humidity | 0% to 95% RH |
| Housing Material | Polyethilene |
| NEMA Rating | 1 |
| Housing Color | Gray |
| Full Load Current @ 120V AC | 16 A |
| Horsepower @ 120V AC | 1 hp |
| IP Rating | IP67 |
| Maximum Control Temperature | 220 Degrees F |
| Temperature Control Function | Heat or Cool |
| Horsepower @ 240V AC | 1 hp |
| Maximum Temperature Differential Setting | 30 Degrees F |
| Number of Sensors Included | 1 |
| Variable Output Voltage | No |
| Contact Form | SPDT |
| Minimum Control Temperature | -30 Degrees F |
| Number of Sensor Inputs | 1 |
| Power Consumption | 100 MVA |
| Resistive Load Current @ 120V | 96 A |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Resistive Load Current @ 240V | 48 A |
| Full Load Current @ 240V AC | 8 A |
| Compatible with Series | Universal |
| Country of Origin | Mexico |
