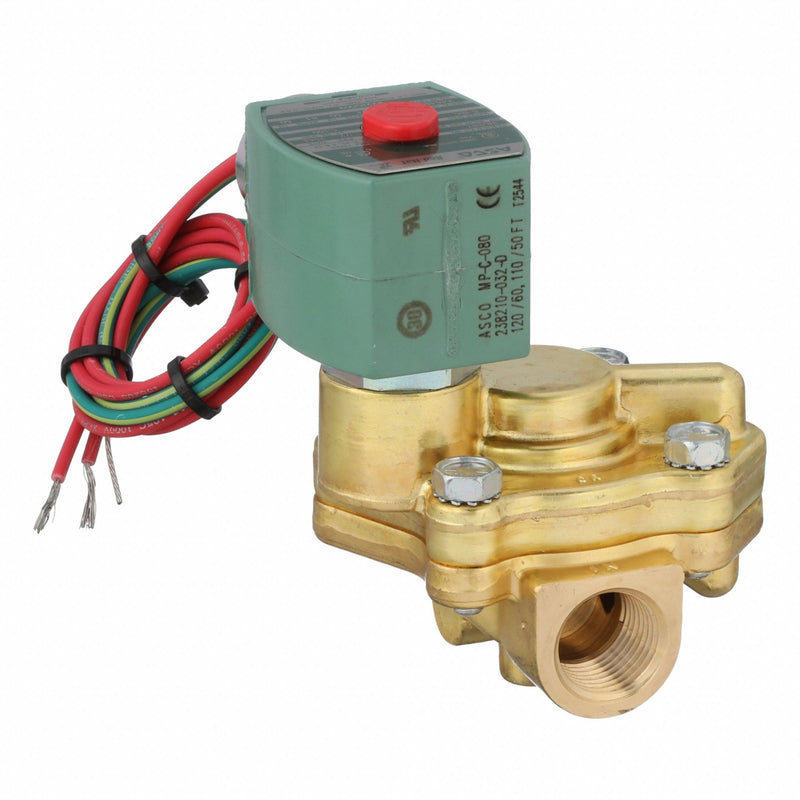

Redhat 8221G003 Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing
Original price
$485.27
-
Original price
$485.27
Original price
$485.27
$485.27
-
$485.27
Current price
$485.27
Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Slow-Closing, Nominal Pipe Size 1/2 in, Orifice Diameter 9/16 in, Body Material Brass, Coefficient of Volume (Cv) 3.5, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable.
| For Media | Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 110V AC; 120V AC |
| Valve Type | Slow-Closing |
| Operation Type | Pilot Operated |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 150 psi Hot Water, Water |
| Operating Pressure Differential - Minimum | 5 psi Water |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Coil Enclosure | Without Junction Box, Watertight |
| Valve Design | 2-Way/2-Position |
| IP Rating | IP66 |
| Coil Insulation Class | F |
| Body Material | Brass |
| Application | Autoclave, Laundry, Molding, Sterilizers |
| Standards | CSA, UL Listed |
| Wattage | 6.1 W |
| Includes Seal | Yes |
| Environmental Rating | Corrosive, Hazardous, Indoor, Outdoor |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Fluid Temperature - Maximum | 180 Degrees F |
| Includes Coil | Yes |
| Thread Type | NPT |
| Coefficient of Volume (Cv) | 3.5 |
| Frequency | 50 Hz, 60 Hz |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Operating Pressure Differential Water - Maximum | 150 psi |
| Operating Pressure Differential Hot Water - Maximum | 150 psi |
| Operating Pressure Differential Air/Inert Gas - Maximum | Not Rated |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Valve Positions | 2-Position |
| Orifice Diameter | 9/16 in |
| Overall Height | 4-3/8 in |
| Overall Length | 2-15/16 in |
| Overall Width | 3-7/16 in |
| Country of Origin | Mexico |
