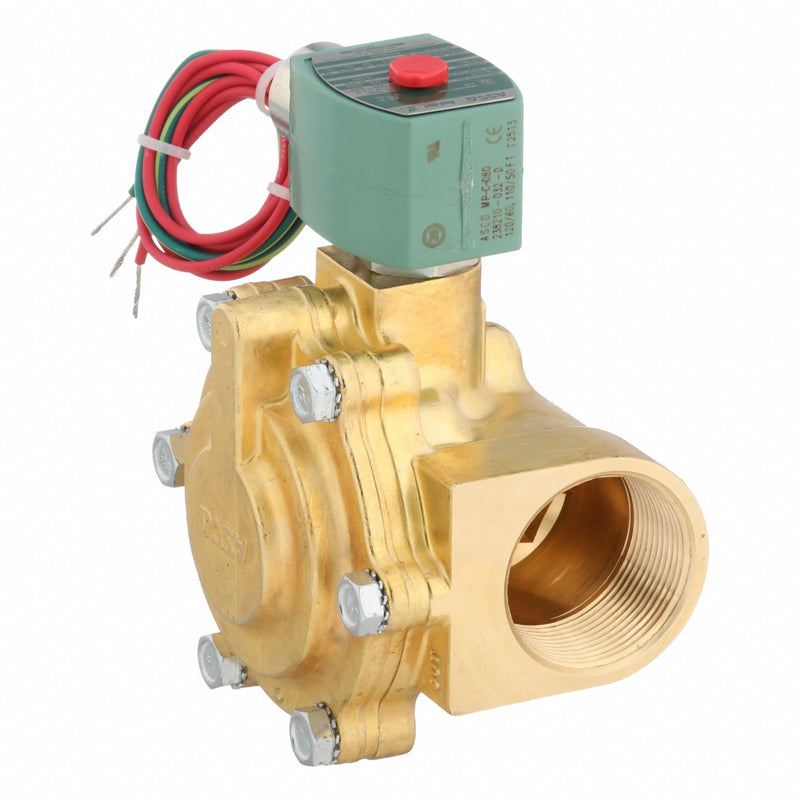

Redhat 8221G011 Solenoid Valve, 2-Way, Normally Closed, 1 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing
Original price
$1,774.75
-
Original price
$1,774.75
Original price
$1,774.75
$1,774.75
-
$1,774.75
Current price
$1,774.75
The ASCO 8221G011 Solenoid Valve is a 2-Way/2-Position, pilot-operated valve designed to control the flow of water with a normally closed configuration. It is constructed with a brass body and features a slow-closing mechanism. This valve operates at 120V AC with a coil wattage of 6.1 W and includes both the coil and seals for installation. The valve also features an IP66-rated enclosure without a junction box, rated for use in corrosive, hazardous, indoor, and outdoor environments.
| For Media | Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 110V AC; 120V AC |
| Valve Type | Slow-Closing |
| Operation Type | Pilot Operated |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 150 psi Hot Water, Water |
| Operating Pressure Differential - Minimum | 5 psi Water |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| IP Rating | IP66 |
| Coil Insulation Class | F |
| Coil Enclosure | Without Junction Box, Watertight |
| Body Material | Brass |
| Valve Design | 2-Way/2-Position |
| Application | Autoclave, Laundry, Molding, Sterilizers |
| Standards | CSA, UL Listed |
| Environmental Rating | Corrosive, Hazardous, Indoor, Outdoor |
| Includes Seal | Yes |
| Operating Pressure Differential Hot Water - Maximum | 150 psi |
| Fluid Temperature - Maximum | 180 Degrees F |
| Coefficient of Volume (Cv) | 3 |
| Includes Coil | Yes |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Valve Positions | 2-Position |
| Wattage | 6.1 W |
| Operating Pressure Differential Air/Inert Gas - Maximum | Not Rated |
| Operating Pressure Differential Water - Maximum | 150 psi |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Frequency | 50 Hz, 60 Hz |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Thread Type | NPT |
| Orifice Diameter | 1-1/4 in |
| Overall Height | 6-1/4 in |
| Overall Length | 4-3/8 in |
| Overall Width | 4-1/4 in |
| Country of Origin | Mexico |
