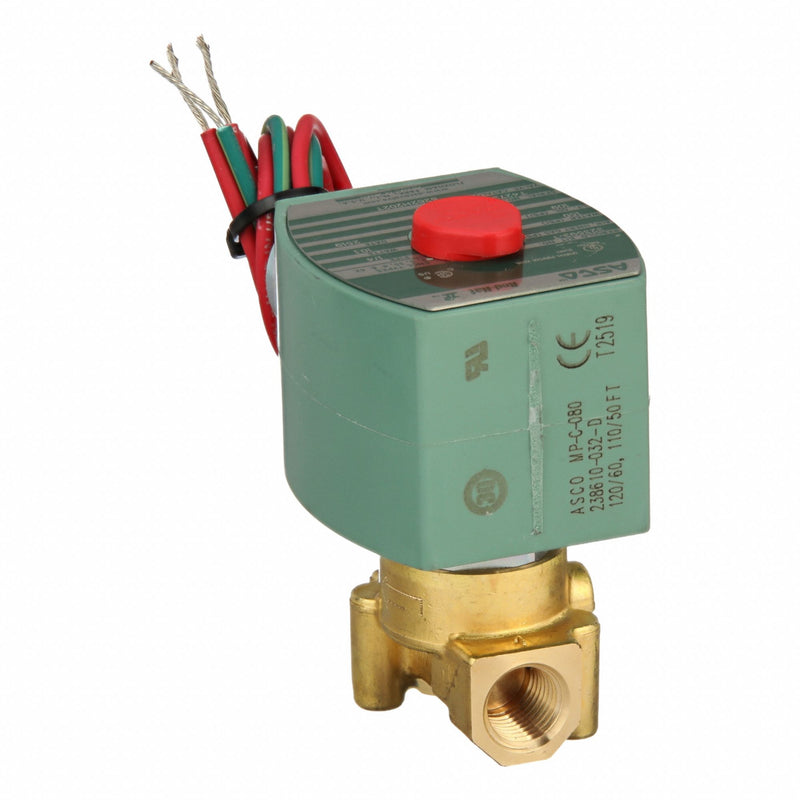

Redhat (ASCO) 8262H202T High-Flow Solenoid Valve, 2-Way 2-Position Normally Closed, 1/4 in NPT, Brass Body, 120 V AC, 10.1 W, Direct Acting
Original price
$120.73
-
Original price
$120.73
Original price
$120.73
$120.73
-
$120.73
Current price
$120.73
ASCO Redhat 8262H202T high-flow 2-way normally-closed solenoid valve. Direct-acting design with brass body and PTFE seal. 1/4 in NPTF inlet/outlet, 5/32 in orifice, 0.52 Cv. 120 V AC 50/60 Hz, 10.1 W. For air, inert gases, light oil, and water. Max pressure differentials: 150 psi water, 210 psi air/inert gas, 109 psi light oil. Fluid temp up to 180°F. Mount horizontal or vertical. Includes seal and coil.
| For Media | Air, Inert Gases, Light Oil, Water |
| Application | Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps |
| Valve Type | High Flow |
| Mounting Orientation | Horizontal or Vertical |
| Operation Type | Direct Acting |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | PTFE |
| Nominal Pipe Size | 1/4 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 110V AC, 120V AC |
| Wattage | 10.1 W |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connections | 1/2" Conduit w/ 18" Leads |
| Coefficient of Volume (Cv) | 0.52 |
| Orifice Diameter | 5/32 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential - Light Oil | 109 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 210 psi |
| Max. Fluid Temperature | 180°F |
| Min. Ambient Temperature | 14°F |
| Max. Ambient Temperature | 140°F |
| Includes Seal | Yes |
| Includes Coil | Yes |
