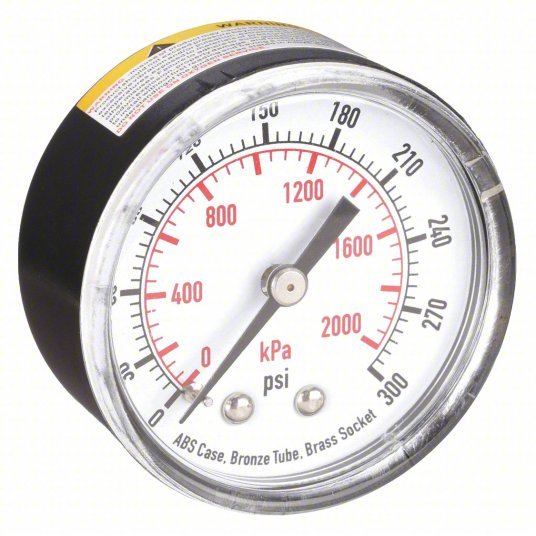

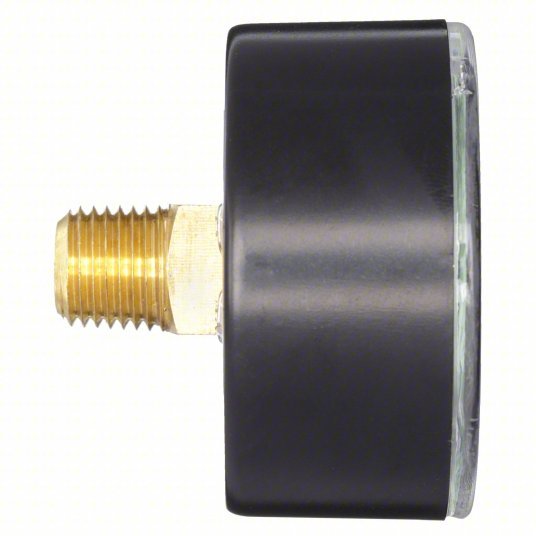

Redwood RW4FMC9 Commercial Pressure Gauge 0 to 300 psi, 2 in Dial, 1/4 in NPT Male, Center Back
Original price
$13.92
-
Original price
$13.92
Original price
$13.92
$13.92
-
$13.92
Current price
$13.92
Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in
| Accuracy | +/-3-2-3% |
| Process Connection Location | Center Back |
| Process Connection Type | NPT |
| Application | Test and Measurement |
| Gauge Case Material | ABS Plastic |
| Lens Material | Acrylic |
| Primary Pressure Range | 0 to 300 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Liquid-Filled Case | No |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Gauge Secondary Range Values | 0 to 2000 |
| Smallest Graduation | 5 psi |
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application | General-Purpose Case |
| Case Color | Black |
| Gauge Primary Range Smallest Graduation | 5 |
| Socket Material | Brass |
| Wetted Materials | Brass / Bronze |
| Connection Type | MNPT |
| Accuracy Scale | Mid-Scale |
| Cleaned for Oxygen Service | No |
| Scale Type | Dual |
| Sensor Material | Bronze |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Secondary Scale Units | kPa |
| Gauge Case Liquid | None |
| Dial Color | White |
| Vibration Resistance | None |
| Includes Vent Plug | No |
| Includes Mounting Hardware | No |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Removable Bezel | No |
| Bezel Material | Crimped Stainless Steel |
| Includes Calibration Certificate | No |
| Process Connection Gender | Male |
| Pressure Range Type | Pressure |
| Primary Scale Minor Graduations | 5 |
| Dry Dampening Feature | None |
| Non-Sparking | No |
| Field Fillable | No |
| Secondary Pressure Range | 0 to 2,000 |
| Freeze Resistant Movement | No |
| Maximum Pressure | 300 |
| Operating Temperature Range | -40 Degrees to 150 Degrees F |
