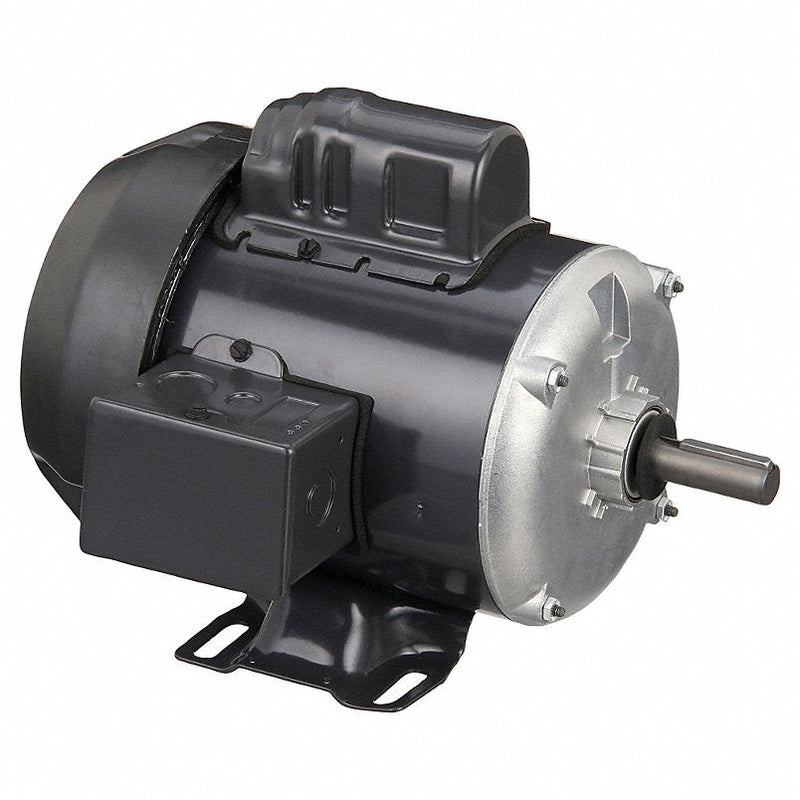

Redwood RW5K121 Capacitor-Start General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Original price
$329.79
-
Original price
$329.79
Original price
$329.79
$329.79
-
$329.79
Current price
$329.79
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.0/3.5-3.3, 56 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
| Item | General Purpose Motor |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| HP | 1/3 |
| Voltage | 115/208-230V AC |
| Frame | 56 |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.15 |
| No. of Speeds | 1 |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Application | General Application |
| Nameplate RPM | 1,725 |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Design | Capacitor-Start |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Max. Ambient Temp. | 40 Degrees C |
| Hz | 60 |
| Motor Efficiency Group | Standard Efficient |
| Full Load Amps | 7.0/3.5-3.3 |
| RPM Group | 1701-1800 |
| Duty | Continuous |
| Includes | Shaft Key |
| Motor Bearings | Ball |
| Nominal Efficiency | 56.2 % |
| Footnotes | 51 |
| Frame Material | Steel |
| Phase | Single |
| Ins. Class | B |
| Duty Cycle | Continuous |
| Package Quantity | 1 |
