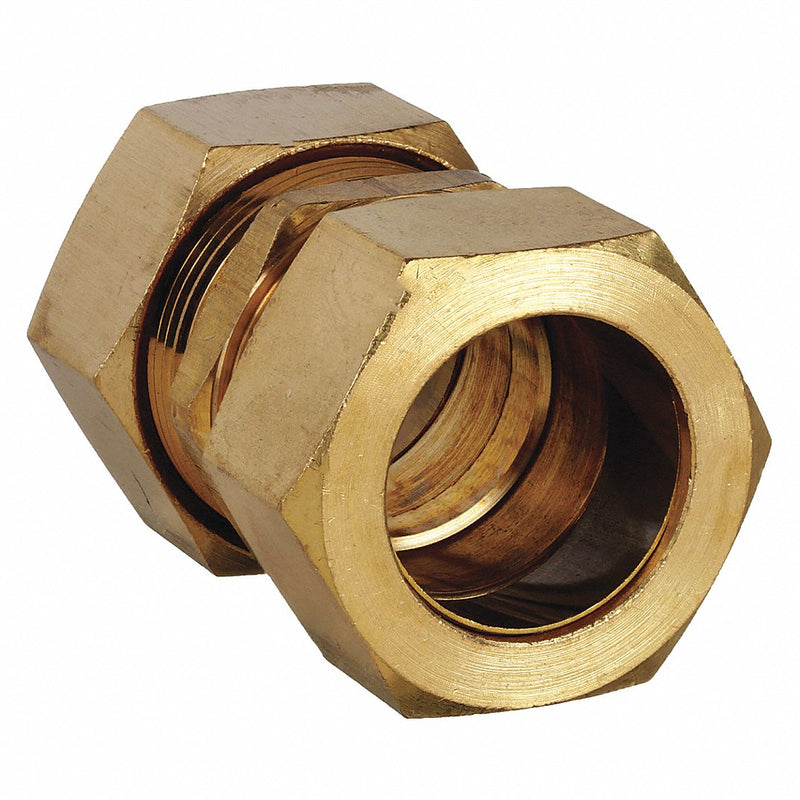

Redwood 700062-14 Compression Fitting Union 7/8 in OD x 7/8 in OD Fitting Size, Brass

Compression Fitting Union, Application Gasoline, Oils, Potable Water, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 7/8 in, Fitting Side B Tube Outer Diameter 7/8 in, Maximum Operating Pressure 120 psi, Maximum Operating Temperature 250 Degrees F, Specific Fitting Shape Straight Connector, Compatible Fitting Brands Not Applicable, Thread Size A 1 1/8-18, Thread Size B 1 1/8-18

Specific Fitting Shape	Straight Connector	Temp. Range	-65 Degrees to 250 Degrees F
Specific Pipe Fitting Shape	Union	Max. Pressure	120 psi
Basic Pipe Fitting Shape	Union	Standards	NSF/ANSI 61 Annex G
Basic Pipe Fitting Material	Metal	Application	Gasoline, Oils, Potable Water
Fitting Side B Connection Type	Compression	Maximum Operating Temperature	250 Degrees F
Maximum Operating Pressure	120 psi	Fitting Side A Connection Type	Compression
Compatible Tube Material	Aluminum, Copper, Plastic	Fitting Material	Brass
Minimum Operating Temperature	40 Degrees F	System of Measurement	Imperial
Fitting Shape	Straight	Connection	Compression
Pressure (PSI)	120	For Media Type	Fuels, Oils, Potable Water
Operating Temperature - Minimum	-40 Degrees F	Fitting Side 2 Connection Type	Compression
Operating Temperature - Maximum	250 Degrees F	Operating Pressure - Maximum	120 psi
Fitting Side 1 Connection Type	Compression	Connector Type	Coupling
