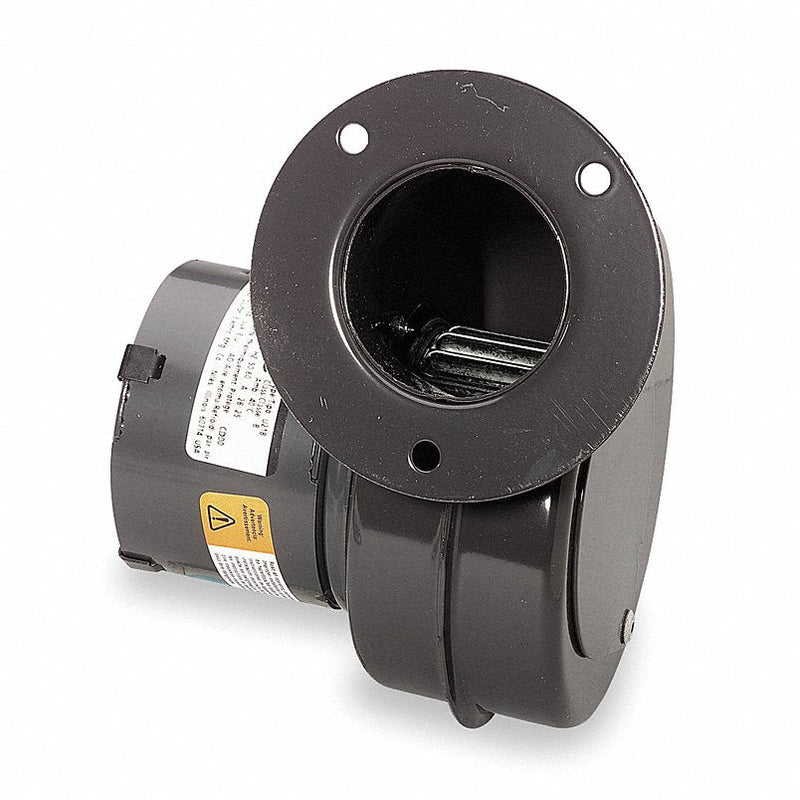

Redwood 70213466X Round OEM Blower, 3030 RPM, 1 Phase, Direct, Steel
Original price
$141.55
-
Original price
$141.55
Original price
$141.55
$141.55
-
$141.55
Current price
$141.55
OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 in, Airflow @ 0.000 in SP 60 cfm, Airflow @ 0.100 in SP 57 cfm, Airflow @ 0.400 in SP 39 cfm, Airflow @ 0.500 in SP 23 cfm
| CFM @ 0.100-In. SP | 57 |
| Drive Type | Direct |
| Full Load Amps | 0.49/0.42 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| CFM @ 0.500-In. SP | 23 |
| Housing Color | Gray |
| Housing Finish | Baked Enamel |
| Item | OEM Blower |
| CFM @ 0.200-In. SP | 54 |
| CFM @ 0.300-In. SP | 49 |
| Motor Insulation | Class B |
| RPM | 3030 |
| Agency Compliance | CSA Certified, UL Component Recognized |
| Max. Ambient Temp. | 104 Degrees F |
| Replaces | 4C440 |
| CFM @ 0.400-In. SP | 39 |
| Max. Inlet Temp. | 104 Degrees F |
| Wheel Type | Forward Curve |
| Motor Enclosure | Open Dripproof |
| Mounting Position | All Position |
| Bearing Type | Sleeve |
| CFM @ 0.150-In. SP | 55 |
| Hz | 50/60 |
| Not For Use With | Not Intended For Use As Inline Blowers For Wood Burners |
| CFM @ 0.000-In. SP | 60 |
| Airflow @ Static Pressures | 60 cfm @ 0.000 in SP |
| Mount Type | All Position |
| Flange Type_broad | Flanged Outlet |
| Inlet Type | Single-Inlet |
| Airflow @ 0.500 in SP Range | 0 to 999 cfm |
| Electrical Connection | Wire Leads |
| Airflow @ 0.100 in SP | 57 cfm |
| Mounting Orientation | Multiposition |
| Housing Material Finish | Baked Enamel |
| Wheel Material | Steel |
| Motor Type | Shaded Pole |
| Motor Speed | 3,030 RPM |
| Replacement For | 4C440 |
| Includes Drive Package | Yes |
| Airflow @ 0.400 in SP | 39 cfm |
| Flange Type | Flanged |
| Outlet Shape_broad | Round |
| Discharge Position | All |
| Maximum Fan Speed | 3,030 RPM |
| Standards | CSA Certified, UL Listed |
| Rotation | CCW |
| Motor Horsepower | 1/125 hp |
| Minimum Ambient Temperature | 40 Degrees C |
| Current | 0.49/0.42 A |
| Thermal Overload Protection | Yes |
| For Air Type | Clean Air |
| Nominal Voltage | 115V AC |
| Material | Steel Wheel & Steel Housing |
| Outlet Shape | Round |
| Maximum Inlet Air Temperature | 104 Degrees F |
| Motor Insulation Class | B |
| Assembly | Assembled |
| Number of Discharge Positions | 4 |
| Maximum Ambient Temperature | 104 Degrees F |
| Airflow @ 0.000 in SP | 60 cfm |
| Airflow @ 0.500 in SP | 23 cfm |
| Includes Motor | Yes |
| For Fan Speed (Dependent on Motor) | 3,030 RPM |
| Frequency | 50/60 Hz |
| Motor Enclosure Design | Open Dripproof (ODP) |
| Number of Inlets | 1 |
| Motor Enclosure Design_Table | Open Motor |
| Nameplate Voltage | 115V AC |
| Package Quantity | 1 |
