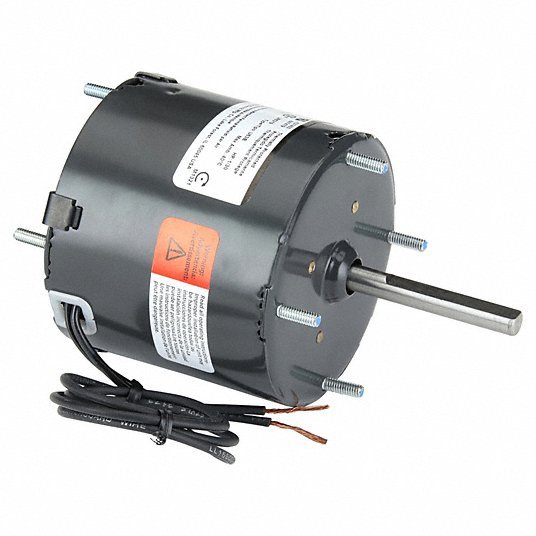

Redwood 71633702M HVAC Motor Totally Enclosed Air-Over, 1/30 HP, 1,550 Nameplate RPM, 1 Speed, 115V AC, CWSE

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1

Voltage	115V AC
Nameplate RPM	1,550
Motor Enclosure Design	Totally Enclosed Air-Over
Number of Speeds	1
HP	1/30
RPM Range	1,501-1,600
Motor Design	Shaded Pole
Voltage Compatibility	115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Application	OEM and Replacement Use In A Wide Variety of Fan and Blower
Full Load Amps	1.2 A
Frame	3.3
Motor Thermal Protection	Auto
Max. Ambient Temp.	40 Degrees C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Service Factor	1
Mounting Pattern	2 x 2
Motor Sub Application	Direct Drive Fan/Blower
Motor Mounting Type	Ring/Stud
Item	HVAC Motor
Standards	CSA Certified, UL Recognized
Motor Shaft Rotation	CWSE
Mounting Stud Location	4/Both Ends
Stud/Base Mtg. Pattern	2 in x 2 in
Duty	Continuous
Phase	Single
Motor Shaft Design	Flat
Number of Shafts	1
No. of Speeds	1
Hz	60 Hz
Ins. Class	B
Capacitor Required	No
Duty Cycle	Continuous
Motor Mounting Position	All Angle
Usable @ 200V	No
Usable @ 208V	No
Mounting Stud Pattern	2 in x 2 in
Type	OEM Replacement
Mounting	Stud
