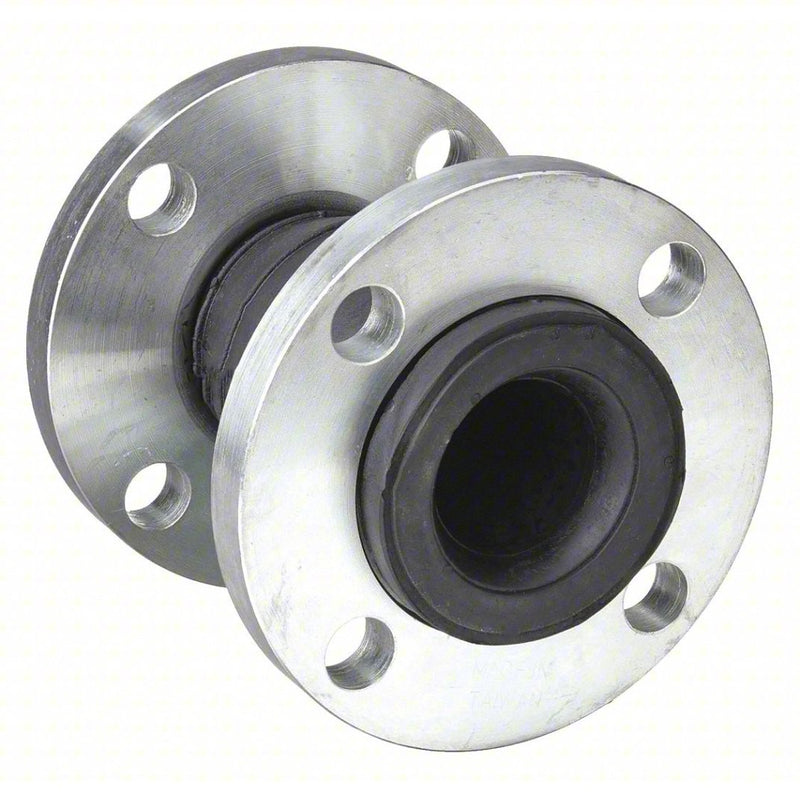

Redwood AMSE203 Expansion Joint 3 in Pipe Size, Flanged, Zinc-Plated Steel, EPDM Joint, 7 1/2 in Flange Dia

Expansion Joint, Bolt Circle Diameter 6 in, Bolt Hole Size 5/8 In.-11, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 1/2 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 7 1/2 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Water, Joint Material EPDM

Max. Pressure	225 psi @ 72 Degrees F
Temp. Range	-50 To 230 Deg F
Bolt Holes	4
Connection	Drilled
Pipe Fitting Material	EPDM
For Environment	HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater
Number of Bolt Holes	4
Connection Type	Flanged
Flange Material Finish	Zinc-Plated
Maximum Vacuum Pressure	26 in Hg @ 72F
Offset Distance	1/2 in
Resistance Properties	Corrosion Resistant
Burst Pressure	853 psi
For Fluid Type	Air, Water
Expansion Joint Type	Single Bulb
Compression Distance	1/2 in
For Use On	Pipe
Maximum Operating Temperature	230 Degrees F
Minimum Operating Temperature	-50 Degrees F
Joint Material	EPDM
Flange Material	Steel
Maximum Operating Pressure	225 psi
Bolt Hole Threading	Threaded
Features	Absorbs Pipe Movement and Stress
Reinforcement Material	Synthetic Fiber
Maximum Off-Center Angle	15 Degrees
Expansion Distance	3/8 in
