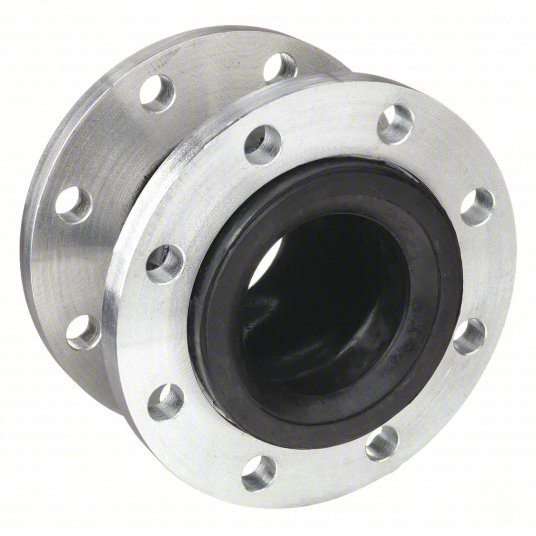

Redwood AMSE208 Expansion Joint 8 in Pipe Size, Flanged, Zinc-Plated Steel, EPDM Joint, 13 1/2 in Flange Dia

Expansion Joint, Bolt Circle Diameter 11 3/4 in, Bolt Hole Size 3/4 In.-10, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 5/8 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 13 1/2 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Water, Joint Material EPDM

Material	EPDM
Temp. Range	-50 To 230 Deg F
Bolt Holes	8
Max. Pressure	225 psi @ 72 Degrees F
UPC	818273415502
Vacuum	26 In Hg At 72 Deg F
Connection	Drilled
Pipe Fitting Material	EPDM
Resistance Properties	Corrosion Resistant
Compression Distance	5/8 in
Expansion Joint Type	Single Bulb
Joint Material	EPDM
Flange Material	Steel
Features	Absorbs Pipe Movement and Stress
Expansion Distance	3/8 in
Flange Material Finish	Zinc-Plated
Number of Bolt Holes	8
Connection Material	Zinc-Plated Steel
Application	Gases, General Purpose
Maximum Vacuum Pressure	26 in Hg @ 72F
Offset Distance	1/2 in
For Use On	Pipe
Minimum Operating Temperature	-50 Degrees F
Maximum Off-Center Angle	15 Degrees
For Fluid Type	Air, Water
Bolt Hole Threading	Threaded
Reinforcement Material	Synthetic Fiber
Connection Type	Flanged
Maximum Operating Temperature	230 Degrees F
Burst Pressure	853 psi
Expansion Joint Material	EPDM
Maximum Operating Pressure	225 psi
For Environment	HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater
