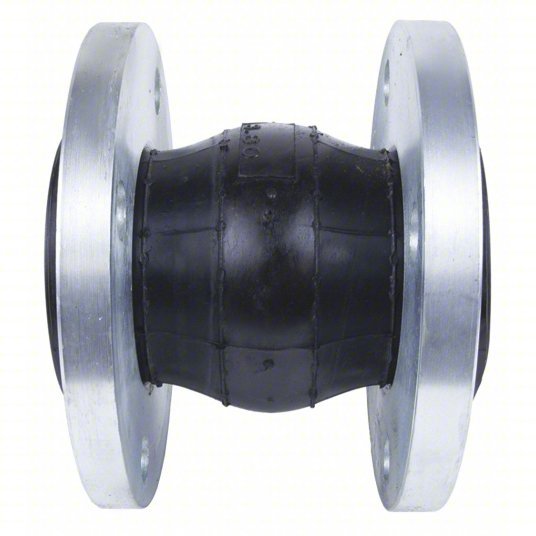

Redwood AMSE210 Expansion Joint 10 in Pipe Size, Flanged, Zinc-Plated Steel, EPDM Joint, 16 in Flange Dia

Expansion Joint, Bolt Circle Diameter 14 1/4 in, Bolt Hole Size 1 in, Bolt Hole Threading Unthreaded, Burst Pressure 853 psi, Compression Distance 63 in, Connection Type Flanged, Expansion Distance 1/2 in, Expansion Joint Type Single Bulb, Features Absorbs Water Pulsation and Minimizes Water Hammering, Applicable for Suction and Delivery (Discharge), Floating Flanges, Prevents Piping System and Equipment Breakdown, Provides Sound and Vibration Isolation, Flange Diameter 16 in

• This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
• ***This is a restricted item. It cannot be used in the USA for potable water applications.

Material	EPDM
Vacuum	10 In Hg At 72 Degrees F
Temp. Range	210 Degrees F
Item	Expansion Joint
Bolt Holes	12
Max. Pressure	231 psi
Connection	Flanged
Pipe Fitting Material	EPDM
Flange Material	Steel
For Environment	Industrial Plants, Power Generation Plants, Shipbuilding Yards, Universal Pump Blowers, Waterworks and Sanitary Piping Systems
Reinforcement Material	Synthetic Fiber
For Fluid Type	Water
Burst Pressure	853 psi
Features	Absorbs Water Pulsation and Minimizes Water Hammering, Applicable for Suction and Delivery (Discharge), Floating Flanges, Prevents Piping System and Equipment Breakdown, Provides Sound and Vibration Isolation
Maximum Operating Pressure	214 psi
Expansion Distance	1/2 in
Joint Material	EPDM
Bolt Hole Threading	Unthreaded
Maximum Operating Temperature	210 Degrees F
Offset Distance	3/4 in
Number of Bolt Holes	12
Maximum Off-Center Angle	15 Degrees
Connection Type	Flanged
Minimum Operating Temperature	14 Degrees F
Expansion Joint Type	Single Bulb
Compression Distance	63 in
Maximum Vacuum Pressure	10 in Hg @ 72F
Flange Material Finish	Zinc-Plated
