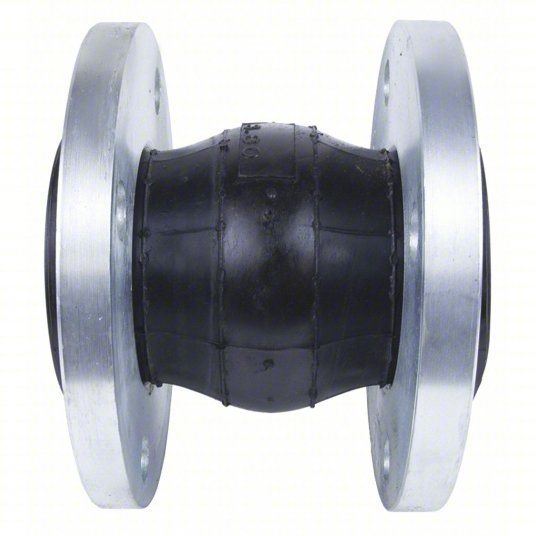

Redwood AMSE212 Expansion Joint 12 in Pipe Size, Flanged, Zinc-Plated Steel, EPDM Joint, 19 in Flange Dia

Expansion Joint, Bolt Circle Diameter 17 in, Bolt Hole Size 1 in, Bolt Hole Threading Unthreaded, Burst Pressure 853 psi, Compression Distance 3/4 in, Connection Type Flanged, Expansion Distance 1/2 in, Expansion Joint Type Single Bulb, Features Absorbs Water Pulsation and Minimizes Water Hammering, Applicable for Suction and Delivery (Discharge), Floating Flanges, Prevents Piping System and Equipment Breakdown, Provides Sound and Vibration Isolation, Flange Diameter 19 in, Flange Material Steel.

Material	EPDM
Temp. Range	210 Degrees F
Bolt Holes	12
Item	Expansion Joint
Vacuum	3 In Hg At 72 Degrees F
Max. Pressure	231 psi
Connection	Flanged
Pipe Fitting Material	EPDM
Reinforcement Material	Synthetic Fiber
For Environment	Industrial Plants, Power Generation Plants, Shipbuilding Yards, Universal Pump Blowers, Waterworks and Sanitary Piping Systems
Maximum Operating Pressure	214 psi
Bolt Hole Threading	Unthreaded
Compression Distance	3/4 in
Minimum Operating Temperature	14 Degrees F
Expansion Joint Type	Single Bulb
For Fluid Type	Water
Flange Material Finish	Zinc-Plated
Maximum Operating Temperature	210 Degrees F
Joint Material	EPDM
Features	Absorbs Water Pulsation and Minimizes Water Hammering, Applicable for Suction and Delivery (Discharge), Floating Flanges, Prevents Piping System and Equipment Breakdown, Provides Sound and Vibration Isolation
Application	General Purpose
Expansion Distance	1/2 in
Expansion Joint Material	EPDM
Number of Bolt Holes	12
Offset Distance	3/4 in
Burst Pressure	853 psi
Flange Material	Steel
Maximum Off-Center Angle	15 Degrees
Connection Material	Zinc-Plated Steel
Connection Type	Flanged
Maximum Vacuum Pressure	3 in Hg @ 72F
