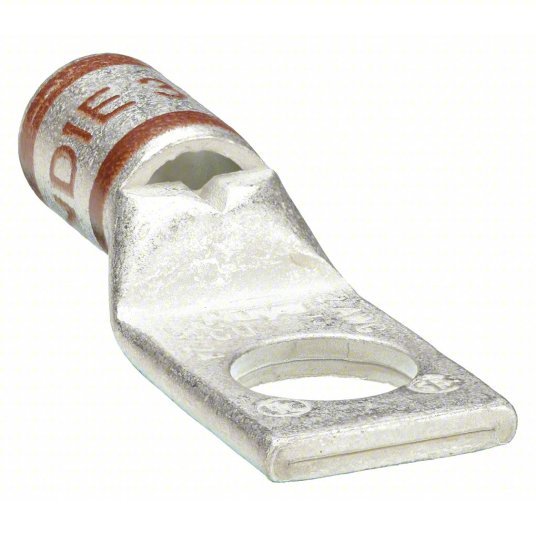

Redwood RW24C343 One-Hole Lug Compression Connector 2 AWG Max Wire Size, 1/4 in Stud Size
Original price
$3.98
-
Original price
$3.98
Original price
$3.98
$3.98
-
$3.98
Current price
$3.98
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Brown, Die Code 33, Tongue Angle Straight, Tongue Width 0.59 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
| Connector Type | Straight Barrel |
| Material | Copper |
| Color Code | Brown |
| Item | One-Hole Lug Compression Connector |
| Standards | CSA Certified, UL Listed |
| Die Code | 33 |
| Tongue Style | Standard |
| Peep Hole | Yes |
| Hole Center to End | 0.25 in |
| Barrel Style | Chamfered |
| Tongue Angle | Straight |
| Maximum Operating Temperature | 300 Degrees F |
| Tongue Thickness | 0.11 in |
| For Wire Type | Stranded |
| Current | 170 A |
| Contact Finish | Tin |
| Maximum Voltage | 600 V AC |
| For Conductor Material | Copper |
| RoHS Compliant | Yes |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Termination Style | Crimp |
| Seam Style | Seamless |
| Inspection Hole | Yes |
