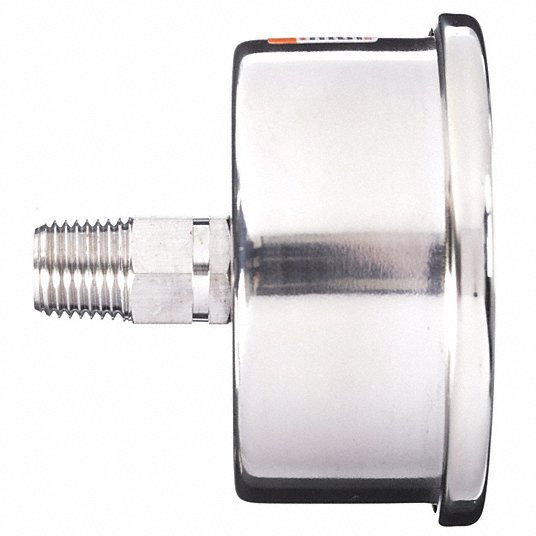

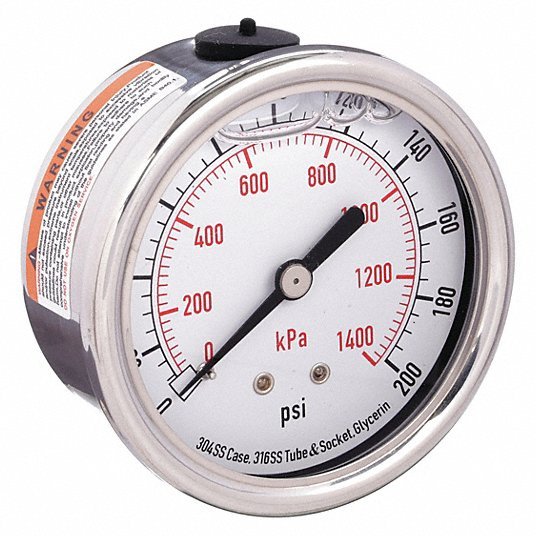

Redwood RW4CFR8 Commercial Pressure Gauge 0 psi / Hg to 200 psi, 2 1/2 in Dial, 1/4 in NPT Male
Original price
$66.19
-
Original price
$66.19
Original price
$66.19
$66.19
-
$66.19
Current price
$66.19
Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
| Accuracy | +/-3-2-3% |
| Process Connection Location | Center Back |
| Process Connection Type | NPT |
| Application | General Purpose |
| Gauge Case Material | 304 Stainless Steel |
| Lens Material | Acrylic |
| Primary Pressure Range | 0 to 200 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Liquid-Filled Case | Yes |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Gauge Application | Corrosion-Resistant Case |
| Gauge Secondary Range Values | 0 to 1400 |
| Smallest Graduation | 5 psi |
| Calibration Certificate Included | No |
| Case Color | Silver |
| Gauge Primary Range Smallest Graduation | 5 |
| Gauge Filled With | Glycerin |
| For Use With | Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors |
| Socket Material | 316 Stainless Steel |
| Case Material | 304 Stainless Steel |
| Connection Type | MNPT |
| Wetted Materials | Stainless Steel |
| Pressure Range Type | Pressure |
| Process Connection Gender | Male |
| Includes Calibration Certificate | No |
| Dial Color | White |
| Ambient Operating Temperature Range | -40 Degrees to 140 Degrees F |
| Secondary Pressure Range | 0 to 1,400 kPa |
| Includes Mounting Hardware | No |
| Freeze Resistant Movement | No |
| Vibration Resistance | Liquid-Filled |
| Accuracy Scale | Mid-Scale |
| Bezel Material | Crimped Stainless Steel |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Sensor Material | 316 Stainless Steel |
| Cleaned for Oxygen Service | No |
| Non-Sparking | No |
| Removable Bezel | No |
| Primary Scale Minor Graduations | 1, 2 |
| Includes Vent Plug | No |
| Gauge Case Liquid | Glycerin |
| Secondary Scale Units | kPa |
| Scale Type | Dual |
| Field Fillable | No |
| Dry Dampening Feature | None |
| Maximum Pressure | 200 |
| Operating Temperature Range | -40 Degrees to 140 Degrees F |
| Case Liquid | Glycerin |
| Operating Temperature - Minimum | -40 Degrees F |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Secondary Scale Pressure Measurement - Minimum | 0 kPa |
| Operating Temperature - Maximum | 140 Degrees F |
| Secondary Scale Pressure Measurement - Maximum | 1,400 kPa |
| Primary Scale Pressure Measurement - Maximum | 200 psi |
