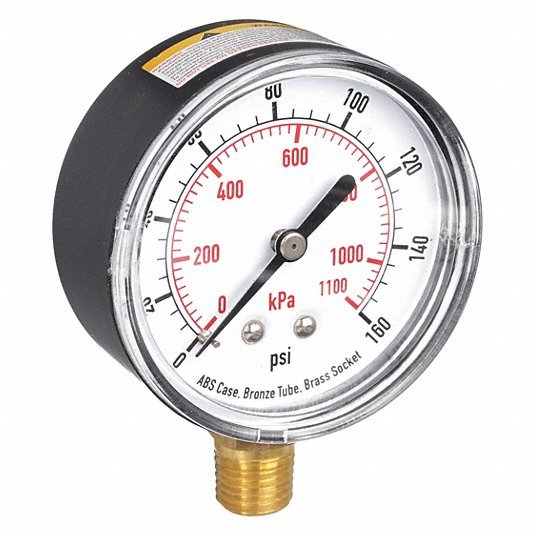

Redwood RW4FLW1 Commercial Pressure Gauge 0 psi / Hg to 160 psi, 2 1/2 in Dial, 1/4 in NPT Male
Original price
$23.03
-
Original price
$23.03
Original price
$23.03
$23.03
-
$23.03
Current price
$23.03
Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge
| Accuracy | +/-3-2-3% |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Application | Test and Measurement |
| Gauge Case Material | ABS Plastic |
| Lens Material | Acrylic |
| Primary Pressure Range | 0 to 160 |
| Primary Scale Units | psi |
| IP/NEMA Rating | Not Rated |
| Liquid-Filled Case | No |
| Hazardous Location Rating | Not Rated |
| Panel-Mountable | No |
| Blowout Safety Back | No |
| Case Color | Black |
| Gauge Primary Range Smallest Graduation | 5 |
| Smallest Graduation | 5 psi |
| Calibration Certificate Included | No |
| Gauge Application | General-Purpose Case |
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Secondary Range Values | 0 to 1100 |
| Socket Material | Brass |
| Case Material | ABS Plastic |
| Connection Type | MNPT |
| Wetted Materials | Brass / Bronze |
| Secondary Scale Units | kPa |
| Non-Sparking | No |
| Dial Color | White |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Scale Type | Dual |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Pressure Range Type | Pressure |
| Bezel Material | Crimped Stainless Steel |
| Vibration Resistance | None |
| Removable Bezel | No |
| Freeze Resistant Movement | No |
| Sensor Material | Bronze |
| Gauge Case Liquid | None |
| Includes Vent Plug | No |
| Cleaned for Oxygen Service | No |
| Primary Scale Minor Graduations | 5 |
| Secondary Pressure Range | 0 to 1,100 |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Process Connection Gender | Male |
| Accuracy Scale | Mid-Scale |
| Maximum Pressure | 160 psi |
| Operating Temperature Range | -40 Degrees to 150 Degrees F |
