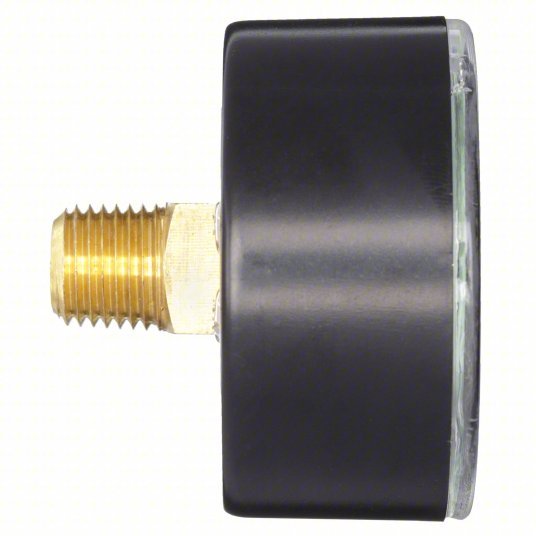

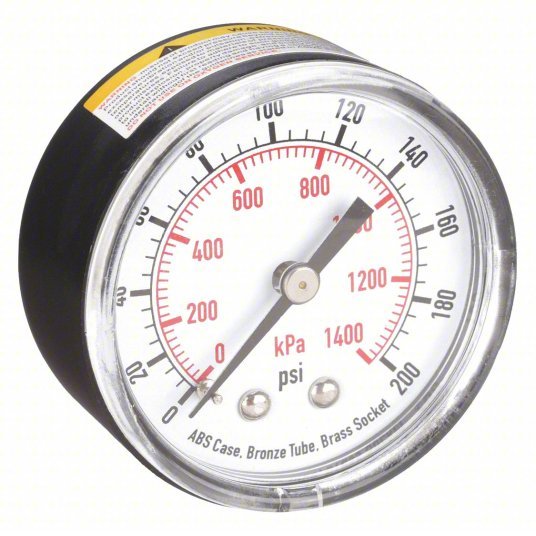

Redwood RW4FMC8 Commercial Pressure Gauge 0 to 200 psi, 2 in Dial, 1/4 in NPT Male, Center Back
Original price
$13.90
-
Original price
$13.90
Original price
$13.90
$13.90
-
$13.90
Current price
$13.90
Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application | General-Purpose Case |
| Range | 0 to 1400 kPa, 0 to 200 psi |
| Accuracy | +/-3-2-3% |
| Material | ABS plastic |
| Color | Black |
| Application | Test and Measurement |
| Gauge Primary Range Values | 0 to 200 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Calibration Certificate Included | No |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Basic Gauge Socket Material | Brass |
| Gauge Secondary Range Units | kPa |
| Max. Pressure (PSI) | 200 |
| Liquid Filled | No |
| Basic Gauge Sensor Material | Bronze |
| Gauge Secondary Range Values | 0 to 1400 |
| Gauge Sensor Material | Bronze |
| Gauge Socket Material | Brass |
| Gauge Primary Range Smallest Graduation | 5 |
| Gauge Lens Material | Acrylic |
| Smallest Graduation | 5 psi |
| Gauge Case Color | Black |
| Basic Gauge Lens Material | Plastic |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Case Material | ABS Plastic |
| Gauge Connection Location | Center Back |
| Gauge Panel Mountable | No |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Socket Material | Brass |
| Removable Bezel | No |
| Hazardous Location Rating | Not Rated |
| Gauge Case Liquid | None |
| IP/NEMA Rating | Not Rated |
| Dial Color | White |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Panel-Mountable | No |
| Field Fillable | No |
| Dry Dampening Feature | None |
| Primary Scale Units | psi |
| Bezel Material | Crimped Stainless Steel |
| Includes Mounting Hardware | No |
| Process Connection Type | NPT |
| Freeze Resistant Movement | No |
| Secondary Scale Units | kPa |
| Primary Scale Minor Graduations | 5 |
| Lens Material | Acrylic |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Sensor Material | Bronze |
| Non-Sparking | No |
| Includes Vent Plug | No |
| Includes Calibration Certificate | No |
| Blowout Safety Back | No |
| Pressure Range Type | Pressure |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Accuracy Scale | Mid-Scale |
| Cleaned for Oxygen Service | No |
| Liquid-Filled Case | No |
| Vibration Resistance | None |
| Secondary Pressure Range | 0 to 1,400 |
| Primary Pressure Range | 0 to 200 |
| Scale Type | Dual |
