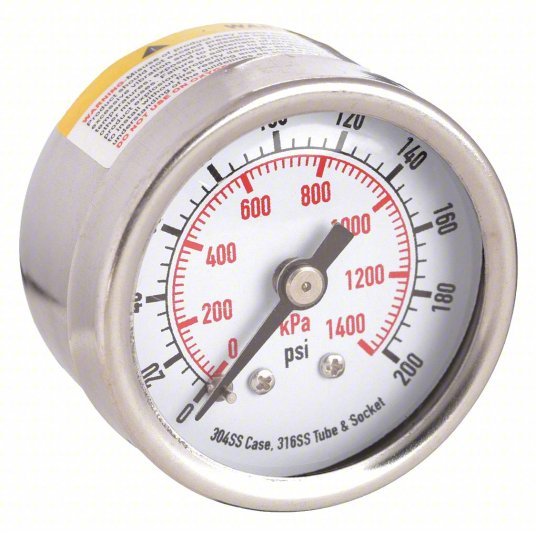

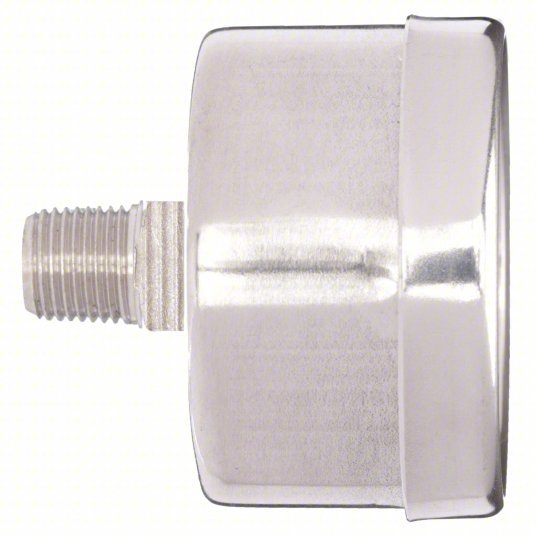

Redwood RW4FMT6 Commercial Pressure Gauge Corrosion-Resistant Case, 0 to 200 psi, 1 1/2 in Dial
Original price
$34.07
-
Original price
$34.07
Original price
$34.07
$34.07
-
$34.07
Current price
$34.07
Commercial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White
| For Use With | Air, Water, and Oils in Hydraulic Equipment, Pressure Washers, Pumps, and Compressors |
| Gauge Application | Corrosion-Resistant Case |
| Range | 0 to 1400 kPa, 0 to 200 psi |
| Accuracy | +/-3-2-3% |
| Material | 304 Stainless steel |
| Color | Stainless Steel |
| Application | Test and Measurement |
| Gauge Primary Range Values | 0 to 200 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Silver |
| Gauge Primary Range Smallest Graduation | 5 |
| Gauge Secondary Range Units | kPa |
| Basic Gauge Sensor Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Basic Gauge Socket Material | Stainless Steel |
| Smallest Graduation | 5 psi |
| Basic Gauge Lens Material | Plastic |
| Gauge Sensor Material | 316 Stainless Steel |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Lens Material | Acrylic |
| Liquid Filled | No |
| Gauge Secondary Range Values | 0 to 1400 |
| Gauge Panel Mountable | No |
| Gauge Case Material | 304 Stainless Steel |
| Gauge Case Color | Stainless Steel |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Calibration Certificate Included | No |
| Max. Pressure (PSI) | 200 |
| Gauge Socket Material | 316 Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Socket Material | 316 Stainless Steel |
| Liquid-Filled Case | No |
| Primary Pressure Range | 0 to 200 |
| Removable Bezel | No |
| Includes Calibration Certificate | No |
| Primary Scale Units | psi |
| Bezel Material | Crimped Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Cleaned for Oxygen Service | No |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Field Fillable | No |
| Secondary Pressure Range | 0 to 1,400 |
| Non-Sparking | No |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Includes Mounting Hardware | No |
| Panel-Mountable | No |
| Accuracy Scale | Mid-Scale |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Process Connection Location | Center Back |
| Sensor Material | 316 Stainless Steel |
| Pressure Range Type | Pressure |
| Scale Type | Dual |
| Lens Material | Acrylic |
| Dial Color | White |
| Blowout Safety Back | No |
| Vibration Resistance | None |
| Secondary Scale Units | kPa |
| IP/NEMA Rating | Not Rated |
| Dry Dampening Feature | None |
| Process Connection Type | NPT |
| Includes Vent Plug | No |
| Primary Scale Minor Graduations | 5 |
| Process Connection Gender | Male |
