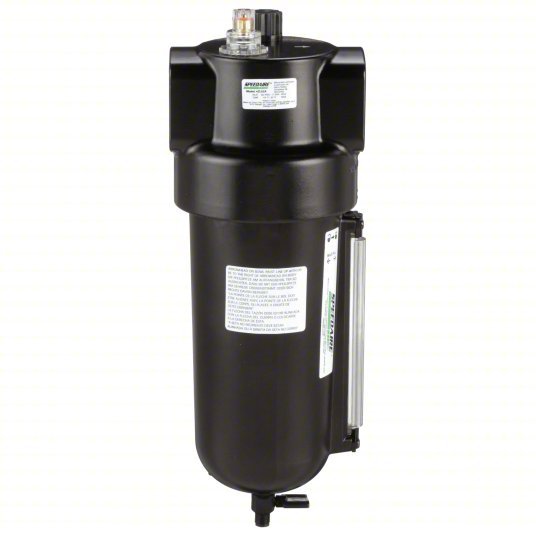

Redwood RW4ZL62 Compressed Air Lubricator Micro Mist, 1 1/2 in NPT, 275 cfm, 250 psi Max Op Pressure
Original price
$195.49
-
Original price
$195.49
Original price
$195.49
$195.49
-
$195.49
Current price
$195.49
Compressed Air Lubricator, Lubricator Type Micro Mist, Lubricator Bowl Material Metal with Sight Glass, Air Inlet Size 1 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 275 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Adjustment Mechanism Screwdriver, Body Material Aluminum, Overall Width 4 1/2 in, Series Heavy Duty, Sight Dome Included Yes, Sight Gauge Included Yes, Adjustment Mechanism Material PE, Air Flow Direction Left to Right, Air Inlet Gender Female
| Series | Heavy Duty |
| Bowl Material | Metal |
| Max. Flow | 275 cfm |
| Max. Pressure | 250 psi |
| Max. Pipe Run | 50 ft |
| Drain Included | Yes |
| Adjustment Type | Screwdriver |
| Dome Material | Transparent Nylon |
| Oil Feed Type | Micromist |
| Max. Temp. | 175 Degrees F |
| Body Material | Aluminum |
| Sight Dome Included | Yes |
| Includes | (1) Oil Drop Controller |
| Weight | 2 kg |
| Lubricator Bowl Capacity | 32 oz |
| Air Inlet Gender | Female |
| Duty Rating | Heavy Duty |
| System Location | Main Line |
| Modular Connection | No Modular Connection |
| Seal Material | Rubber |
| Sight Gauge Included | Yes |
| Lubricator Bowl Guard Material | Aluminum |
| Adjustment Mechanism Material | PE |
| Maximum Operating Pressure | 250 psi |
| Number of Air Outlets | 1 |
| Lubricator Type | Micro Mist |
| Maximum Operating Temperature | 175 Degrees F |
| For Maximum Pipe Run | 50 ft |
| For Fluid Type | Compressed Air |
| Air Inlet Type | NPT |
| Air Flow Direction | Left to Right |
| Lubricator Bowl Material | Metal with Sight Glass |
| Minimum Operating Temperature | 5 Degrees C |
| Number of Air Inlets | 1 |
| Air Outlet Type | NPT |
| Lubricator Bowl Guard Included | No |
| Maximum Flow Rate | 275 cfm |
| Adjustment Mechanism | Screwdriver |
| Drain Part Compatibility | GGS_56610 |
| Oil Capacity | 750 ct |
| Air Outlet Gender | Female |
| For Substance Type | Air |
| Recommended Lubricant | ISO VG 32 |
