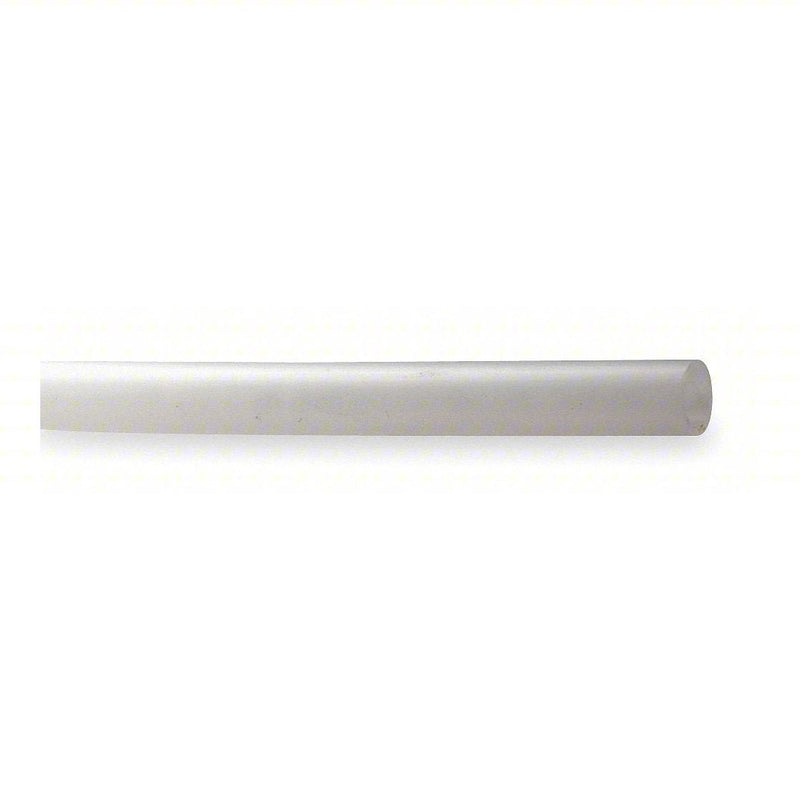

Redwood PE14-NA Tubing Value-Tube, LLDPE, White, 1/4 in Outside Dia, 5/32 in Inside Dia

Redwood PE14-NA Tubing Value-Tube, LLDPE, White, 1/4 in Outside Dia, 5/32 in Inside Dia

$25.16 - $25.16
$25.16
$25.16 - $25.16
$25.16
Tubing, Application Air, Lubricants, Water, Color Beige, Hardness Shore A 98, Inside Diameter 5/32 in, Jacket Material No Jacket, Material LLDPE, Material Trade Name Value-Tube, Maximum Operating Pressure 150 psi @ 75 Degrees F, Maximum Operating Temperature 140 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 1/4 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Reinforcement Not Reinforced, Standards FDA, NSF 61, Wall Thickness 0.06 in
Tube Material Polyethylene
Item Tubing
Tube Hardness Shore D: 55
PEX Type Not Applicable
Material LLDPE
Wall Thickness 0.06 in
Max. Pressure 150 psi
Tube Color Natural
Temp. Range -50 Degrees to 140 Degrees F
Standards FDA, NSF 61
Application Air, Lubricants, Water
For Fluid Type Gas
Tubing Hardness Hard (A96+ D45+ or R50+)
Peristaltic Pump Compatible No
Maximum Operating Pressure 150 psi @ 75 Degrees F
Maximum Vacuum Pressure 28 in Hg
Petroleum Product Compatibility Lubricants, Mineral Oil, Oil
Hardness Shore A 98
System of Measurement Inch
Features Chemically Inert, Impermeable to Gas and Liquids
Tradename Material Value-Tube
Vacuum Rated Vacuum Rated
Material Trade Name Value-Tube
Tube Form Coil
Reinforcement Not Reinforced
Minimum Operating Temperature -50 Degrees F
Color Beige
Autoclavable No
Tubing Reinforcement Not Reinforced
