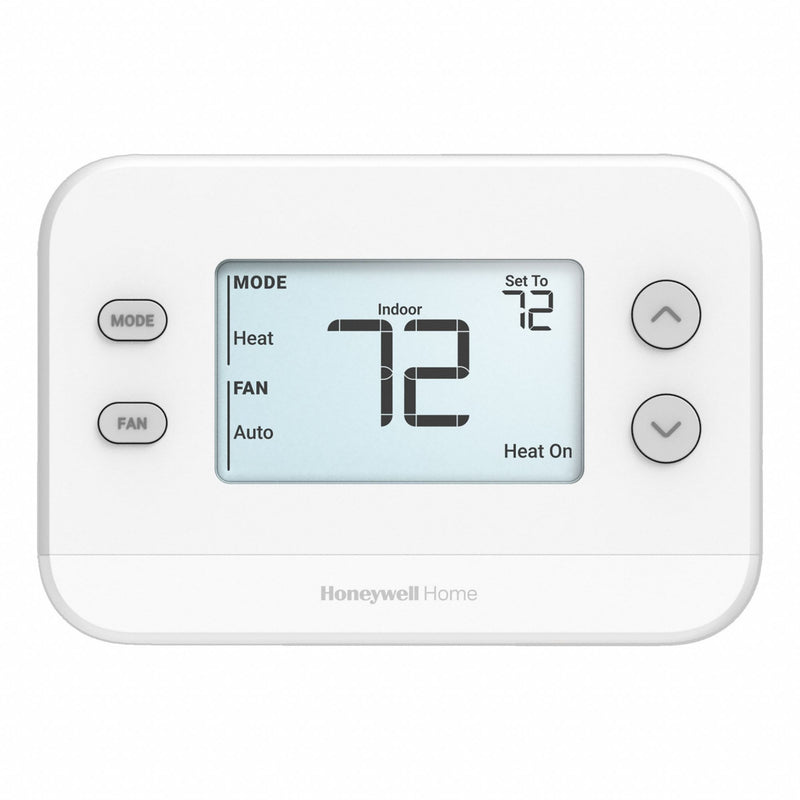

Resideo TH1320U4002 Low Voltage Thermostat, Heat and Cool, Auto and Manual, Auto-On-Circulate, Horizontal
UPC: | Harmonization / Schedule B : 9032.10.0030
Country of Origin: Mexico | Shipping Weight: 0.75 lbs
Original price
$112.22
-
Original price
$112.22
Original price
$112.22
$112.22
-
$112.22
Current price
$112.22
Low Voltage Thermostat, Heat and Cool, Automatic and Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Push Button, Dehumidification Control No, Differential Type Adjustable, Digit Size Standard, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On-Circulate, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 50 Degrees F, Maximum Control Temperature 99 Degrees F
| Voltage | 24V AC |
|---|---|
| Dual Transformer Compatible | Yes |
| Operating Humidity Range | 5% to 90% RH |
| Pilot Duty Rating | 24v/60Hz/0.20A |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux |
| Housing Color | White |
| Number of Heating Stages - Conventional System | 2 |
| Terminal Designations | C, E, G, K, L, O/B, R, RC, S, W, W2-AUX, Y, Y2 |
| Key Pad Lockout | Yes |
| Temperature Limiting | No |
| Shape | Rectangle |
| Thermostat Type | Low Voltage |
| Housing Material | Plastic |
| Number of Cooling Stages - Heat Pump System | 2 |
| Electrical Connection Type | Battery, Hardwired |
| Number of Relay Outputs | 3 |
| Millivolt Compatible | Yes |
| Contact Rating | 24 V AC |
| Number of Heating Stages - Heat Pump System | 3 |
| Maximum Control Temperature | 99 Degrees F |
| Number of Relay Inputs | 3 |
| Dehumidification Control | No |
| Temperature Scale | Fahrenheit/Celsius |
| Standards | UL Listed |
| Battery Type | (2)AA Batteries |
| Amperage | 1 A |
| Temporary Temperature Hold | No |
| Maximum Operating Temperature | 120 Degrees F |
| Filter Change Reminder | Yes |
| Humidification Control | No |
| Minimum Operating Temperature | 32 Degrees F |
| Backlit Screen Color | Blue |
| Temperature Differential | +/-1 Degrees F |
| Minimum Control Temperature | 50 Degrees F |
| Fan Settings | Auto-On-Circulate |
| Control Type | Push Button |
| Frequency | 60 Hz |
| Product Type | Low Voltage Thermostat |
| Application | Heat and Cool |
| System Settings | Auto-Heat-Cool-Off |
| Number of Zones | 1 |
| Mounting Direction | Horizontal |
| Number of Cooling Stages - Conventional System | 2 |
| Maximum Operating Humidity | 90 % |
| Changeover Type | Automatic and Manual |
| Programming Capability | Not Programmable |
| Temperature Sensitivity | -3 to 3 Degrees F |
| Display Type | Digital |
| Backlit Type | Always On |
| Operating Temperature Range | 32 Degrees to 120 Degrees F |
| Includes Positive Off | Yes |
| Differential Type | Adjustable |
| Temporary Program Override | No |
| Minimum Operating Humidity | 5 % |
| Includes | AA Batteries, Decorative Cover Plate with J-Box Adaptor, Mounting Hardware, UWP Mounting Plate |
| Country of Origin | Mexico |
