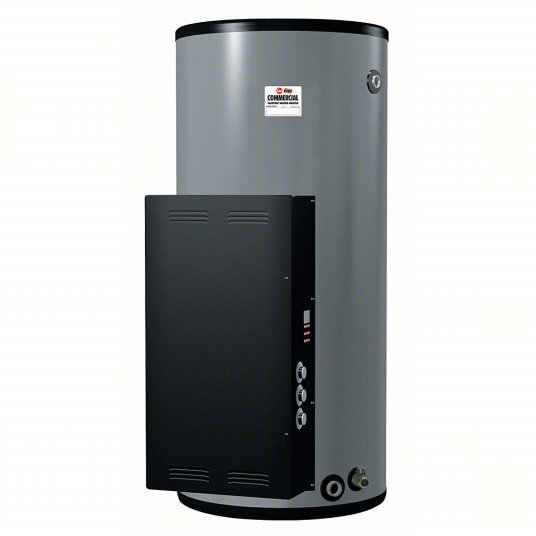

Rheem ES120-24-G Electric Water Heater 480V AC, 120 gal, 24,000 W, Single/Three Phase, 67.6 in Ht

Electric Water Heater, Operating Voltage 480V AC, Phase Single, Three, Equivalent BtuH 81,893 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 248 gph @ 40 Degrees F, Overall Height 67.6 in, Power Consumption 24,000 W, Tank Capacity 120 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 6, Automatic Thermostat Yes, Cold Inlet Size 1 1/2 in, Cold Inlet Type NPT, Current 50 A, Element Material Stainless Steel

Commercial / Residential	Commercial
Water Heater Design	Whole House
Tank Capacity - Plumbing	119.9 gal
Voltage - Water Heaters	480
Phase - Water Heaters	1/3
Total Watts	24,000 W
Recovery @ 120 F Rise	83 gph
Residential / Commercial	Commercial
Industry Type	Commercial
Recovery @ 130 F Rise	76 gph
Recovery @ 50 F Rise	199 gph
Application	Ferrous / Non-Ferrous Metal Over 1/8", S/S Tube, PVC, Cast Pipe and Nail Embedded Wood
Compliance	Exceeds Energy Effeciency Codes of all States. Design Certified by Underwriters Laboratory (UL) to Meet UL Standard 1453 and UL/NSF005., Tested According to DOE Test Procedures and Exceed the Minimum Energy Factor Requirements of Current ASHRAE Standards
Recovery @ 90 F Rise	110.0 gph
Recovery @ 100 F Rise	99 gph
Temp. Range	120 Degrees to 180 Degrees F
Recovery @ 140 F Rise	71 gph
Max. Pressure	150 psi
Vent Type	Standard
Features	Inputs of 3KW to 108KW, Four Voltages to choose from, Lifeguard Stainless Steel Elements, 98% Thermal Effeciency, System Sentenal, Full Port/Full Flow Brass Drain Valve
Recovery @ 70 F Rise	142 gph
Tank Capacity	120 gal
Connection Location	Cold Side/Hot Top
Amps AC	29 for 3 Phase, 50 for 1 Phase
Includes	Brass Drain Valve, Factory-Installed T&P Valve
Standards	AHRI Compliant, ASME, CSA Certified, LWH, UL EPH Listed, UL Listed
Fuel Type	Electric
System of Measurement	Inch
Item	Electric Water Heater
Number of Elements	6
Recovery @ 110 F Rise	90 gph
Water Connection	1-1/2 in NPT
Phase	Single, Three
Connection Type	NPT
Maximum Water Pressure	150 psi
Current	50 A
Minimum Delivered Temperature	90 Degrees F
Water Connection Location	Side, Top
Automatic Thermostat	Yes
Market	Commercial
Power Consumption	24,000 W
Recovery Rate @ Rise	110 gph @ 90 Degrees F, 124 gph @ 80 Degrees F, 142 gph @ 70 Degrees F, 165 gph @ 60 Degrees F, 199 gph @ 50 Degrees F, 7 gph @ 140 Degrees F, 76 gph @ 130 Degrees F, 83 gph @ 120 Degrees F, 90 gph @ 110 Degrees F, 99 gph @ 100 Degrees F
Operating Voltage	480V AC
Included Valves	Temperature and Pressure Relief
Element Material	Stainless Steel
Thermal Efficiency	98 %
Thermostat Mounting	Surface
Maximum Recovery Flow Rate	248 gph @ 40 Degrees F
Tank Lining Material	Vitreous Glass
Equivalent BtuH	81,893 BtuH
Maximum Delivered Temperature	190 Degrees F
Hot Outlet Type	NPT
Cold Inlet Type	NPT
Tank Insulation Material	Polyurethane
