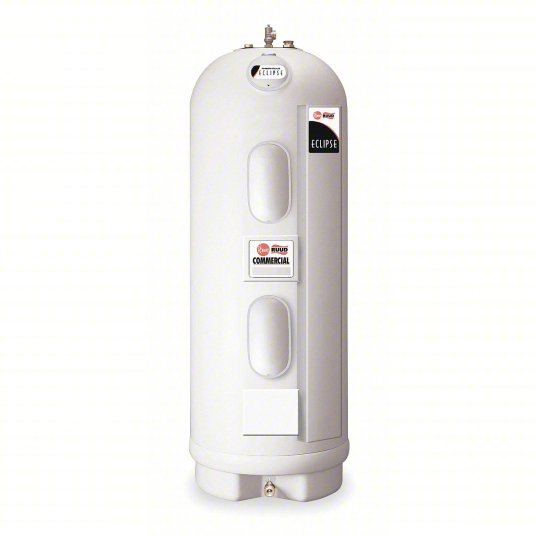

Rheem-Ruud ME105-18 Electric Water Heater 240V AC, 105 gal, 18,000 W, Single/Three Phase, 70.8 in Ht
Original price
$6,655.05
-
Original price
$6,655.05
Original price
$6,655.05
$6,655.05
-
$6,655.05
Current price
$6,655.05
Electric Water Heater, Operating Voltage 240V AC, Phase Single, Three, Equivalent BtuH 61,420 BtuH, First Hour Rating Not Applicable, Maximum Recovery Flow Rate 186 gph @ 40 Degrees F, Overall Height 70.8 in, Power Consumption 18,000 W, Tank Capacity 105 gal, Tank Diameter 30.25 in, Market Commercial, Number of Elements 4, Current 75 A, Element Material Titanium, Environment Indoor, Height to Cold Inlet 70.8 in, Height to Hot Outlet 70.8 in, Included Valves Temperature and Pressure Relief
| Commercial / Residential | Commercial |
| Water Heater Design | Whole House |
| Tank Capacity - Plumbing | 105.0 gal |
| Voltage - Water Heaters | 240 |
| Phase - Water Heaters | 3 |
| Total Watts | 18,000 W |
| Compliance | UL Certified; North Carolina and Massachusetts Code Compliant; ASHRAE Standards |
| Tank Capacity | 105 gal |
| Temp. Range | 90 Degrees to 170 Degrees F, Preset @ 120 Degrees F |
| Recovery @ 100 F Rise | 74 gph |
| System of Measurement | Inch |
| Fuel Type | Electric |
| Connection Type | NPT |
| Recovery @ 90 F Rise | 83.0 gph |
| Recovery @ 50 F Rise | 149 gph |
| Includes | Brass Drain Valve, Factory-Installed T&P Valve |
| Recovery @ 120 F Rise | 62 gph |
| Number of Elements | 4 |
| Phase | Single, Three |
| Connection Location | Top |
| Residential / Commercial | Commercial |
| Recovery @ 110 F Rise | 68 gph |
| Item | Electric Water Heater |
| Recovery @ 70 F Rise | 106 gph |
| Amps AC | 50 A |
| Vent Type | Standard |
| Max. Pressure | 150 psi |
| Industry Type | Commercial |
| Water Connection | 3/4 in NPT |
| Voltage | 240V |
| Standards | AHRI Compliant, cULus Listed, UL EPH Listed |
| Features | Non-Metallic; Durable; Lightweight Composite Tank; High Density Polyethylene Dent and Scratch Resistant Jacket; System Sentinel LED Indicators; 98% Thermal Efficiency; Recessed Drain Valve is Out of The Way of Brooms and Scrubbers |
| BtuH | 61,420 |
| Maximum Recovery Flow Rate | 186 gph @ 40 Degrees F |
| Included Valve Type | T & P Relief |
| Tank Insulation Material | Polyethylene |
| Recovery Rate @ Rise | 106 gph @ 70 Degrees F, 124 gph @ 60 Degrees F, 149 gph @ 50 Degrees F, 62 gph @ 120 Degrees F, 68 gph @ 110 Degrees F, 74 gph @ 100 Degrees F, 83 gph @ 90 Degrees F, 93 gph @ 80 Degrees F |
| Maximum Delivered Temperature | 170 Degrees F |
| Current | 75 A |
| Market | Commercial |
| Included Valves | Temperature and Pressure Relief |
| Thermostat Mounting | Surface |
| Thermal Efficiency | 98 % |
| Operating Voltage | 240V AC |
| Equivalent BtuH | 61,420 BtuH |
| Maximum Water Pressure | 150 psi |
| Power Consumption | 18,000 W |
| Environment | Indoor |
| Water Connection Location | Top |
| Element Material | Titanium |
| Minimum Delivered Temperature | 90 Degrees F |
