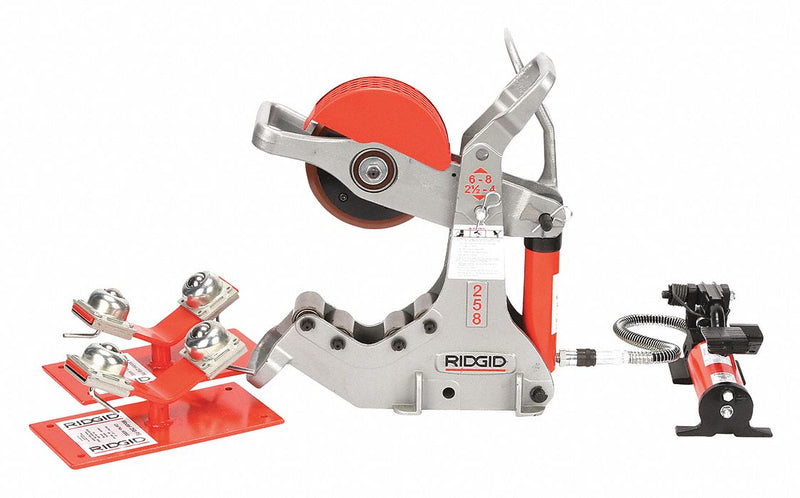

Ridgid 50767 Pipe Cutter, 115V AC, 1/2 hp, Power Drive Required, 8 in Max. Dia., Steel
The RIDGID Model 258 Power Pipe Cutter cuts 2 1⁄2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe, galvanized pipe, rigid conduit, etc. at the job site or in the shop. Powered by the RIDGID No. 700 Power Drive, the 258 is a displacement cutter that provides square cuts. The operator controls the feeding rate by pumping the hydraulic foot pump throughout the operation. A square cut with minimal burr on either 21 ft (6m) or nipple lengths of pipe is achieved quickly** without abrasive dust, sparks, or open flame. Also, the RIDGID Pipe Roller for beveling can be used to rotate the pipe while second operator uses a grinder to bevel the pipe. Features: • Square cut 21ft (6m) or nipple lengths of pipe without effort. Cuts by displacing instead of removing pipe material. No abrasive dust, dangerous sparks, or open flame. Quickly cuts steel pipe with minimal burr. Heavy-duty design is perfect for field or shop use. Adaptable for beveling.
| Overall Length | 22.5 in |
|---|---|
| Minimum Compatible Pipe Size | 2 1/2 in |
| Maximum Compatible Pipe Size | 8 in |
| Overall Width | 11.9 in |
| Minimum Compatible Tubing Size | 2.5 in |
| Maximum Compatible Tubing Size | 8 in |
| Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size | 2-1/2 in to 8 in |
| Wire Rope Length | 22.5 in |
| Length | 22.5 in |
| For Pipe Size - Minimum | 2 1/2 in |
| For Pipe Size - Maximum | 8 in |
| Fits Chest Size | Cuts by Displacing Instead of Removing Pipe Material, Heavy-Duty Design for Field or Shop Use, No Abrasive Dust Sparks or Open Flame, Cuts Steel Pipe with Minimal Burr |
| Voltage | 115V AC |
| Includes | (2) Ball Transfer Pipes, 8 1/2 in Heavy-Duty Cutter Wheel Assembly, Hydraulic Foot Pump, 15/16 in Square Drive Adapter |
| Features | Cuts by Displacing Instead of Removing Pipe Material, Heavy-Duty Design for Field or Shop Use, No Abrasive Dust Sparks or Open Flame, Cuts Steel Pipe with Minimal Burr |
| Tool Series | 258 |
| Machine Capacity | Pipe 2-1/2 in to 8 in |
| Switch Type | On/Off Toggle |
| Characteristics | Need Power Drive to Operate (not included) |
| Functions With | Pipes |
| Phase | Single-Phase |
| Application | Pipe Cutting |
| Tool Weight | 105 lb |
| Compatible Threader Series | Ridgid 700 Power Drive |
| Horsepower | 1/2 hp |
| Kit Contents | Bare Tool |
| Number of Speeds | 1 |
| Reversible | No |
| Power Drive Required | Yes |
| Frequency | 60 Hz |
| Compatible Pipe Schedule | 10, 40 |
| Current | 20 A |
| Compatible Material Type | Steel |
| Power Source | Power Drive Required |
| Free Speed | 30 RPM |
| Cutting Capacity | 2-1/2" (65 mm) to 8" (200 mm) schedule 10*/40 steel pipe |
| For Workpiece Material | Steel |
| Product Type | Pipe Cutter |
| Country of Origin | Korea, Republic of |
