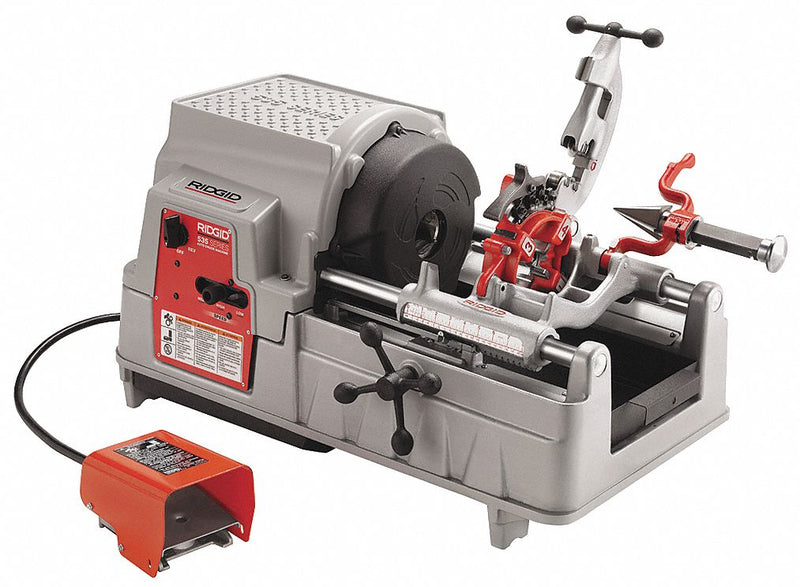

RIDGID 84097 Pipe Threading Machine, Model 535A, 1/8 in to 2 in Pipe, 2 hp, Auto Chuck
Original price
$12,360.11
-
Original price
$12,360.11
Original price
$12,360.11
$12,360.11
-
$12,360.11
Current price
$12,360.11
The Ridgid 535A pipe threader (Ridgid 84097) maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID equipment.
| Voltage | 120 V |
|---|---|
| Includes | (2) Hex Wrenches, 1 gal Extreme Performance Thread Cutting Oil, Reamer, Cutter, Cutter Wheel, Universal Die Head |
| Features | Length Gauge |
| Tool Series | 535A |
| Standards | UL Listed, CSA Certified, NRTLC |
| Characteristics | Heavy Duty Desgin, Large Oil Reservoir and Chip Tray |
| Oil Capacity | 1.75 gal |
| Switch Type | Forward/Off/Reverse and Integral Foot Switch |
| Capacity | Pipe 1/8" to 2", Bolt 5/16" to 2" |
| Phase | Single-Phase |
| Frequency | 60 Hz |
| Tool Weight | 350 lb |
| Number of Speeds | 3 |
| Motor Type | Induction |
| Plug Type | Three-Prong |
| Current | 18 A |
| Through-the-Head Oiling | Yes |
| Pump Type | Self-Priming Constant Flow Gerotor |
| Thread Standard of Included Dies | NPT |
| Power Source | Corded |
| Chuck Type | Automatic with four reversible forged jaws |
| Reversible | Yes |
| Machine Type | Stationary Power Threading Machine |
| Kit Contents | Bare Tool |
| Power Output | 1,500 W |
| Horsepower | 2 hp |
| Free Speed | 16 RPM, 46 RPM, 58 RPM |
| Rear Centering Device | Automatic, centering only |
| Pipe Capacity | 1/8"-2" (3 mm-50 mm) 2-1/2"-4" (62 mm-100 mm) with 141 geared threader |
| Bolt Capacity | 1/4" - 2" |
| Reamer | 5-flute cone, RH, 1/8"-2" (3 mm-50 mm) |
| Switches | Forward/off/reverse and integral safety foot switch |
| Oil Pump | Self-priming gerotor oil pump |
| Country of Origin | United States |
