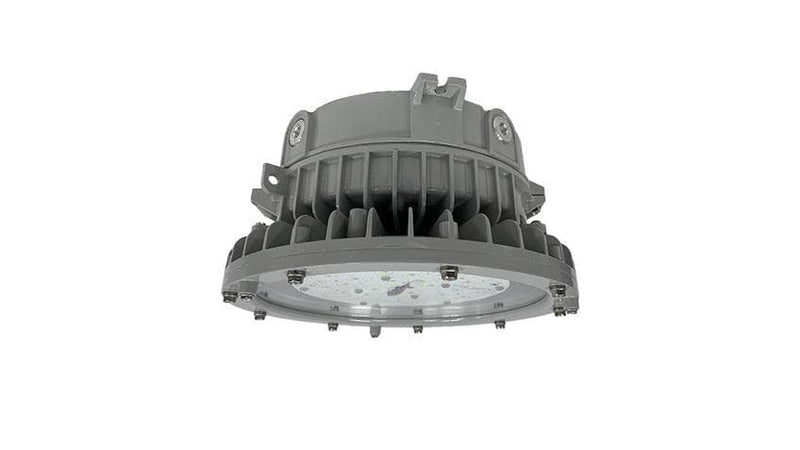

Rig-A-Lite HZALJ10LUFGC LED Area Lighting 3/4 Ceiling Mount for Hazardous Locations
Rig-A-Lite HZALJ10LUFGC LED Area Lighting 3/4 Ceiling Mount for Hazardous Locations
Rig-A-Lite HZALJ10LUFGC LED Area Lighting 3/4 Ceiling Mount for Hazardous Locations
Rig-A-Lite HZALJ10LUFGC LED Area Lighting 3/4 Ceiling Mount for Hazardous Locations

Rig-A-Lite HZALJ10LUFGC LED Area Lighting 3/4 Ceiling Mount for Hazardous Locations

$1,998.73 - $1,998.73
$1,998.73
$1,998.73 - $1,998.73
$1,998.73

Illuminate hazardous locations with the Rig-A-Lite HZALJ10LUFGC LED Area Lighting. Frosted Glass 3/4 Ceiling Mount. With its robust construction and UL844 hazardous location certification, this light provides reliable and safe lighting for any environment. Its energy-efficient LED technology offers long-lasting performance, perfect for industrial and commercial use.

Style

CIDII Low Profile w/ Frosted Lens, Ceiling Mt
Watts

67
Operating Voltage

120V – 277 V 50/60 Hz
Total Lumens

9,634
Lumens per Watt

144
CRI

80.6
CCT

4,896
Ambient Temperature

-40°C < Tamb <70°C

Standard Features:

  • Low profile body, less than 5” high
  • Interchangeable optics with Type I, III, V and wide distribution options
  • Spring pressure connection terminal block
  • Field replaceable LED circuit boards and drivers with quick disconnects
  • Hinged mount for access to internal components
  • Optional trunnion mount with locking positions in 15 degree increments
  • Two (2) safety cable attachment points

Additional Features:

  • Optional emergency backup with switching capability and field replaceable battery
  • Pendant, ceiling, wall, trunnion and stanchion mounting options
  • Mates directly to select competitor mounts
  • Dimming option
  • Optional Type 316 stainless steel guard
  • Standard 10kV surge protection
  • 5-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C & D
  • Class II, Divisions 1 & 2, Groups E,F & G
  • Class III
  • Class I, Zone 2, Group IIA, IIB, IIC
  • Zone 21
  • Simultaneous Presence
  • UL 1598A Marine Outside Type
  • UL 1598 Wet Locations
  • UL 8750 LED Safety
  • UL 844 Hazardous Locations
  • UL 924 Emergency Lighting
  • Emergency Battery Backup
  • -40°C to 70°C Ambient Temperature
  • CSA C22.2 No. 250.0-08
  • CSA C22.2 No. 137-M1981 (R2104)
  • NEMA 4X
  • ABS Type Approved
  • IP66
  • Tested to LM79,LM80
  • Factory Sealed
  • IECEx
  • ATEX

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: One-piece silicone
  • Lens: Tempered glass or polycarbonate
  • Hardware: Stainless Steel
