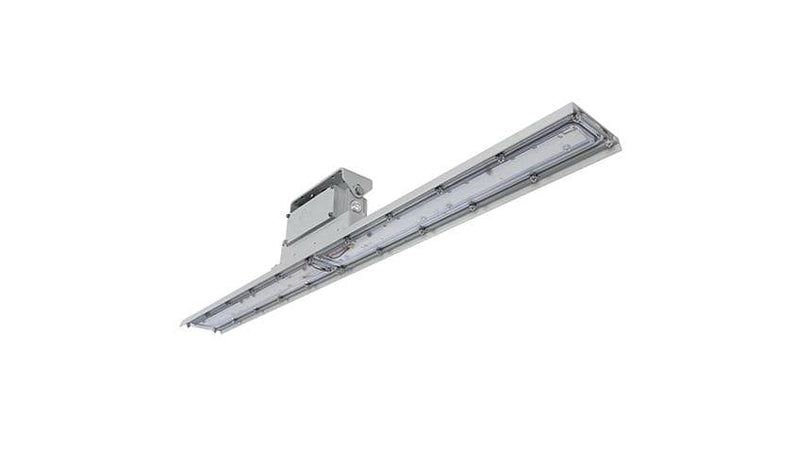

Rig-A-Lite MHL07LC4URIG CIDII, CIIDII 4′ Linear w / Clear Lens, Safety Cbl / Mtg Brkt

Rig-A-Lite MHL07LC4URIG CIDII, CIIDII 4′ Linear w / Clear Lens, Safety Cbl / Mtg Brkt

$1,383.17 - $1,383.17
$1,383.17
$1,383.17 - $1,383.17
$1,383.17

Rig-A-Lite MHL07LC4URIG is a high-performance, durable and energy-efficient lighting solution for industrial and commercial applications. With advanced LED technology, it provides up to 60% energy savings. Its rugged design ensures long-term reliability and low maintenance costs. Suitable for hazardous environments.

Style 2

CIDII, CIIDII 4' Linear w / Clear Lens, Safety Cbl / Mtg Brkt
Watts

52
Operating Voltage

120V – 277 V 50/60 Hz
Total Lumens

7,261
Lumens per Watt

140
CRI

83
CCT

4,105
Ambient Temperature

-35°C < Tamb <60°C


Standard Features:

  • Low-profile, lightweight design
  • Heavy-duty, 3/8″-thick die-cast safety cable attachment points
  • Toolless, cage clamp terminal block
  • Captive junction box cover, attached by nylon-coated, stainless steel cable
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Adjustable mounting bracket with 60° range of motion and nine locking positions (Not included. Must be ordered seperately.)
  • Impact-resistant clear or diffused lens

Additional Features:

  • Standard 10kV surge protection
  • Central safety cable attachment points for increased safety/reduced range-of-motion
  • Feed-through capable
  • Optional end brackets for chain-mount applications
  • Emergency battery back-up

Classifications:

  • Class I, Division 2, Groups A, B, C and D
  • Class II, Division 2, Groups F and G
  • Class III
  • Class I, Zone 2, Groups IIA, IIB, IIC, Zone 22 (ANSI/UL 844)
  • Zone 22
  • UL 844 hazardous locations
  • UL 1598 wet locations
  • UL 1598A marine outside type
  • UL 8750 LED safety
  • UL 924 emergency lighting
  • IEC/ATEX
  • CSA C22.2 No. 250.3
  • CSA C22.2 No. 137
  • ABS type approved
  • NEMA 4X
  • IP66
  • ETL Listed
  • Tested to LM79 and LM80
  • -40ºC to 65ºC ambient temperature

Standard Materials:

  • Body: 6061T5 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Driver body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: one-piece neoprene
  • Optional end brackets: stainless steel
  • Lens: polycarbonate
  • Hardware: stainless steel
