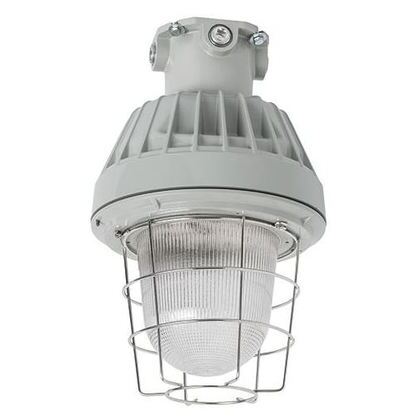

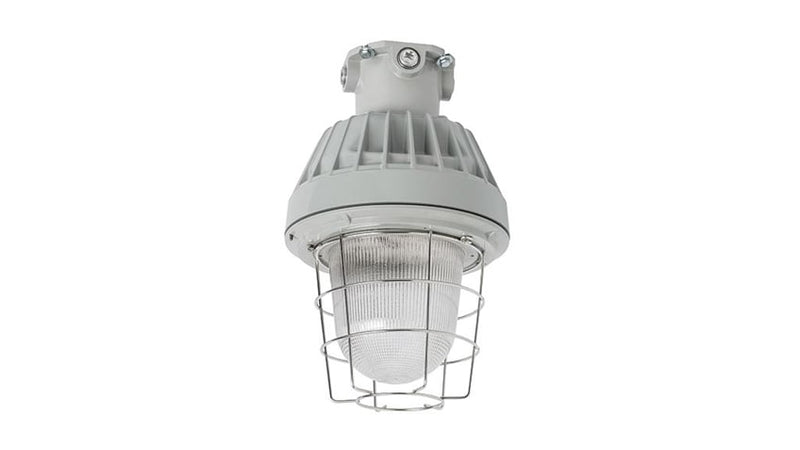

Rig-A-Lite SXPJ11L2UGGP Explosion-Proof LED Area Lighting, 96 Watt, 120-277V

Name: Rig-A-Lite SXPJ11L2UGGP Explosion-Proof LED Area Lighting, 96 Watt, 120-277V
Brand: Rig-A-Lite
SKU: SXPJ11L2UGGP
Price: 2915.25 USD
Availability: InStock

$2,915.25 - $2,915.25

$2,915.25

$2,915.25 - $2,915.25

$2,915.25

Explosion-Proof LED Area Lighting, 96 Watt, 120-277 Volt, Globe and Guard, 3/4 Inch Pendant Mount

Style	CIDI, CIIDI & CIII Explosionproof Area Light
Watts	96
Operating Voltage	120V – 277 V 50/60 Hz
Total Lumens	8,829
Lumens per Watt	94
CRI	73
CCT	4,863
Ambient Temperature	-20°C < Tamb <55°C

Standard Features:

Single-pin quick disconnect mount with double acme thread
Component access via single set screw
Field-replaceable LED circuit boards and drivers with quick disconnects
Wireless electromechanical terminal block

Additional Features:

Supplemental 10kV surge protection
Standard, angle and high-bay reflector options available
Pendant, ceiling, wall, stanchion and trunnion-mounting options
Optional stainless steel guard
5-year warranty

Classifications:

Class I, Division 1, Groups C and D
Class II, Division 1, Groups E, F and G
Class III
Class I, Zone 1, Groups IIA and IIB
UL 1598 wet locations8
UL 1598A marine outside type
UL 8750 LED safety
UL 844 hazardous locations
IEC/ATEX
cUL listed
LM79 and LM80
NEMA 4X
IP66
2.34 spacing criteria-compliant
55°C maximum ambient temperature
DLC Listed LED

Standard Materials:

Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
Gaskets: one-piece silicone
Lens: borosilicate glass
Hardware: stainless steel
