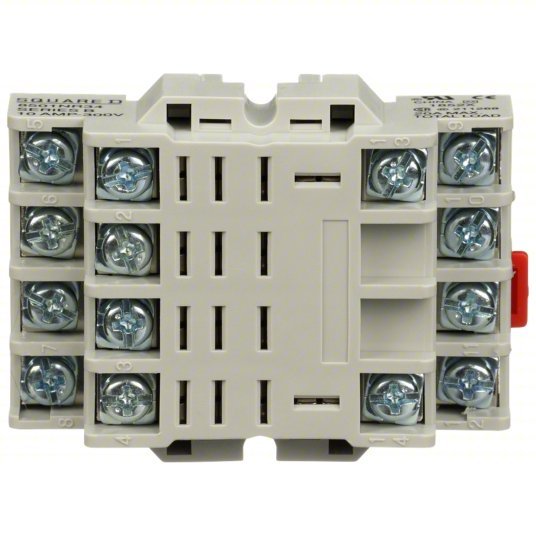

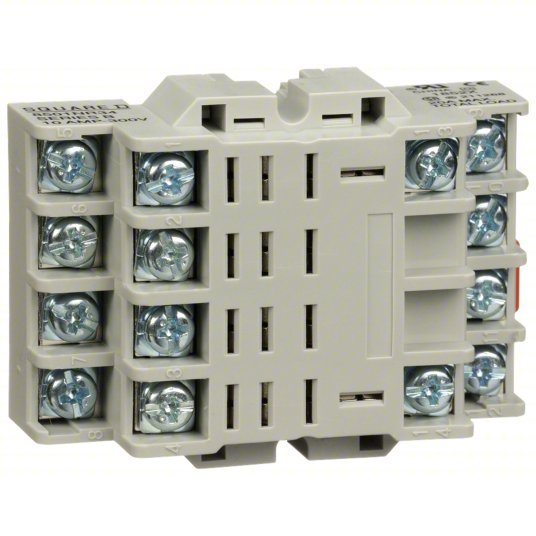

Schneider 8501NR34 Relay Socket 10 A Rating, DIN-Rail & Surface Socket Mounting, 14 Pins, F Socket, Elevator
Original price
$52.60
-
Original price
$52.60
Original price
$52.60
$52.60
-
$52.60
Current price
$52.60
Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.18 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Elevator, Mounting Style DIN Rail & Surface, Color White, Compatible Relays Square D 8501R Miniature Series, Contact Rating (AC) 10 A @ 300V, Depth 1.09 in, Height 2.74 in, Standards CE Certified, CSA Certified, UL Recognized, Status Indicator None, Width 1.98 in
| Item - Relay | Relay Socket |
| Socket Type - Relay | Elevator |
| Base Style - Relay Socket | Square |
| Contact Form - Relay Socket | 4PDT |
| Mounting - Relay | DIN Rail, Surface |
| Electrical Connection - Relay Socket | Screw Clamp |
| Number of Pins - Relay | 14 |
| Contact Rating - Relay Socket | 10A @ 300V AC |
| Color | White |
| Standards | CE Certified, CSA Certified, UL Recognized |
| Mounting | DIN Rail/Surface |
| Voltage | 250VAC |
| Number of Pins | 14 |
| Socket Style | Square |
| Contact Rating | 10A @ 300VAC |
| Status Indicator | None |
| Item | Relay Socket |
| Socket Code | F |
| Socket Type | Elevator |
| Terminals | Screw Clamp |
| Contact Form | 4PDT |
| Number of Terminals | 14 |
| Finger Safe | No |
| Mounting Style | DIN Rail & Surface |
| Contact Rating (AC) | 10 A @ 300V |
| Socket Mounting Style | DIN-Rail & Surface |
| Socket Design | Elevator |
| Current Rating | 10 A |
| Pin Shape | Flat |
| Socket Code Configurator | Square / 14 / 0.18 in |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw |
| Base Style | Square |
| Compatible Relays | Square D 8501R Miniature Series |
| Mounting Support | panel || DIN rail |
| Shape Of Pin | spade |
| Product Or Component Type | Relay Socket |
| Product Certifications | UL Recognized || CSA || CE |
| Pin Number | 14 |
| Line Rated Current | 10 A 300 V AC |
| Mounting Type | Panel; DIN rail |
| Certifications | UL Recognized; CSA; CE |
