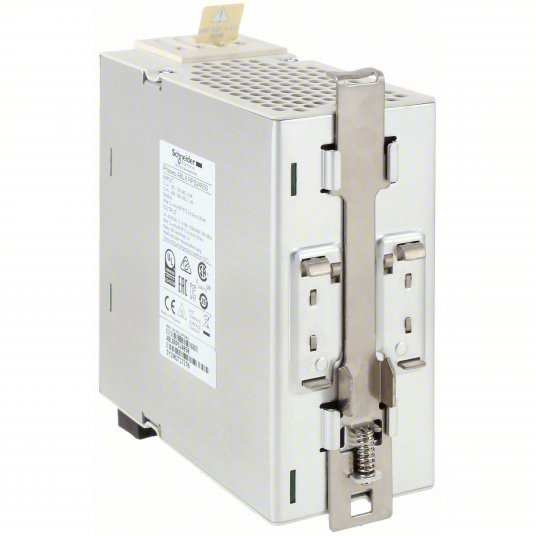

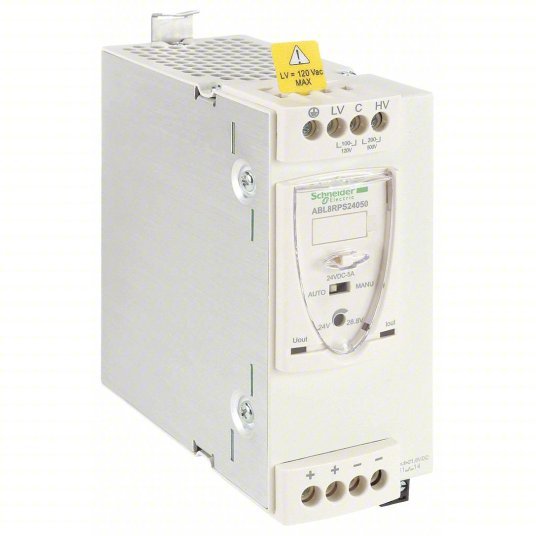

Schneider ABL8RPS24050 Power Supply 100 to 120 V AC/200 to 500 V AC, Single, 24V DC, 120W, 5
Schneider ABL8RPS24050 Power Supply 100 to 120 V AC/200 to 500 V AC, Single, 24V DC, 120W, 5
Schneider ABL8RPS24050 Power Supply 100 to 120 V AC/200 to 500 V AC, Single, 24V DC, 120W, 5
Schneider ABL8RPS24050 Power Supply 100 to 120 V AC/200 to 500 V AC, Single, 24V DC, 120W, 5

Schneider ABL8RPS24050 Power Supply 100 to 120 V AC/200 to 500 V AC, Single, 24V DC, 120W, 5

$432.49 - $432.49
$432.49
$432.49 - $432.49
$432.49
DC Power Supply, Input Voltage 100 to 120 V AC, 200 to 500 V AC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 5.27 in, Width 4.72 in, Depth 2.2 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 1.5, IP Rating 20, Output Noise Less Than or Equal to 200mV, Hold Up Time Greater Than 18 msec, Status Indicator Green/Orange/Red LED, NEMA Rating 1
Input Voltage 100/120V AC; 200/500V AC
Output Voltage 24V DC
Power Rating 120W
Output Amps 5A
Mounting DIN Rail
Case Material Plastic Case
Phase - Electrical Single
Style Switching
Hz 50/60 Hz
IP Rating 20
Output Noise Less Than or Equal to 200mV
Status Indicator Green/Orange/Red LED
NEMA Rating 1
Series ABL8
Standards CB scheme EN 60950-1, cCSAus, cUL us 508, e, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61204, EN 61204-3, IEC/EN 60950-1, RoHS, SELV
Operating Temp. Range -13 Degrees to 140 Degrees F
Hold Up Time Greater Than 18 msec
Features A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size
Peak Amps 1.5
Includes Power Factor Correction Filter
