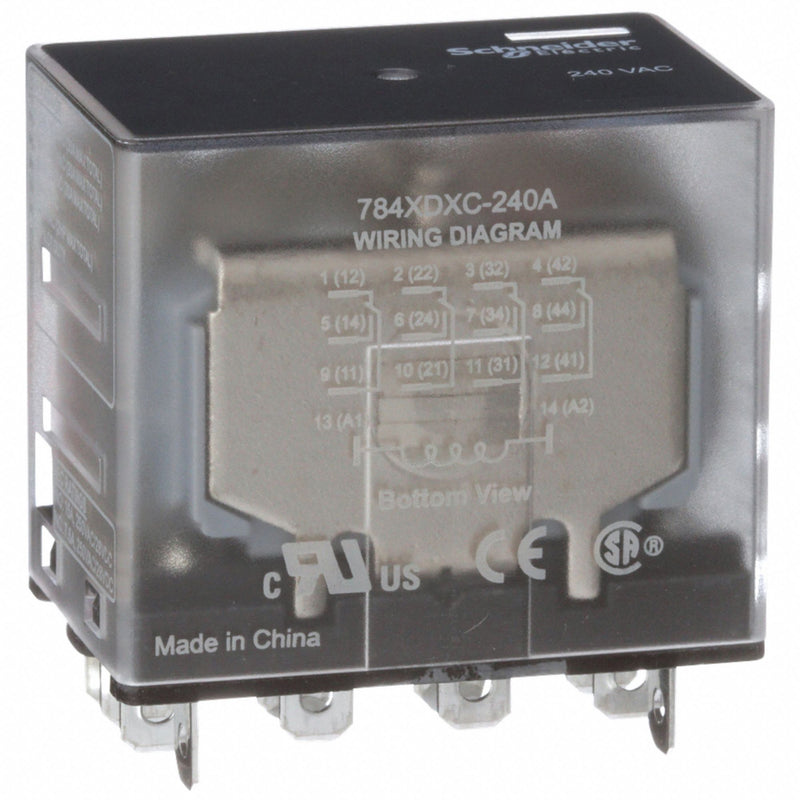

Schneider Electric 784XDXC-240A General Purpose Relay, Socket Mounted, 15 A Current Rating, 240V AC, 4PDT, F Socket
UPC: | Harmonization / Schedule B : 8536.49.0055
Country of Origin: China | Shipping Weight: 0.15 lbs
Original price
$27.78
-
Original price
$27.78
Original price
$27.78
$27.78
-
$27.78
Current price
$27.78
General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
| Mounting Style | Socket |
|---|---|
| Electrical Connection | Faston Terminal |
| Base Shape | Square |
| Number of Pins | 14 |
| Coil Voltage | 240V AC |
| Current Rating | 15 A |
| Contact Form | 4PDT |
| Contact Rating (AC) | 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V |
| Contact Rating (DC) | 15 A @ 28V (NO), 7.55 A @ 28V (NC) |
| Socket Code | F |
| Socket | Mfr. No. 70-784D14-1 |
| Features | Gold Flashed Contacts |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Power Consumption - Relay | 1.5 VA |
| Contact Material | Gold Flashed Silver Alloy |
| Standards | CE Certified, CSA Certified, UL Listed |
| Status Indicator | Mechanical Flag |
| Operating Current | 10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC) |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Horsepower @ 240V AC | 3/4 hp |
| Motor Rated | Yes |
| Weight | 2.5 oz |
| Response Time | 20 msec |
| Coil Resistance | 8,000 ohm |
| Maximum Switching Voltage | 250V AC, 300V DC |
| IP Rating | IP40 |
| Input Voltage | 240V AC |
| Minimum Operating Temperature | -40 Degrees F |
| Push-To-Test Method | No Button |
| Minimum Switching Current | 10 mA |
| Horsepower @ 120V AC | 1/2 hp |
| Dielectric Strength | 1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles |
| Series | 784 Series |
| Power Consumption | 1.6 W, 2.5 VA |
| Frequency | 50/60 Hz |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Operating Temperature | 131 Degrees F |
| For Use With | Automation Panels and Controls |
| Electrical Operating Durability | 100,000 |
| Vibration Resistance | +/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz) |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Ambient Air Temperature for Operation | -40 to 131°F (-40 to 55°C) |
| Product Certifications | UL; CE; CSA |
| Connections Terminals | Faston terminals |
| Contact Composition | 4 NO + 4 NC |
| Drop-out Voltage Threshold | >= 0.15 Uc AC; >= 0.1 Uc DC |
| Motor Power HP | 0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz |
| Shock Resistance | 15 gn in operation |
| Power consumption in W | 1.6 W DC |
| Ambient Air Temperature for Storage | -40 to 185°F (-40 to 85°C) |
| Product Range | Legacy |
| Operating Time | 20 ms operating; 20 ms tripping |
| Power consumption in VA | 2.5 VA AC |
| Type | Plug-In |
