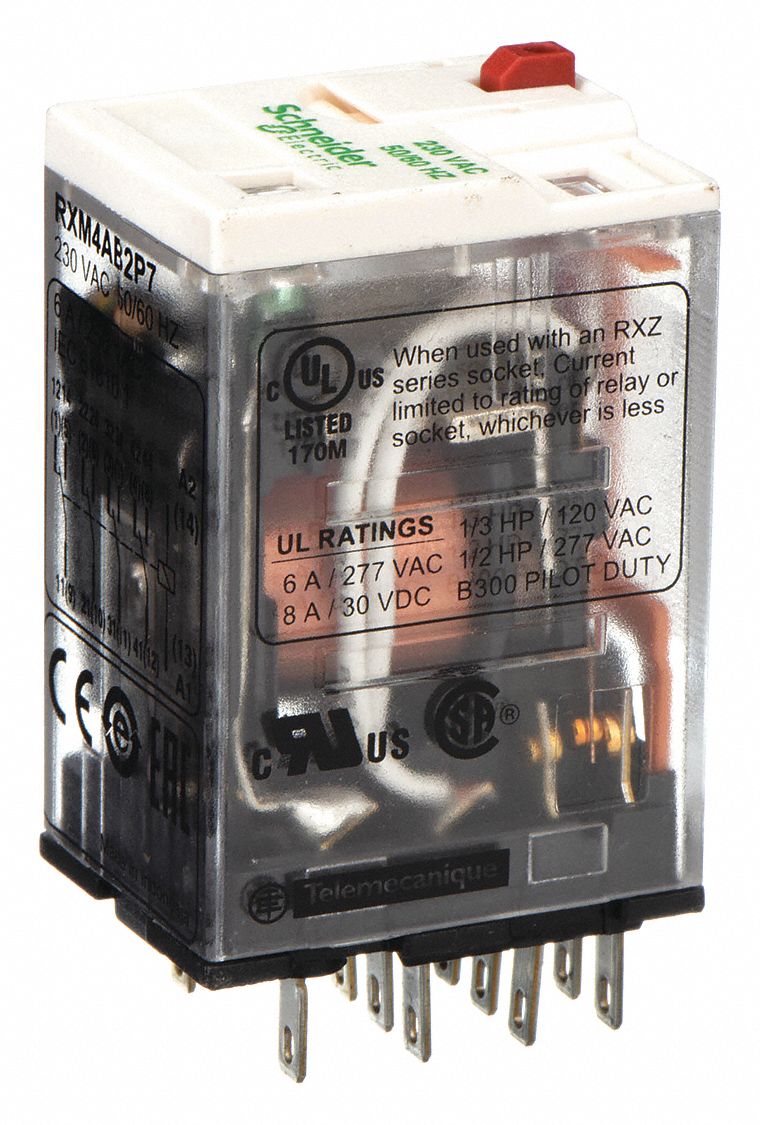

Schneider Electric RXM4AB2P7 Harmony RXM General Purpose Relay, Square, 4PDT 6 A, 14-Pin Plug-In, 230 VAC
Original price
$13.38
-
Original price
$13.38
Original price
$13.38
$13.38
-
$13.38
Current price
$13.38
General Purpose Relay, Base Shape Square, Coil Voltage 230V AC, Contact Form 4PDT, Current Rating 6 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 6 A @ 250V, Contact Rating (DC) 6 A @ 28V, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in
| Mounting Style | Plug In |
|---|---|
| Electrical Connection | Quick Connect |
| Base Shape | Square |
| Number of Pins | 14 |
| Coil Voltage | 230V AC |
| Current Rating | 6A |
| Contact Form | 4PDT |
| Contact Rating (AC) | 6 A @ 250V |
| Contact Rating (DC) | 6 A @ 28V |
| Power Consumption - Relay | 1.2 VA |
| Status Indicator | LED and Mechanical Flag |
| Standards | CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed |
| Contact Material | Silver Alloy |
| Socket | Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M |
| Socket Code | G |
| Features | Lockable Test Button; Status LED |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Input Voltage | 253V AC |
| Weight | 1.28 oz |
| Coil Resistance | 15,000 ohm |
| Push-To-Test Method | Lockable |
| Dielectric Strength | 1,300V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles |
| Electrical Operating Durability | 100,000 |
| For Use With | RXZE Socket |
| Response Time | 20 msec |
| Pin Shape | Flat |
| Sealing | Enclosed |
| IP Rating | IP40 |
| Mechanical Operating Durability | 10,000,000 |
| Power Consumption | 1.2 VA |
| Maximum Switching Voltage | 250V |
| Series | Harmony(TM) RXM Series |
| Minimum Switching Current | 10 mA |
| Frequency | 50/60 Hz |
| Operating Time | 20 ms |
| Switching Power | Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V |
| Continuous Output Current | 5 A |
| Control Type | Lockable test button |
| Control Circuit Voltage | 230 V AC 50/60 Hz |
| Device Presentation | Complete product |
| Ambient Air Temperature For Operation | -40 to 131F (-40 to 55C) |
| Maximum Switching Capacity | 1500 VA/168 W |
| Product Certifications | CE; CSA; GOST; UL; Lloyd's |
| Rated Insulation Voltage | 250 V IEC; 300 V CSA; 300 V UL |
| Average Coil Resistance | 15000 Ohm 20C +/- 15% |
| Pollution Degree | 2 |
| Resistive Rated Load | 6 A 250 V AC; 6 A 28 V DC |
| Contact Type and Composition | 4 C/O |
| Country of Origin | Indonesia |
