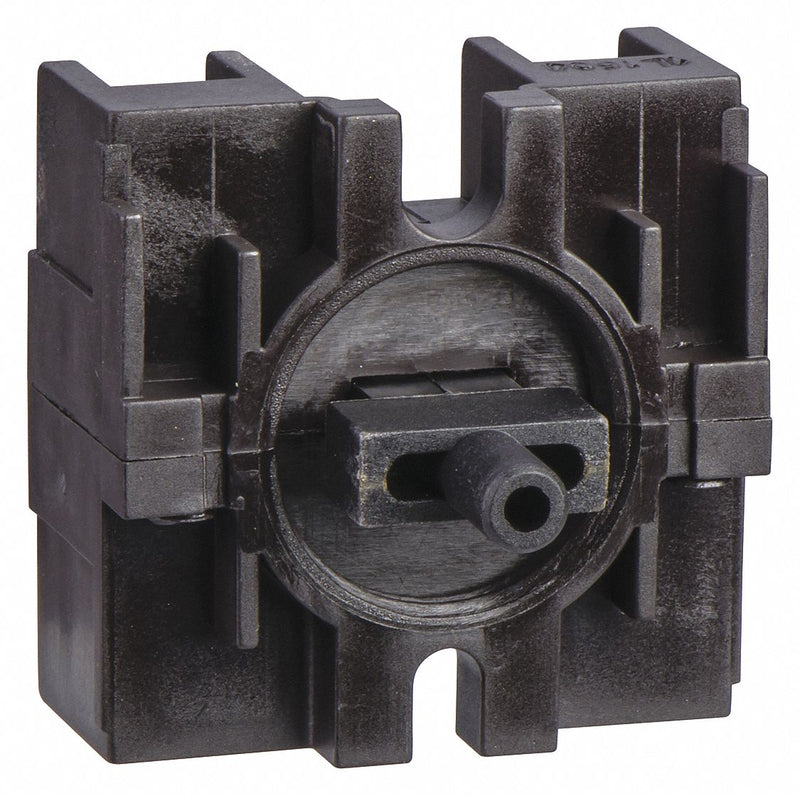

Schneider Electric XESB2011 Contact Block, XAB91/XACB/XACM Series

Schneider Electric XESB2011 Contact Block, XAB91/XACB/XACM Series

UPC: 785901289418 | Harmonization / Schedule B : 8538.90.6000

Country of Origin: Czechia | Shipping Weight: 0.06 lbs

$43.43 - $43.43
$43.43
$43.43 - $43.43
$43.43

Contact Block

Standards EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1
Mechanical Durability 1000000 cycles
Product Or Component Type contact block
Contact Block Application single speed
[Ithe] Conventional Enclosed Thermal Current 10 A
Terminal Identifier (13-14)NO || (11-12)NC
Electrical Circuit Type control circuit
Operating Force 25 N || 15 N
Mounting Of Block front mounting
Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6
Contact Block Type single
Mechanical Interlocking without mechanical interlock
Ambient Air Temperature For Operation -25-70°C
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Ambient Air Temperature For Storage -40-70°C
Type Of Operator spring return
Maximum Resistance Across Terminals 25 MOhm
Connections - Terminals screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage 500 V 3)IEC 60947-1
Rated Operational Power In Va 100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive
Component Name XESB
Electrical Shock Protection Class class II IEC 61140
Terminals Description Iso N°1 (3-4-1-2)OF
Contact Operation snap action
Rated Operational Power In W 140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C || 140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
Short-Circuit Protection 10 A fuse protection cartridge gG
Contact Code Designation A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Product Compatibility XACM || XACB || XAB91 to
Shock Resistance 100 gn IEC 60068-2-27
Conventional Enclosed Thermal Current 10 A
Terminals Description Iso N°1 (3-4-1-2)OF
AC Contact Rating 3 A @ 240 V
Compatible with Series XAB91, XACB, XACM
DC Contact Rating 0.27 A @ 250 V
Includes Mounting Block Mounting Block Included
Country of Origin Czechia
