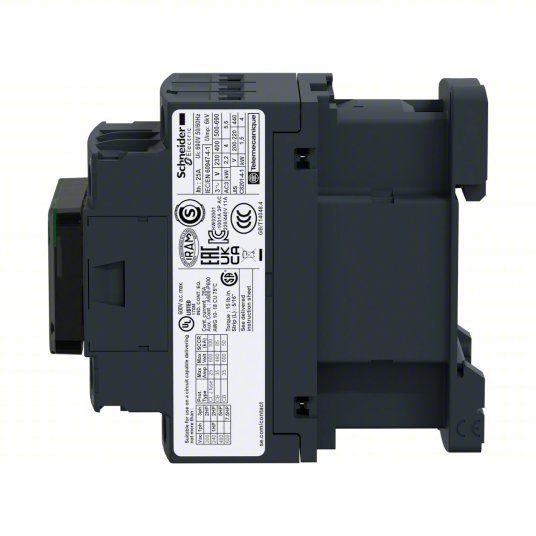

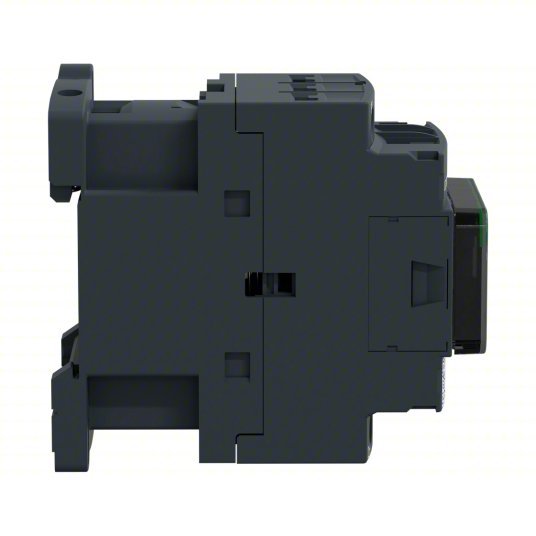

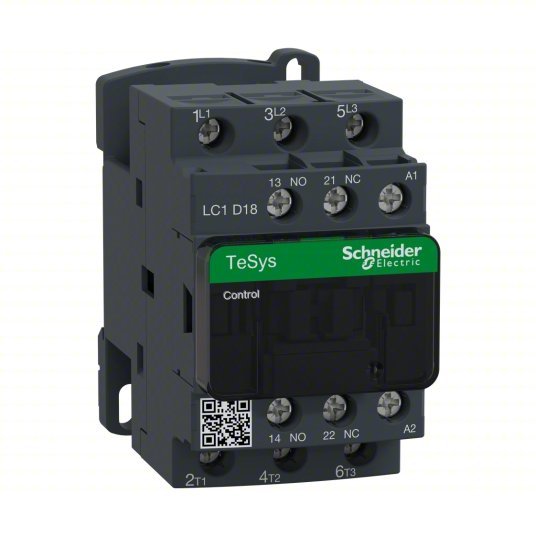

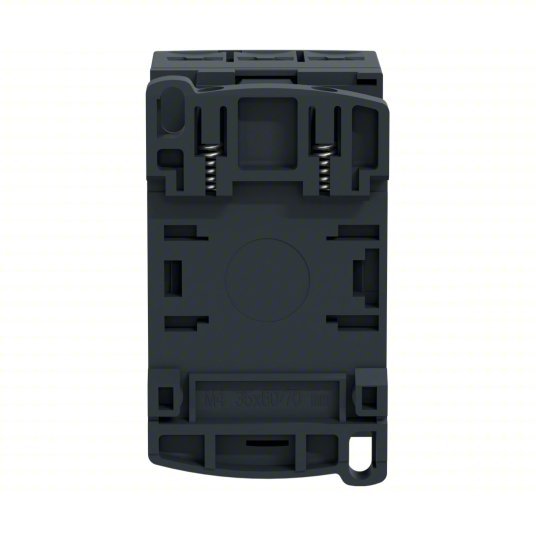

Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC
Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC

Schneider LC1D18F7 IEC Magnetic Contactor: Non-Reversing, 3 Poles, 18 A, 110V AC Coil, 1NO/1NC

$238.49 - $238.49
$238.49
$238.49 - $238.49
$238.49
IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 18 A, Reversing Capability Non-Reversing, Overall Height 3.03 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 5 hp
Full Load Amps-Inductive 18 A
Full Load Amps-Resistive 32 A
Number of Poles 3
Coil Volts 110 V AC
Reversing No
HP @ 1 Phase - 120V 1 hp
HP @ 1 Phase - 240V 3 hp
HP @ 3 Phase - 208V 5 hp
HP @ 3 Phase - 240V 5 hp
HP @ 3 Phase - 575V 15 hp
HP @ 3 Phase - 480V 10 hp
Enclosure NEMA Rating No Enclosure
Aux. Contact Configuration 1NO/1NC
Hz 50/60
Frame / Series / Class / Code TeSys
Series TeSys Deca
Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Auxiliary Contact Form 1NO/1NC
Operating Time 12 to 22 ms (Closing), 4 to 19 ms (Opening)
Application Motor Control, Resistive Load
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70 °C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60 °C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60 °C 60 Hz), 1 to 1.1 Uc (at 60 to 70 °C 50/60 Hz)
Features Without Built-In Suppressor Module
Overvoltage Category CAT III
Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Signalling Circuit Frequency 25 to 400 Hz
Electrical Connection Screw Clamp Terminals
Thermal Amperage 10 A (at 60 °C Signalling Circuit), 32 A (at 60 °C Power Circuit)
Tightening Torque 1.7 Nm
Switching Current 5 mA (Signalling Circuit)
Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
IP Rating IP20
Inrush VA 70 VA
Operating Speed 3600 cycles per hr
Net Weight 0.33 kg
Fuse Amps 10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Mounts On Plate, Rail
Electrical Durability 1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V); 1.65 Mcycles (18 A, AC-3e, Less than 440 V)
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Hold VA 7.5 VA (at 60 Hz 20 °C), 7 VA (at 50 Hz 20 °C)
Switching Voltage 17 V (Signalling Circuit)
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Impulse Withstand Voltage 6 kV
Watts Loss 2 to 3W
Max. Temperature 850 °C
Rated Breaking Capacity 300 A @ 440V
Rated Insulation Volts 600/690V
Rated Short-Time Withstand Current 145 A (at 40 °C for 10 s Power Circuit), 240 A (at 40 °C for 1 s Power Circuit), 40 A (at 40 °C for 10 min Power Circuit), 84 A (at 40 °C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Impedance 2.5 mOhm
Includes Protective Cover Yes
Mechanical Durability 15 Mcycles
Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Max. Operating Watts 4 kW (at 220 to 230V AC 50/60 Hz AC-3), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 415 to 440V AC 50/60 Hz AC-3), 10 kW (at 500V AC 50/60 Hz AC-3), 10 kW (at 660 to 690V AC 50/60 Hz AC-3), 4 kW (at 400V AC 50/60 Hz AC-4), 4 kW (at 220 to 230V AC 50/60 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 415 to 440V AC 50/60 Hz AC-3e), 10 kW (at 500V AC 50/60 Hz AC-3e), 10 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Fire Rating UL 94 V1
Rated Voltage 690V AC, 300V DC
Non-Overlap Time 1.5 ms
Includes Auxiliary Contacts Yes
Horsepower @ Three Phase - 600V AC 15 hp
Reversing Capability Non-Reversing
Contactor Style IEC
Minimum Operating Temperature -40 Degrees F
Number of Normally Open Main Contacts 3
Coil Voltage 110V AC
Mounting Style DIN Rail, Plate
Maximum Voltage Rating 690V AC
Frequency 50/60 Hz
Resistance Properties Fire Resistant, Insulation Resistant
Number of Auxillary Contacts 2
Embedded Surge Suppressor No
Horsepower @ Single Phase - 240V AC 3 hp
Full Load Current - Inductive 18 A
Phase Three
Mechanical Operating Durability 15,000,000
NEMA Enclosure Rating No Enclosure
Horsepower @ Single Phase - 120V AC 1 hp
Maximum Operating Temperature 140 Degrees F
Horsepower @ Three Phase - 240V AC 5 hp
Terminal Connection Type Screw Clamp Terminals
Electrical Operating Durability 1,000,000, 1,650,000
Horsepower @ Three Phase - 208V AC 5 hp
Horsepower @ Three Phase - 480V AC 10 hp
Product Certifications GL; RINA; UL; CCC; DNV; LROS (Lloyds register of shipping); CSA; GOST; BV; UKCA
Connections - Terminals Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in ² (1 to 2.5 mm ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1.5 to 6 mm ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1.5 to 6 mm ²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1 to 6 mm ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1 to 4 mm ²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.01 in ² (1.5 to 6 mm ²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in ² (1.5 to 6 mm ²) - cable stiffness: solid without cable end
Pole Contact Composition 3 NO
Rated Operational Current 18 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 32 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 18 A (at Less than 140 °F (60 °C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Compatibility Code LC1D
IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 300 A at 440 V for power circuit conforming to IEC 60947
Utilisation Category AC-1; AC-4; AC-3; AC-3e
Contact Compatibility M2
Protective Cover With
Permissible Ambient Air Temperature Around The Device -40 to 140 °F (-40 to 60 °C); 140 to 158 °F (60 to 70 °C) with derating
Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor open 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms)
Rated Impulse Withstand Voltage 6 kV IEC 60947
Fire Resistance 1562 °F (850 °C) IEC 60695-2-1
Operating Altitude 0 to 9842.52 ft (0 to 3000 m)
Inrush Power in VA 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)); 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Conventional Free Air Thermal Current 10 A (at 140 °F (60 °C)) for signalling circuit; 32 A (at 140 °F (60 °C)) for power circuit
Control Circuit Type AC 50/60 Hz standard
Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Auxiliary Contact Composition 1 NO + 1 NC
Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL
Maximum Horse Power Rating 1 hp at 115 V AC 50/60 Hz for 1 phase motors; 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 5 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 10 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 15 hp at 575/600 V AC 50/60 Hz for 3 phase motors
Poles Description 3P
Minimum Switching Current 5 mA for signalling circuit
Average Impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit
Pollution Degree 3
Heat Dissipation 2 to 3 W at 50/60 Hz
Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
Motor Power KW 4 kW at 220 to 230 V AC 50/60 Hz (AC-3); 7.5 kW at 380 to 400 V AC 50/60 Hz (AC-3); 9 kW at 415 to 440 V AC 50/60 Hz (AC-3); 10 kW at 500 V AC 50/60 Hz (AC-3); 10 kW at 660 to 690 V AC 50/60 Hz (AC-3); 4 kW at 400 V AC 50/60 Hz (AC-4); 4 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 7.5 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 9 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 10 kW at 500 V AC 50/60 Hz (AC-3e); 10 kW at 660 to 690 V AC 50/60 Hz (AC-3e)
Insulation Resistance Greater than 10 MOhm for signalling circuit
Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mounting Support Plate; Rail
Contactor Application Motor control; Resistive load
Power Dissipation Per Pole 2.5 W AC-1; 0.8 W AC-3; 0.8 W AC-3e
Rated Short Time Withstand Current 145 A 104 °F (40 °C) - 10 s for power circuit; 240 A 104 °F (40 °C) - 1 s for power circuit; 40 A 104 °F (40 °C) - 10 min for power circuit; 84 A 104 °F (40 °C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
Protective Treatment THIEC 60068-2-30
Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
Minimum Switching Voltage 17 V for signalling circuit
Flame Retardance V1 conforming to UL 94
Product Or Component Type Contactor
Control Circuit Voltage 110 V AC 50/60 Hz
IP Degree Of Protection IP20 front face IEC 60529
Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 50 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 35 A gG at Less than or Equal to 690 V coordination type 2 for power circuit
Hold-In Power Consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)); 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
