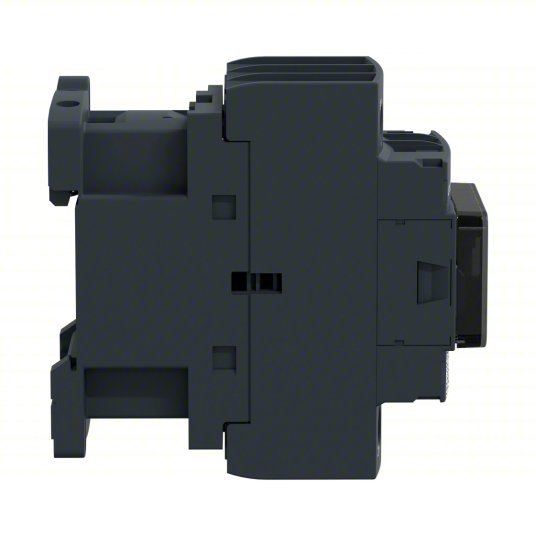

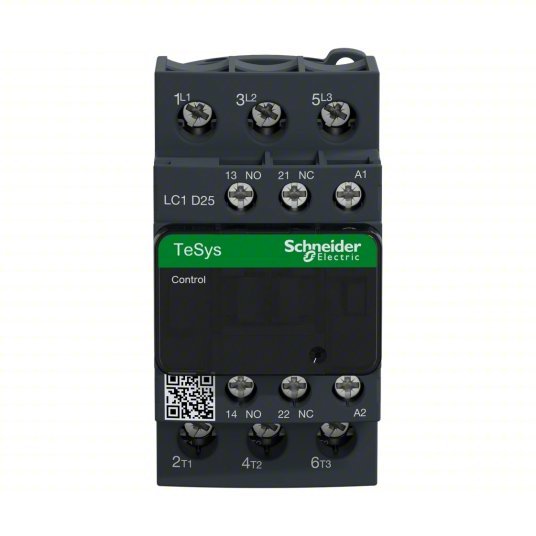

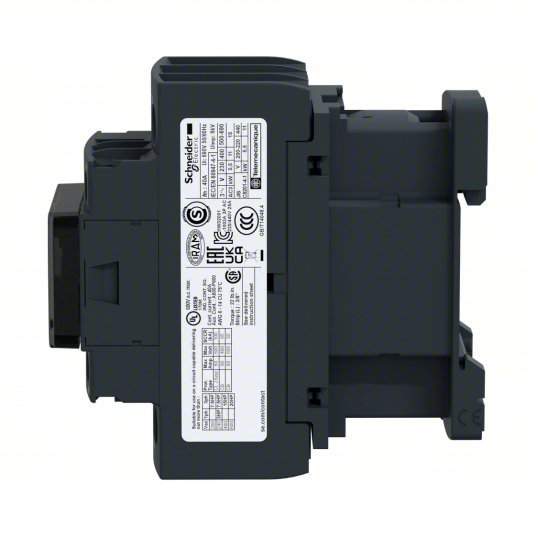

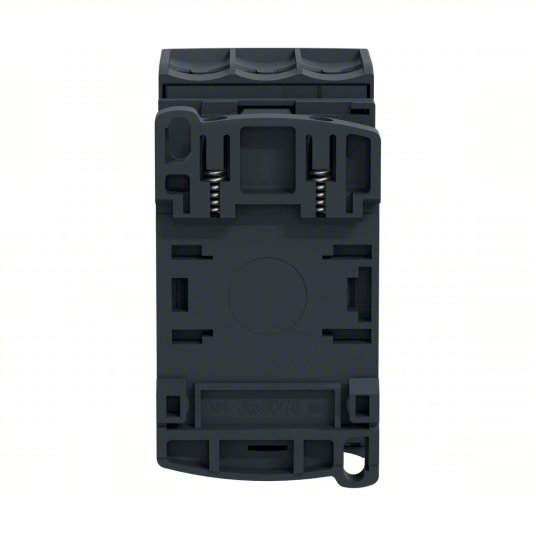

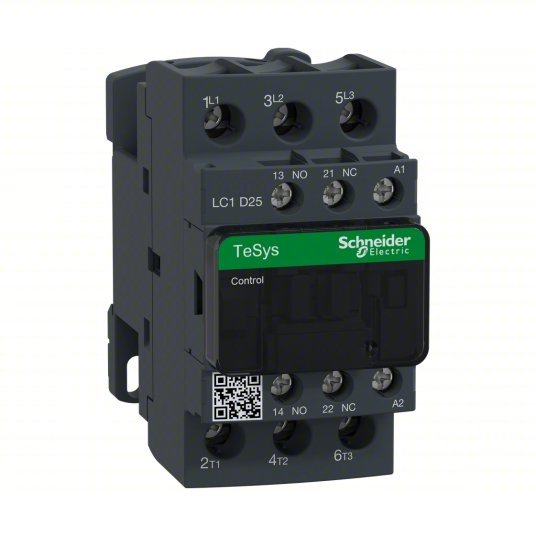

Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC
Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC

Schneider LC1D25G7 IEC Magnetic Contactor Non-Reversing, 3 Poles, 25 A, 120V AC Coil, 1NO/1NC

$284.55 - $284.55
$284.55
$284.55 - $284.55
$284.55
IEC contactor, TeSys Deca, nonreversing, 25A, 15HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Action Non-Reversing
Full Load Amps-Resistive 40 A
Number of Poles 3
Coil Volts 120 V AC
Reversing No
HP @ 1 Phase - 120V 2 hp
HP @ 1 Phase - 230V 3
HP @ 1 Phase - 240V 3 hp
HP @ 3 Phase - 208V 7 1/2 hp
HP @ 3 Phase - 575V 20 hp
HP @ 3 Phase - 240V 7 1/2 hp
HP @ 3 Phase - 480V 15 hp
Enclosure NEMA Rating No Enclosure
Aux. Contact Configuration 1NO/1NC
Hz 50/60
Auxiliary Contact Form 1NO/1NC
Frame / Series / Class / Code TeSys
Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Series TeSys Deca
Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)
Operating Time 12 to 22 ms (Closing), 4 to 19 ms (Opening)
Max. Temperature 850 °C
Net Weight 0.37 kg
Watts Loss 2 to 3W
Thermal Amperage 10 A (at 60 °C Signalling Circuit), 40 A (at 60 °C Power Circuit)
Fire Rating UL 94 V1
Rated Insulation Volts 600/690V
Electrical Connection Screw Clamp Terminals
Mechanical Durability 15 Mcycles
Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Impulse Withstand Voltage 6 kV
Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Inrush VA 70 VA
Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70 °C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60 °C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60 °C 60 Hz), 1 to 1.1 Uc (at 60 to 70 °C 50/60 Hz)
Tightening Torque 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Shock Resistance 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Mounts On Plate, Rail
Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)
Impedance 2 mOhm
Rated Voltage 690V AC, 300V DC
