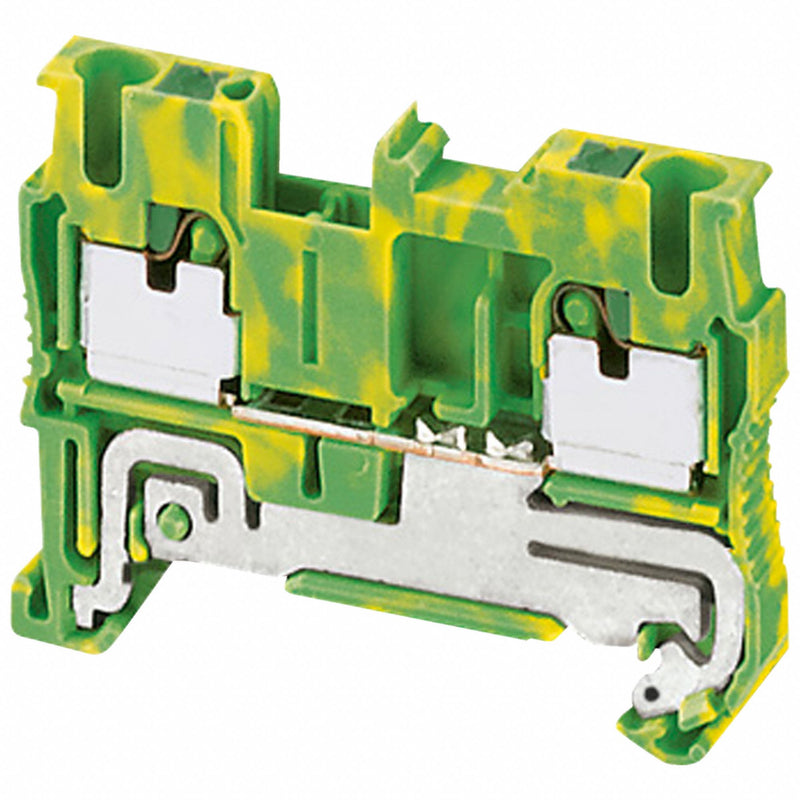

Schneider NSYTRP22PE Grounding Terminal Block, DIN Rail, Push-In, 1 Pole, 12-24 AWG, Green/Yellow
Original price
$9.87
-
Original price
$9.87
Original price
$9.87
$9.87
-
$9.87
Current price
$9.87
Grounding blocks, also known as earth terminal blocks, mount onto DIN rails to terminate ground connections and safely discharge excess electricity within an enclosed panel. They have yellow and/or green housing and are secured to DIN rails using a mechanical screw-clamp. Once connected, the DIN rail acts like a busbar, distributing a ground connection to other terminals that touch the same rail.
| Circuit Protection Type | None |
|---|---|
| Compatible with Product Type | Special Enclosures |
| Flammability Rating | V-0 |
| For Maximum Wire Size | 12 AWG |
| For Minimum Wire Size | 24 AWG |
| Color | Green; Yellow |
| Housing Material | Polyamide 6/6 |
| Maximum Operating Temperature | 266 Β°F |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | -40 Β°F |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Number of Tiers | 1 |
| Number of Wire Terminals | 2 |
| Overall Depth | 1.44 in |
| Overall Length | 1.91 in |
| Overall Width | 0.21 in |
| Standards | ATEX; CSA; cULus; EAC; GL; IECEx; LR; VDE |
| Strip Length | 10 mm |
| Terminal Block Type | Grounding |
| Wire Termination Style | Push-In |
| Country of Origin | China |
