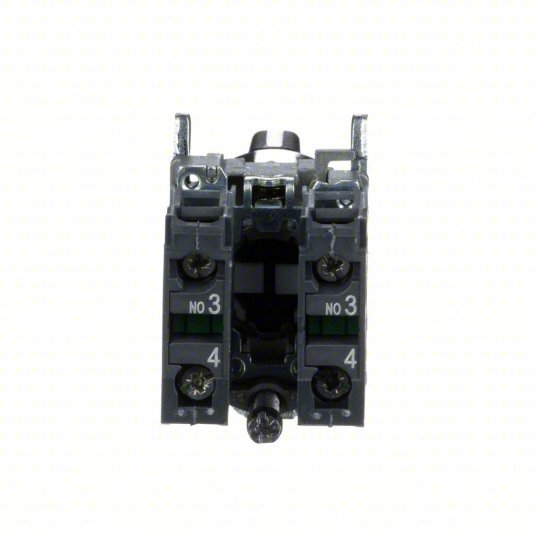

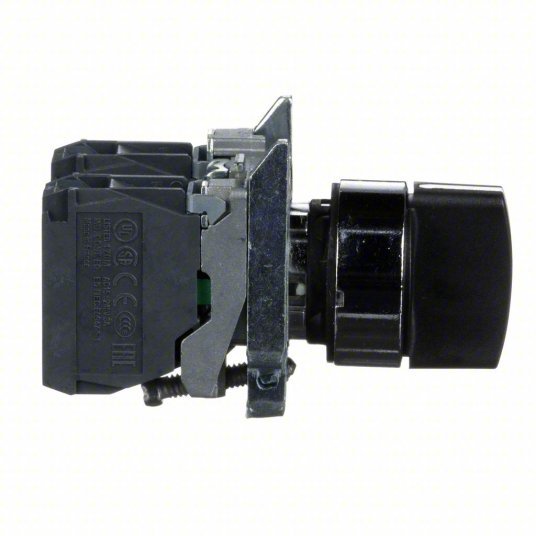

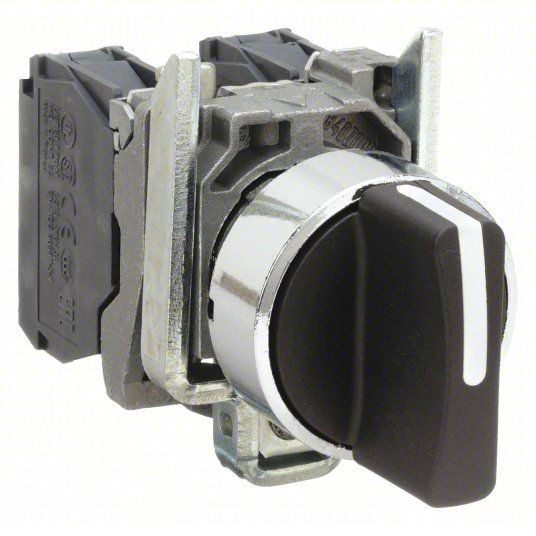

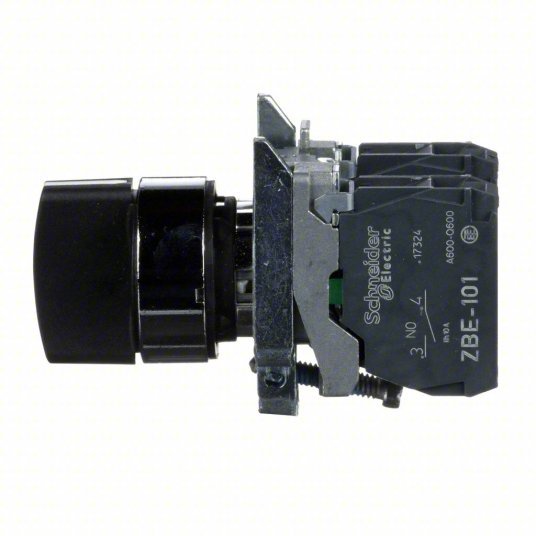

Schneider XB4BD33 Non-Illuminated Selector Switch 22 mm Size, 3 Position, Metal, 2NO, Lever
Original price
$77.96
-
Original price
$77.96
Original price
$77.96
$77.96
-
$77.96
Current price
$77.96
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 2NO |
| Action | Maintained / Maintained / Maintained |
| Operator Head Material | Polyamide |
| Cam | No Cam |
| Color | Black |
| NEMA Rating | 1, 12, 13, 2, 3, 4 |
| Bezel Material | Metal |
| Position | 3 |
| Key Removal | No Key |
| Bezel Color | Chrome |
| Standards | CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR |
| NEMA Contact Rating Designation | B600/Q600 |
| Switch Operation @ Position B | OO |
| Switch Operation @ Position A | XO |
| IP Rating | 65 |
| Contact Rating | 10A @ 600V AC |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position C | OX |
| Mechanical Durability | 1000000 cycles |
| Protective Treatment | TH |
| Torque Value | 0.14 N.m NO changing electrical state |
| Ambient Air Temperature For Storage | -40-70Β°C |
| Operator Profile | black standard handle |
| Shape Of Signaling Unit Head | round |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Fixing Collar Material | zamak |
| Product Certifications | GL || UL || LROS (Lloyds register of shipping) || CSA || BV || DNV |
| Head Type | standard |
| Operator Position Information | 3 positions +/- 45Β° |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mmΒ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmΒ² without cable end EN/IEC 60947-1 |
| Positive Opening | without |
| Overvoltage Category | class I IEC 60536 |
| Resistance To High Pressure Washer | 7000000 Pa 55Β°C 0.1 m |
| Ip Degree Of Protection | IP69 || IP69K || IP67 IEC 60529 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Product Or Component Type | selector switch |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Electrical Reliability | Ξ» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Ξ» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Short Name | XB4 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Contacts Type And Composition | 2 NO |
| Device Presentation | complete product |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Γ 4 mm || slotted flat Γ 5.5 mm |
| Contacts Usage | standard contacts |
| Contacts Material | silver alloy (Ag/Ni) |
| Contact Operation | slow-break |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Ambient Air Temperature For Operation | -40-70Β°C |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Terminals Description Iso NΒ°1 | (23-24)NO || (13-14)NO |
| Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Terminals Description ISO nΒ°1 | (23-24)NO; (13-14)NO |
| Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
