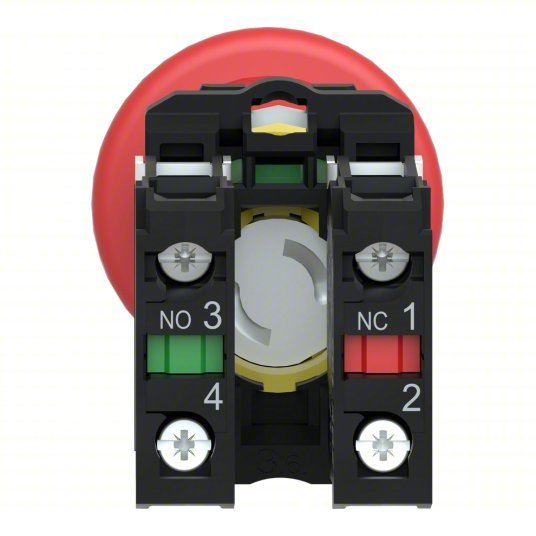

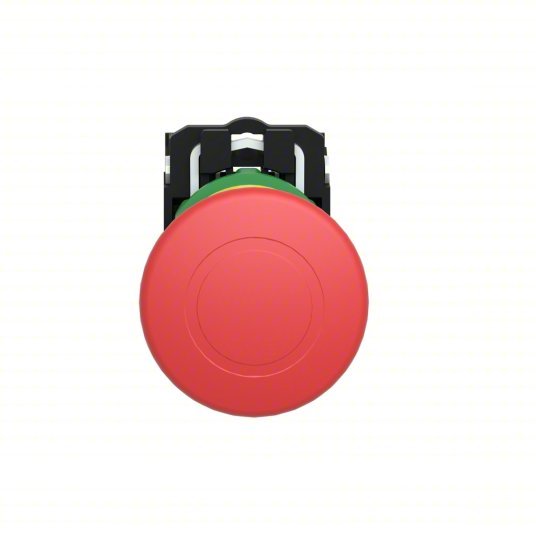

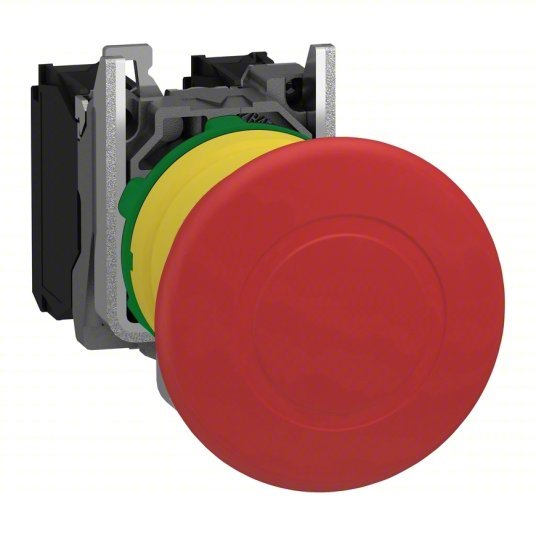

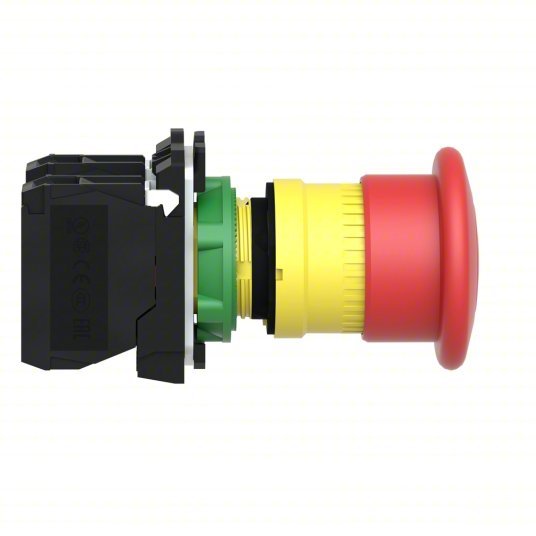

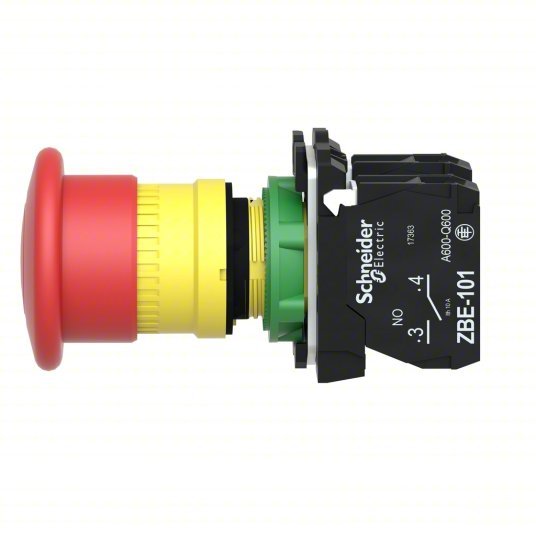

Schneider XB5AT845 Emergency Stop Push Button 22 mm Size, Maintained Push / Maintained Pull, Red
Original price
$125.80
-
Original price
$125.80
Original price
$125.80
$125.80
-
$125.80
Current price
$125.80
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Contact Form | 1NO/1NC |
| Color | Red |
| Bezel | Plastic |
| Legend | No legend |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Emergency Stop Push Button |
| Bezel Material | dark grey plastic |
| Material | Plastic |
| Basic Material | Plastic |
| Terminal Connection | Screw Clamp |
| IP Rating | 65 |
| Standards | CE, CSA, UL |
| Contacts Usage | standard contacts |
| Operating Force | 50 N |
| Product Certifications | BV || CSA || DNV || GL || UL Listed || LROS (Lloyds register of shipping) |
| Contact Operation | slow-break |
| Protective Treatment | TH |
| Electrical Reliability | Ξ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Ξ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Contacts Material | silver alloy (Ag/Ni) |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Γ 4 mm || slotted flat Γ 5.5 mm |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Mechanical Durability | 300000 cycles |
| Fixing Collar Material | plastic |
| Shape Of Signaling Unit Head | round |
| Resistance To High Pressure Washer | 7000000 Pa 55Β°C 0.1 m |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Head Type | standard |
| Device Presentation | complete product |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Device Short Name | XB5 |
| Ambient Air Temperature For Storage | -40-70Β°C |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Terminals Description Iso NΒ°1 | (13-14)NO || (11-12)NC |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Overvoltage Category | class II IEC 60536 |
| Operator Profile | red mushroom Γ 40 mm, unmarked |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Reset | push-pull |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mmΒ² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mmΒ² without cable end EN 60947-1 |
| Product Or Component Type | emergency stop push-button || emergency switching off push-button |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Ambient Air Temperature For Operation | -40-70Β°C |
