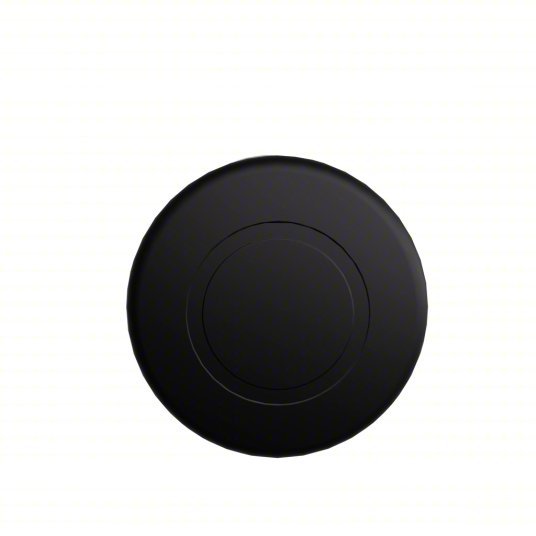

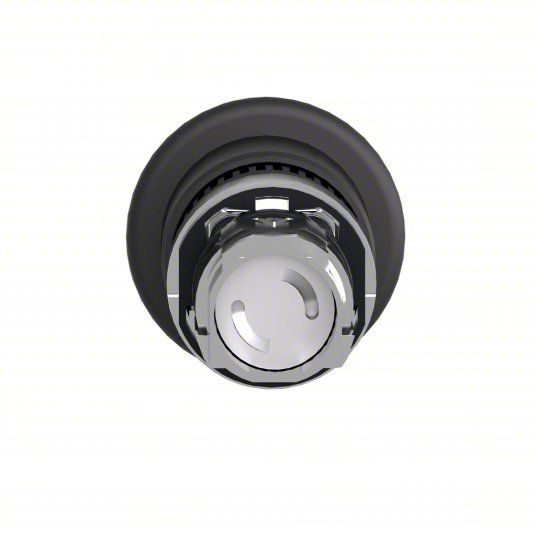

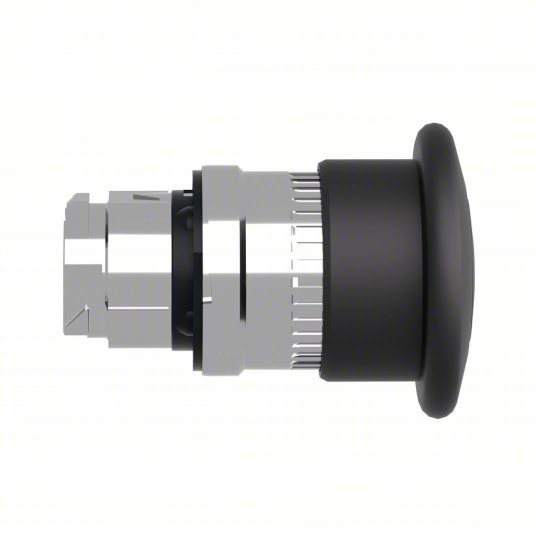

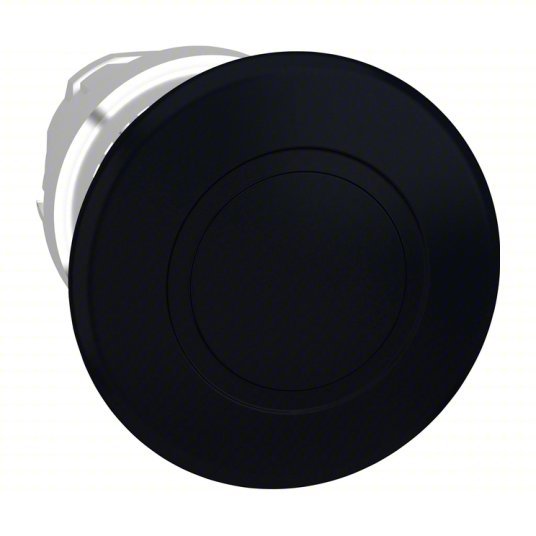

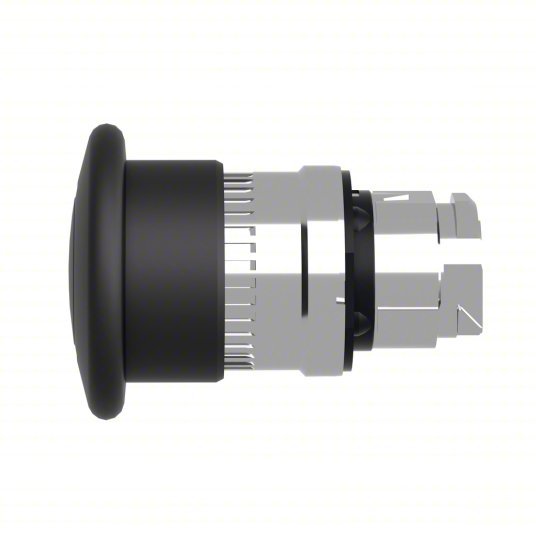

Schneider ZB4BT2 Push Button Operator: 22 mm Size, Maintained Push / Maintained Pull, Black, Metal
Original price
$57.52
-
Original price
$57.52
Original price
$57.52
$57.52
-
$57.52
Current price
$57.52
| Head Material | Aluminum-Zinc Alloy |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Color | Black |
| Legend | No Legend |
| Number of Operators | 1 |
| Item | Push Button operator |
| Bezel Material | Chrome Die Cast Aluminum |
| Standards | CE, CSA, RoHS, UL |
| Basic Material | Metal |
| Accessory Group | B |
| IP Rating | 66 |
| Product Type | Push Button Operator |
| Reset | push-pull |
| Ambient Air Temperature For Storage | -40-70°C |
| Electrical Composition Code | C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Protective Treatment | TH |
| Shape Of Signaling Unit Head | round |
| Head Type | standard |
| Operator Profile | black mushroom Ø 40 mm, unmarked |
| Ambient Air Temperature For Operation | -40-70°C |
| Overvoltage Category | class I IEC 60536 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Device Presentation | basic element |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Product Certifications | GL || LROS (Lloyds register of shipping) || UL Listed || DNV || CSA || BV |
| Mechanical Durability | 500000 cycles |
| Device Short Name | ZB4 |
| Product Or Component Type | head for non-illuminated push-button |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
