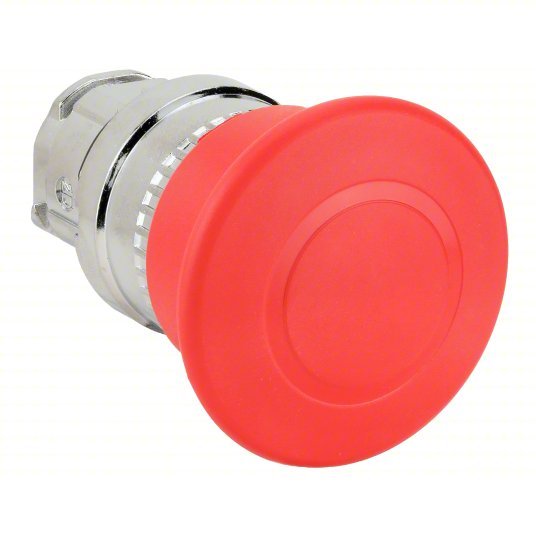

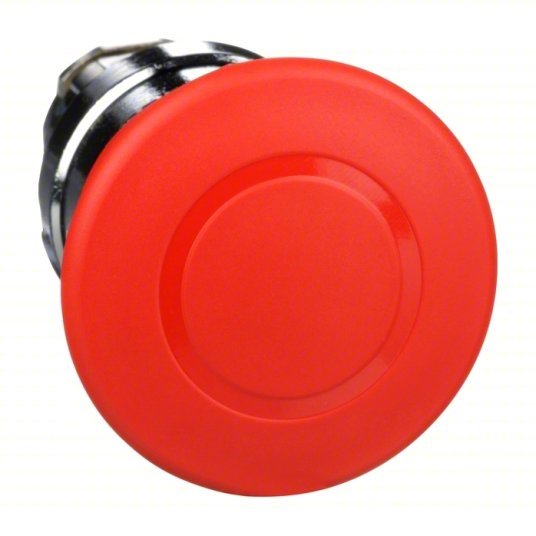

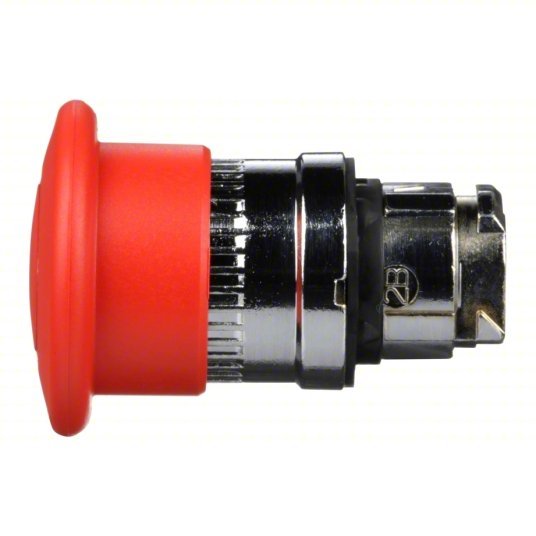

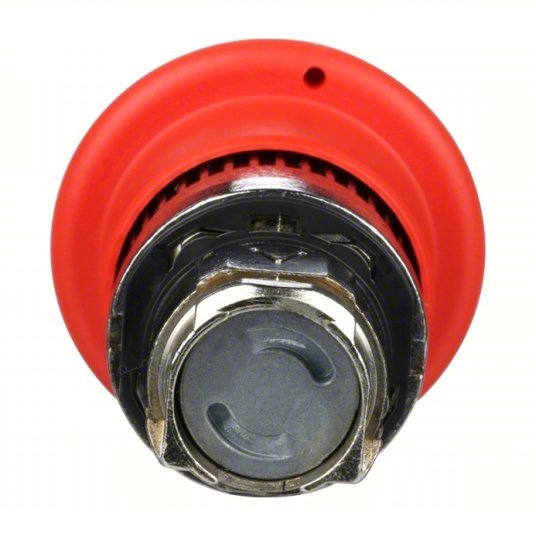

Schneider ZB4BT84 Push Button Operator 22 mm Size, Maintained Push / Maintained Pull, Red, Metal
Original price
$62.02
-
Original price
$62.02
Original price
$62.02
$62.02
-
$62.02
Current price
$62.02
| Head Material | Aluminum-Zinc Alloy |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Color | Red |
| Legend | No Legend |
| Number of Operators | 1 |
| Item | Push Button operator |
| Bezel Material | Chrome Die Cast Aluminum |
| Basic Material | Metal |
| IP Rating | 66 |
| Standards | CE, CSA, RoHS, UL |
| Product Type | Push Button Operator |
| Ambient Air Temperature For Operation | -40-70°C |
| Electrical Shock Protection Class | class I IEC 61140 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Protective Treatment | TH |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Head Type | standard |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Reset | push-pull |
| Device Presentation | basic element |
| Device Short Name | ZB4 |
| Electrical Composition Code | C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting |
| Mechanical Durability | 300000 cycles |
| Product Or Component Type | head for emergency switching off push-button |
| Product Certifications | LROS (Lloyds register of shipping) || GL || DNV || CSA || UL Listed || BV |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape Of Signaling Unit Head | round |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12 |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
