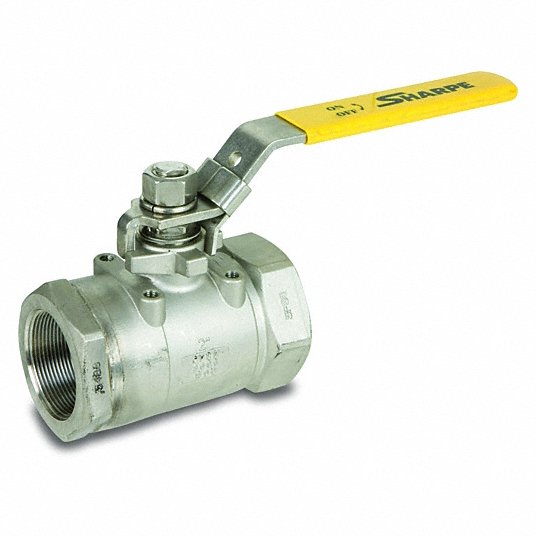

Sharpe 4353010780 Manual Two-Way Ball Valve 1/2 in, Stainless Steel, Straight Valve Body, FNPT x FNPT, PTFE

Manual Two-Way Ball Valve, Body Material Stainless Steel, For Media Air, Corrosive Chemicals, Non-Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port

Ball Material	316 Stainless Steel
Body Style	Straight
Ball Port Style	Full Port
Valve Ways	2-Way
Valve Structure	Two-Piece
For Media	Air, Corrosive Chemicals, Non-Potable Water
Connection Type	Thread x Thread
Handle Type	Lever
Features	Bi-Directional, Bubble Tight Shut-Off, Live-Loaded Stem Packing as Standard
Stem Material	630 Stainless Steel
Body Material	Stainless Steel
Stem Type	Blowout Resistant
Standards	ISO 5211, MSS SP-110, NACE MR0175 2002
Seat Material	Delrin, PEEK
Compliance	ISO 5211, NACE MR0175
Max. Pressure	3,000 PSI
Handle Material	Stainless Steel
Seal Material	PTFE
Handle - Locking	Locking
Color - Valve Handle	Yellow
Connection Type - Side 2	NPT
Included Mounting	ISO 5211 Actuator Mounting Pad
Operating Temperature - Minimum	0 Degrees F
Maximum Pressure - Steam	Not Rated
Connection Type - Side 1	NPT
Vacuum Service Rating	29 in Hg
Operating Temperature - Maximum	200 Degrees F
Connection Gender - Side 2	Female
Maximum Pressure - Combustible Gas	Not Rated
3-A Standard Compliance	Not Rated
Coefficient of Volume (Cv)	10
Connection Gender - Side 1	Female
Valve Series	50C7
