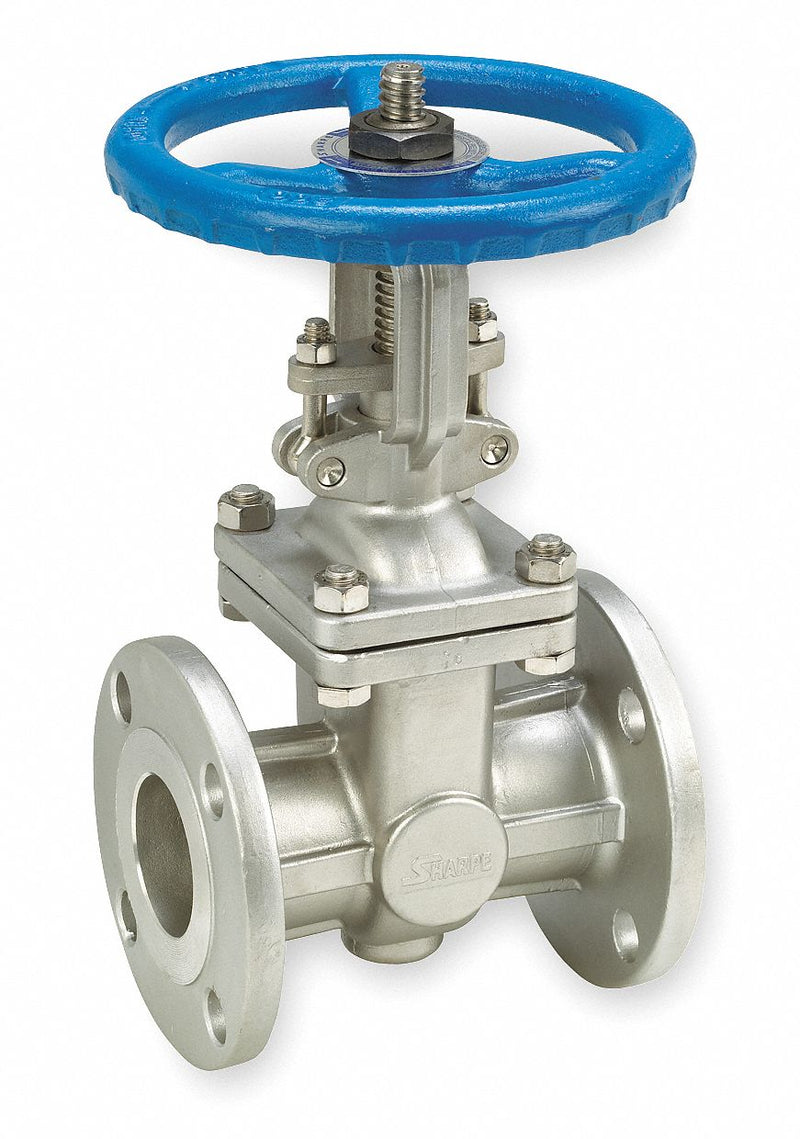

Sharpe 4371004840 Gate Valve, 2 in, 316 Stainless Steel, Rising, Class 150 Flange, 275 psi Max Pressure CWP
Original price
$1,659.60
-
Original price
$1,659.60
Original price
$1,659.60
$1,659.60
-
$1,659.60
Current price
$1,659.60
Gate Valve, For Media Steam, Water, Body Material 316 Stainless Steel, Nominal Valve Size 2 in, ANSI Flange Class Class 150, Maximum Pressure - Operating 275 psi, Stem Type Rising, Wedge Style Flexible, Seat Material Stainless Steel, Seal Material RPTFE, Handle Type Wheel.
| For Media | Steam, Water |
| Body Material | 316 Stainless Steel |
| Nominal Valve Size | 2 in |
| Connection Type | Flanged |
| ANSI Flange Class | Class 150 |
| Number of Flange Bolt Holes | 4 |
| Max. Pressure (CWP) | 275 psi |
| Operating Temperature | -20 to 450 °F |
| Stem Type | Rising |
| Stem Material | 316 Stainless Steel |
| Wedge Style | Flexible |
| Wedge Material | CF8M Stainless Steel |
| Seat Material | Stainless Steel |
| Seal Material | RPTFE |
| Handle Type | Wheel |
| Handle Material | Ductile Iron |
| Bonnet Material | Stainless Steel |
| Bonnet Style | Bolted |
| Standards | API 598, API 603, ASME B16.34 |
