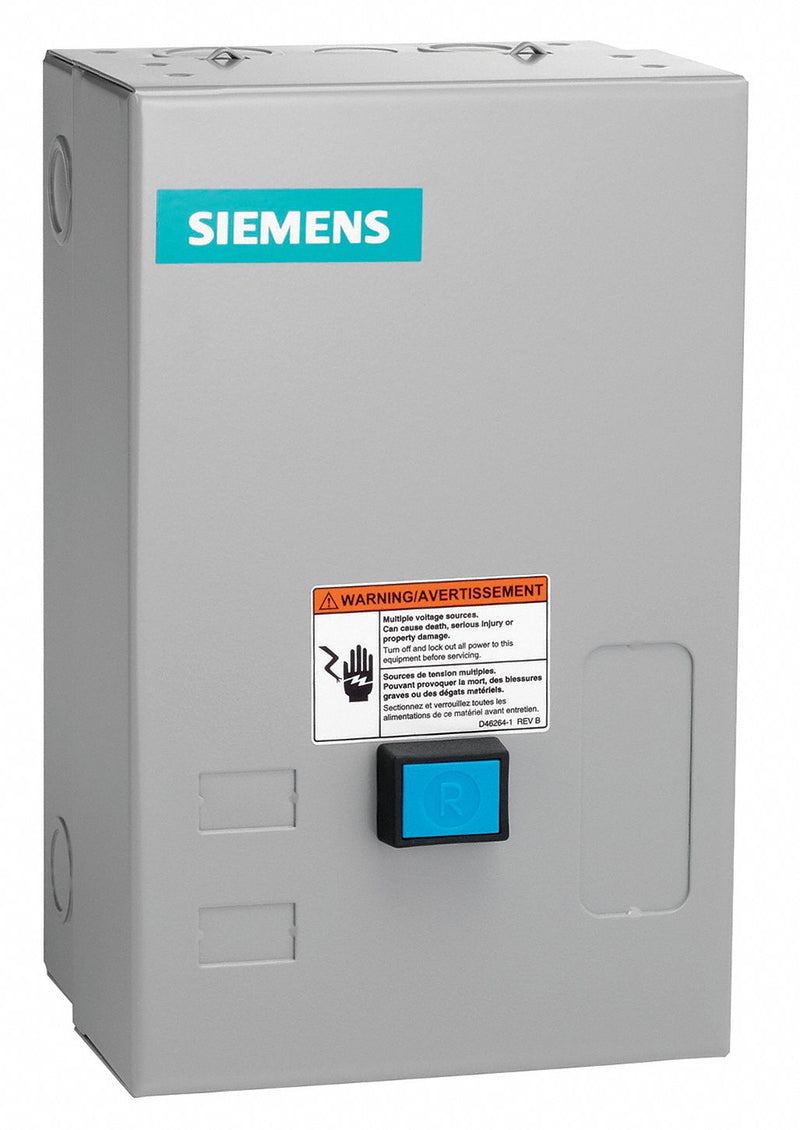

Siemens 14IUH32BA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 3-1/2, 115 A
UPC: 040892541175 | Harmonization / Schedule B : 8536.50.4000
Country of Origin: United States | Shipping Weight: 25.85 lbs
Original price
$4,272.70
-
Original price
$4,272.70
Original price
$4,272.70
$4,272.70
-
$4,272.70
Current price
$4,272.70
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 200 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 50 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC
| NEMA Size | 3-1/2 |
|---|---|
| Overall Width | 12 in |
| Overall Depth | 8 in |
| Mounting Hole Diameter | 0.28 in |
| Overall Height | 20 in |
| Auxiliary Contact Form | 1NO |
| Coil Voltage | 120V-240V AC |
| Number of Poles | 3 |
| Full Load Current - Inductive | 200 A |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw |
| Number of Auxillary Contacts | 1 |
| Standards | CSA 22.2 No.14, NEMA ICS 2, UL 508 |
| HP @ 3 Phase - 575V | 75 hp |
| Minimum Operating Temperature | -4 Degrees F |
| Response Time | 14 to 19 msec (OFF-Delay Time), 26 to 41 msec (ON-Delay Time) |
| Mounting Style | Surface |
| Mechanical Operating Durability | 50,000,000 |
| Overload Protection Type | Electronic |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 240V AC | 40 hp |
| Maximum Voltage Rating | 600V AC |
| Current AC | 115 A |
| Starter Style | NEMA |
| Frequency | 60 Hz |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 208V AC | 30 hp |
| Maximum Operating Temperature | 104 Degrees F |
| Minimum Overload Relay Current Setting | 50 A |
| Phase | Three |
| Maximum Overload Relay Current Setting | 200 A |
| Mounting Postion | Vertical |
| Auxiliary Contact Module Capacity | 7 |
| Trip Class | 5/10/20/30 |
| Horsepower @ Three Phase - 600V AC | 75 hp |
| Series | FVNR |
| Horsepower @ Three Phase - 480V AC | 75 hp |
| Country of Origin | United States |
