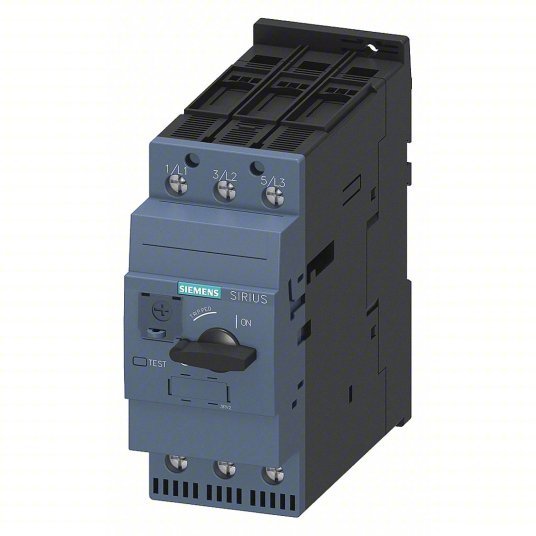

Siemens 3RV20314JA10 Manual Motor Starter Non-Reversing, 3 Poles, 65 A, Thermal Protection, Selector Switch

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 5 hp, Horsepower @ Single Phase - 240V AC 15 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 65 A, Horsepower @ Three Phase - 208V AC 20 hp, Horsepower @ Three Phase - 240V AC 25 hp, Horsepower @ Three Phase - 480V AC 50 hp, Series Sirius 3RV20, Horsepower @ Three Phase - 600V AC 60 hp, Maximum Overload Relay Current Setting 65 A

Operator	Selector Switch
Enclosure NEMA Rating	No Enclosure
Amps AC	54 to 65
Number of Poles	3
Max. Voltage	690V AC
Pilot Light	Yes
Standards	Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
Overload Relay Amp Setting	54 to 65A
Phase Loss Sensitivity	Yes
HP @ 3 Phase - 480V	50 hp
HP @ 1 Phase - 120V	5 hp
HP @ 3 Phase - 575V	60 hp
HP @ 1 Phase - 230V	15 hp
Description/Special Features	Self Protected Combination Motor Controllers
Frame / Series / Class / Code	S2
HP @ 3 Phase - 240V	25 hp
HP @ 3 Phase - 208V	20 hp
Power loss per pole, current-dependent [PlIp]	8.7 watt
max. rated operating voltage	690 volt
Rated operating power with AC-3, 400 V	30 kilowatt
Sensitive to phase failure	Yes
Pole number	3
Integrated undervoltage tripper present	No
description of product type	3RV2
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz	65000 ampere
Release system	magnetic
Rated current [In] for the power loss specification	65 ampere
Rated operating power with AC-3, 230 V	19 kilowatt
Protection type IP	IP20
Rated permanent current Iu	65 ampere
Connection type	Screw connection
Greatest value of overload release adjustment range	65 ampere
Lowest value of setting range for overload tripper	54 ampere
Manner of using	Toggle
min. rated operating voltage	690 volt
Integrated auxiliary switch present	No
Overload Protection Type	Thermal
Mounting Style	DIN Rail
Minimum Overload Relay Current Setting	54 A
Horsepower @ Three Phase - 208V AC	20 hp
Starter Style	IEC
Horsepower @ Single Phase - 120V AC	5 hp
Phase	Three
Horsepower @ Three Phase - 480V AC	50 hp
Current AC	65 A
Minimum Operating Temperature	-4 Degrees F
Maximum Operating Temperature	140 Degrees F
Horsepower @ Three Phase - 600V AC	60 hp
Mechanical Operating Durability	100,000
Maximum Overload Relay Current Setting	65 A
NEMA Enclosure Rating	No Enclosure
Horsepower @ Three Phase - 240V AC	25 hp
Series	Sirius 3RV20
IP Rating	IP20
Frequency	50/60 Hz
Maximum Voltage Rating	690V AC
Terminal Connection Type	Screw Terminals
Electrical Operating Durability	100,000
Horsepower @ Single Phase - 240V AC	15 hp
Includes Pilot Light	No
