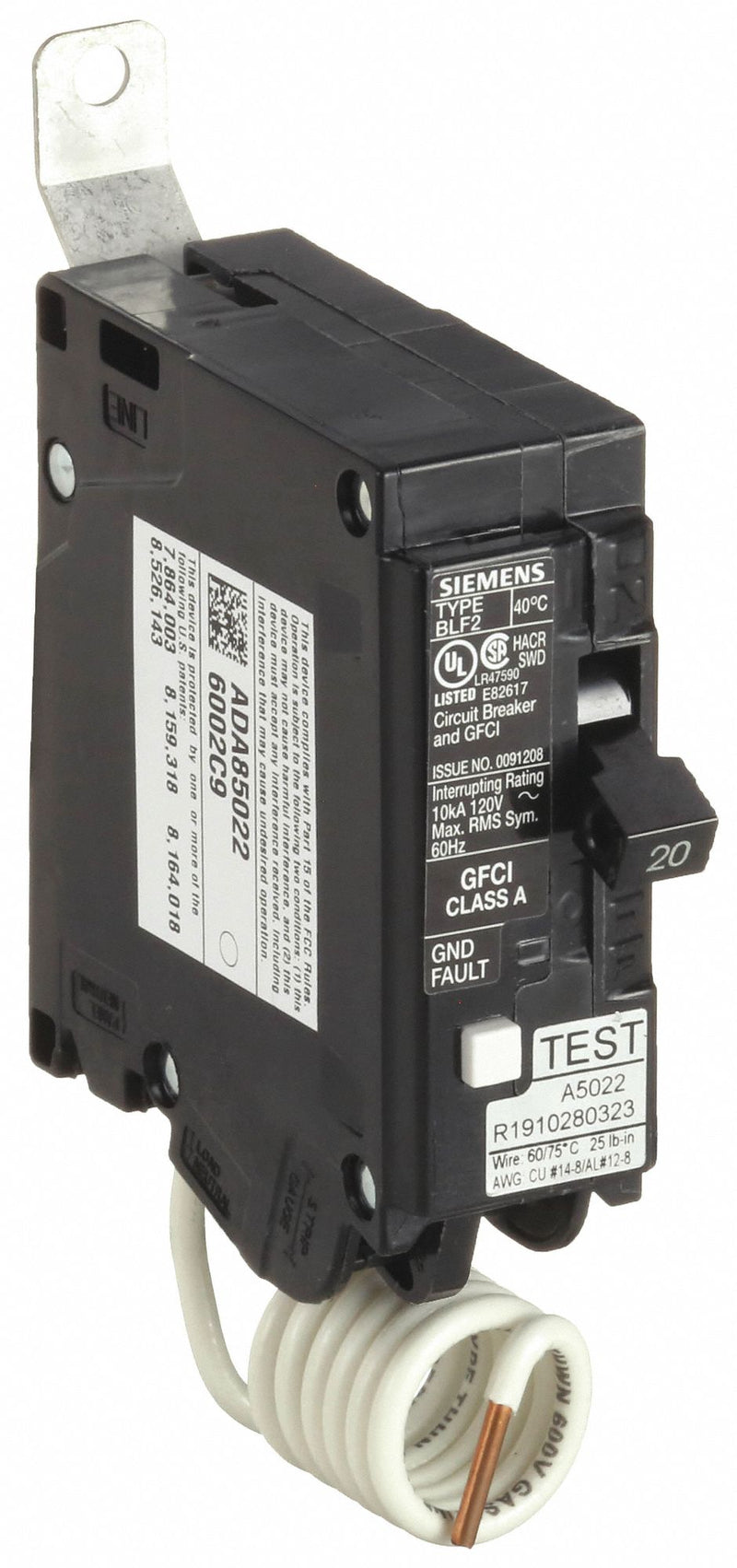

Siemens BF120A Miniature Circuit Breaker, GFCI, 20 A, 1 Pole, 120V AC, BF Series, 10 kA AIR
Original price
$430.55
-
Original price
$430.55
Original price
$430.55
$430.55
-
$430.55
Current price
$430.55
Miniature Circuit Breaker, 20 A, 120V AC, Ground Fault Circuit Interrupter, 1 Pole, Toggle Actuator, Bolt-On Mount, Single Phase, Series BF, 10kA AIR at 120V AC, For Use With Siemens Panelboards, Lug Terminals, Frame Size 60A/BLHF, Length 3.56 in, Width 1 in, Depth 3 in, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 10 AWG.
| Series | BF |
|---|---|
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120V AC |
| Terminal Connection | Lugs |
| DC Voltage Rating | Not Rated |
| Standards | CSA Certified, HACR Rated, NOM Certified, UL Listed |
| For Use With | Siemens Panelboards |
| Voltage | 120V AC |
| Country of Origin | Philippines |
