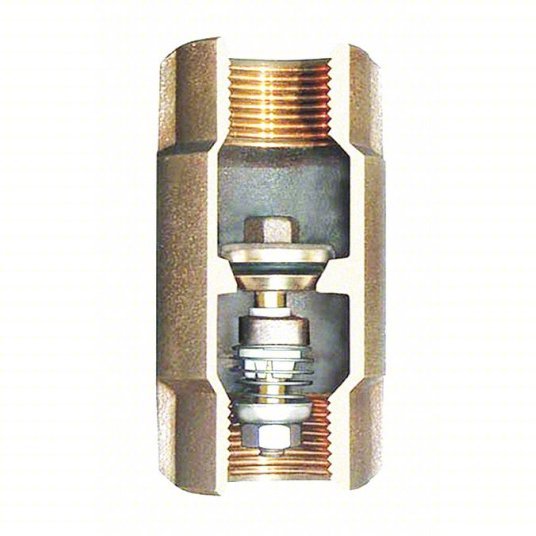

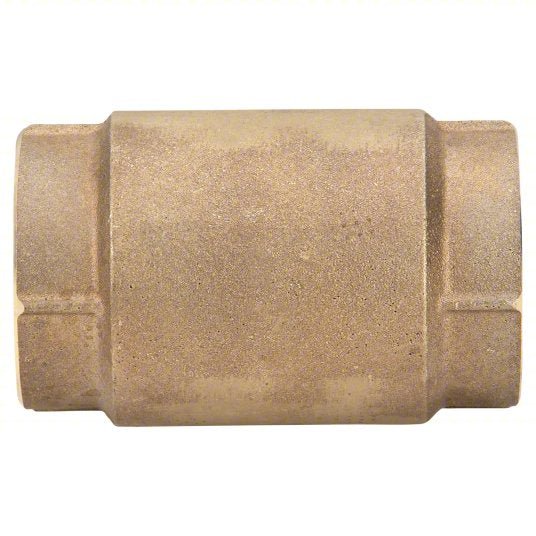

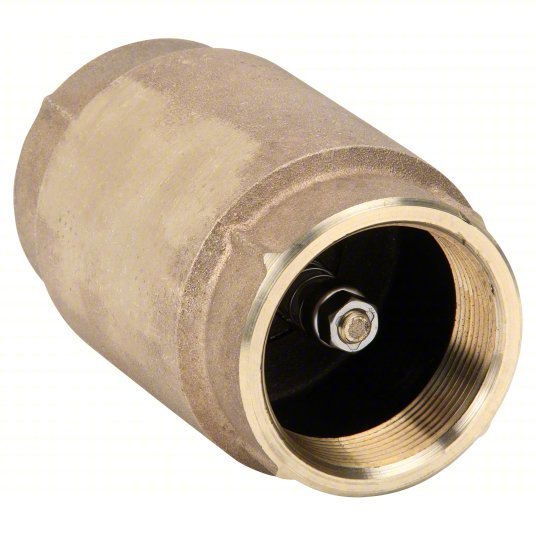

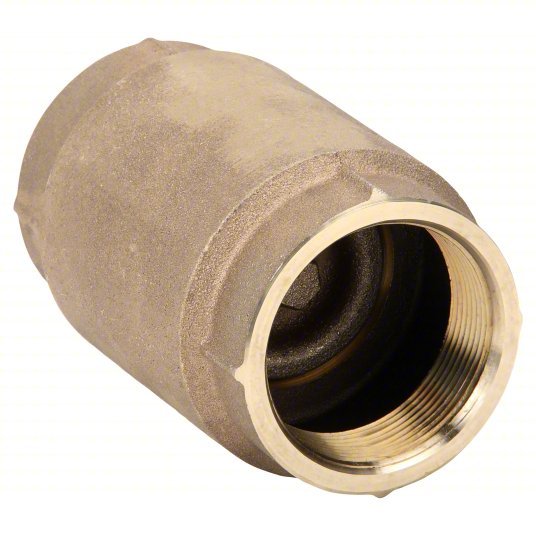

Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female
Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female

Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female

$210.25 - $210.25
$210.25
$210.25 - $210.25
$210.25

Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Bronze, Pipe or Tube Size 2 in, Connection Type FNPT x FNPT, Cracking Pressure 2 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 190 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Seat Material Bronze, Spring Material Stainless Steel, Application - Valves General Purpose, Length 3 1/4 in

Connection Type FNPT x FNPT
Body Material Silicon Bronze
UPC 008391019472
Max. Temp. - Valves 190 Degrees F
Application - Valves General Purpose
Seat Material Bronze
Cracking Pressure 2 psi
Max. Pressure 600 psi
Cracking Pressure - Check Valves 2.000 psi
Standards NSF/ANSI 372, NSF 61, Certified Lead Free
Seal Material - Check Valves Buna-N
Max. Steam Pressure 400 psi
Material of Construction Bronze
Item Spring Check Valve
Max. Temp. 190 Degrees F
Max. Steam Pressure - Valves Not Rated
Spring Material Stainless Steel
Seal Material Buna N
Mechanism and Body Design Inline Spring
Max. Water Pressure 400 psi
Mounting Position Any
Max. Water Pressure - Valves 400 psi
Cap to Inlet Center 1-1/2"
Mounting Orientation - Check Valves Horizontal, Vertical
Flow Design Single
Spring Material - Check Valves Stainless Steel
Seat Material - Check Valves Bronze
Connection Type - Check Valves FNPT x FNPT
Body Material - Valves Bronze
Compliance NSF 372, NSF 61 Certified, California Prop 68
Mounting Orientation Horizontal, Vertical
For Media Water
Maximum Pressure - Steam Not Rated
Check Mechanism Poppet
Check Mechanism Material 304 Stainless Steel
Valve Body Style Inline
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 190 Degrees F
NSF Certifications for Food and Drinking Water NSF 61
Connection Gender - Side 2 Female
Maximum Pressure - Operating 600 psi
Vacuum Service Rating Not Rated
Connection Gender - Side 1 Female
Manufacturer Warranty 1 yr
Connection Type - Side 1 NPT
Silent Check Standard
Connection Type - Side 2 NPT
Valve Series 500 SB
