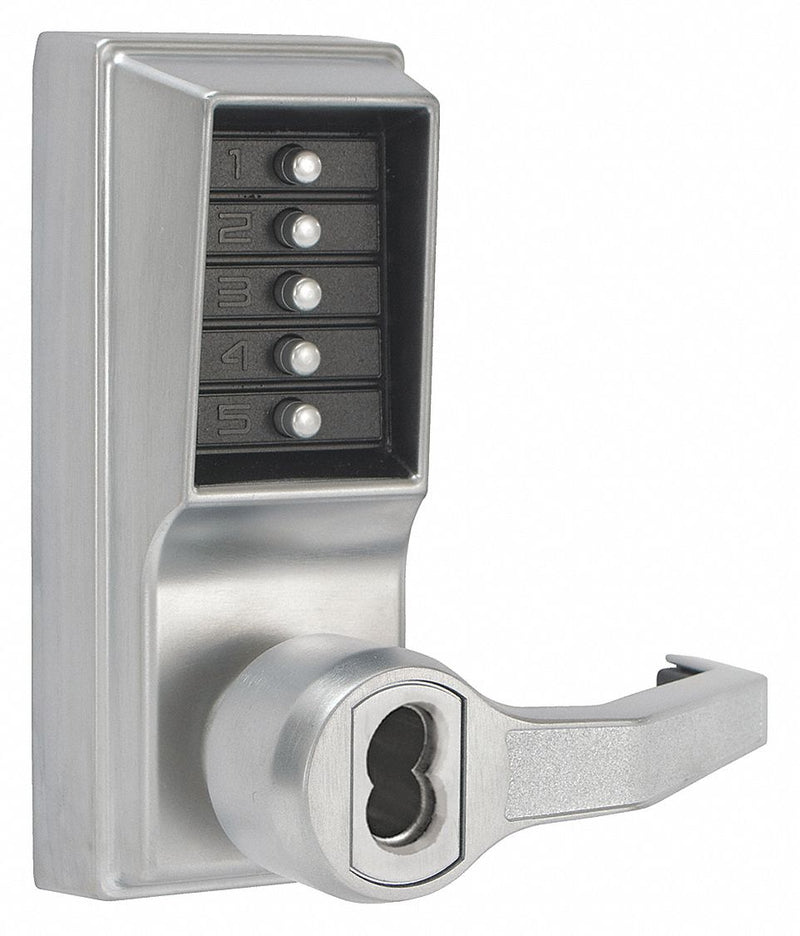

Simplex LR1021M-26D-41 Mechanical Push Button Lockset, ADA Compliant, Satin Chrome
Original price
$833.73
-
Original price
$833.73
Original price
$833.73
$833.73
-
$833.73
Current price
$833.73
Mechanical Push Button Lockset, Handle Type Lever, Function Entry with Key Override, Key Override Options LFIC Medeco/ASSA/Yale/Abloy (5 or 6-Pin length) Core Not Included, Hand Right, Finish Satin Chrome, Door Thickness 1-3/8 in to 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2 3/4 in, ADA Compliant Yes, 3 hr Fire Rated, Case Material Zinc, Series L1000, Latch Length 1/2 in, Max. User Codes 1, Standards UL/cUL Listed, Weather Resistant Yes, Includes Code Change Plug, Template
| For Door Thickness (In.) | 1-3/8" to 2-1/4" |
| Door Thickness | 1-3/8 in to 2-1/4 in |
| Latch Length | 1/2 in |
| Outside Width | 3 1/8 in |
| Inside Height | 9 in |
| Inside Width | 3 1/4 in |
| Manufacturers Warranty Length | 3 yr |
| Inside Depth | 2 3/8 in |
| Outside Height | 7 3/8 in |
| Outside Depth | 3 13/16 in |
| Overall Height | 9 in |
| Overall Width | 3 1/8 in |
| Latch Front Size | 1/2" |
| Overall Depth | 3 13/16 in |
| Door Thickness - Maximum | 2 1/4 in |
| Door Thickness - Minimum | 1 3/8 in |
| Finish | Satin Chrome |
| Material | Zinc |
| For Use With | Medeco R/C |
| Number of Keys | 5 |
| Max. User Codes | 1 |
| Backset | 2 3/4 in |
| Weather Resistant | Yes |
| Key Override Options | LFIC Medeco/ASSA/Yale/Abloy (5 or 6-Pin length) Core Not Included |
| Function | Entry with Key Override |
| Fire Rated | 3 hr |
| Standards | UL/cUL Listed |
| Hand | Right |
| Case Material | Zinc |
| Handle Type | Lever |
| Series | L1000 |
| ADA Compliant | Yes |
| Electrical/Mechanical | Mechanical |
| Includes | Code Change Plug, Template |
| Keypad | 5 Button, Vandal Resistant |
| Operation Type | Push Button |
| Type | Mechanical |
| Product Type | Mechanical Push Button Lockset |
| Operating Temp. Range | -31 Degrees to 151 Degrees F |
| Max. Proximity Range | At Lock |
| Fire Rating | 3 hr |
| User Codes - Maximum | 1 |
| Lockset Handle Type | Lever |
| Includes Core | Core Not Included |
| Number of Keypad Buttons | 5 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Mortise/Cylindrical | Cylindrical |
| Lockset Type | Mechanical |
| Lockset Function | Entrance |
| Hand Orientation | Right-Handed |
| Includes Hardware | Hardware Included |
| Country of Origin | Mexico |
