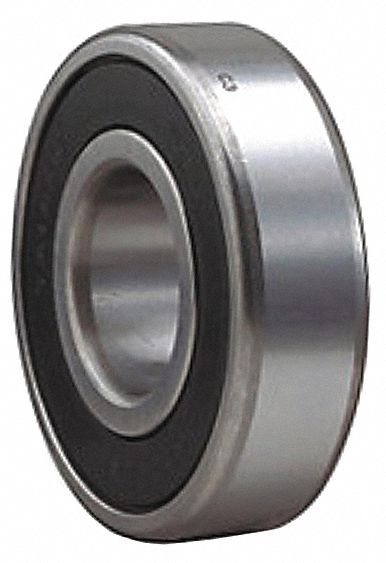

SKF 6015 2RS JEM Radial Ball Bearing, 6015, Dbl Sealed, Contact Seal, 75 mm Bore, 115 mm OD, 20 mm Wd
UPC: | Harmonization / Schedule B : 8482.10.5044
Country of Origin: | Shipping Weight: 1.5 lbs
Original price
$601.11
-
Original price
$601.11
Original price
$601.11
$601.11
-
$601.11
Current price
$601.11
Radial Ball Bearing, Bearing Industry Number 6015, Bore Diameter 75 mm, Closure Double Sealed, Outer Ring Width 20 mm, Outside Diameter 115 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Bore Diameter Tolerance +0/-0.015 mm, Dynamic Radial Load Capacity 9,350 lbf, Includes Retaining Ring No, Lubricant Material GJN Grease
| Bore Dia. | 75 mm |
|---|---|
| Outside Dia. | 115 mm |
| Width | 20 mm |
| Bore Diameter | 75 mm |
| Outside Diameter | 115 mm |
| Outer Ring Width | 20 mm |
| Outside Dia. Tolerance | +0/-.015mm |
| Bore Diameter Tolerance | +0/-0.015 mm |
| Outside Diameter Tolerance | +0/-0.015 mm |
| Bearing Type | Ball |
| Single Row/Double Row | Single Row |
| System of Measurement | Metric |
| Seal/Shield Type | Double Sealed |
| Bearing Industry Number | 6015 |
| ABEC Rating | 1 |
| Closure | Double Sealed |
| Number of Rows | 1 |
| Ring Material | Alloy Steel |
| Ball Material | Alloy Steel |
| Cage Material | Steel |
| Bearing Material | Steel |
| Max. RPM | 3,400 RPM |
| Seal Material | Synthetic Rubber |
| Static Load Capacity | 7,530 lb |
| Temp. Range | -40 Degrees to 212 Degrees F |
| Bore Tolerance | +0/-.015mm |
| Lubrication | GJN Grease |
| Industry Number | 6015-2RSJEM |
| ABEC Tolerance | 1 |
| Dynamic Load Capacity | 9,350 lb |
| Max. Load Axial | 3,765 lb |
| Ring Material Grade | 100Cr6 |
| Maximum Temperature | 212 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Includes Retaining Ring | No |
| Maximum Speed | 3,400 RPM |
| Maximum Axial Load | 3,765 lbf |
| Seal Type | Contact |
| Retaining Ring Groove | No |
| Dynamic Radial Load Capacity | 9,350 lbf |
| Static Radial Load Capacity | 7,530 lbf |
| Lubricant Material | GJN Grease |
| Country of Origin | Multiple |
